Removal Procedure

  1. Remove the front fascia. Refer to Fascia Replacement - Front Bumper in Bumpers.
  2. Remove the inlet duct assembly attachment bolts (1).
  3. Remove the inlet duct assembly (2).

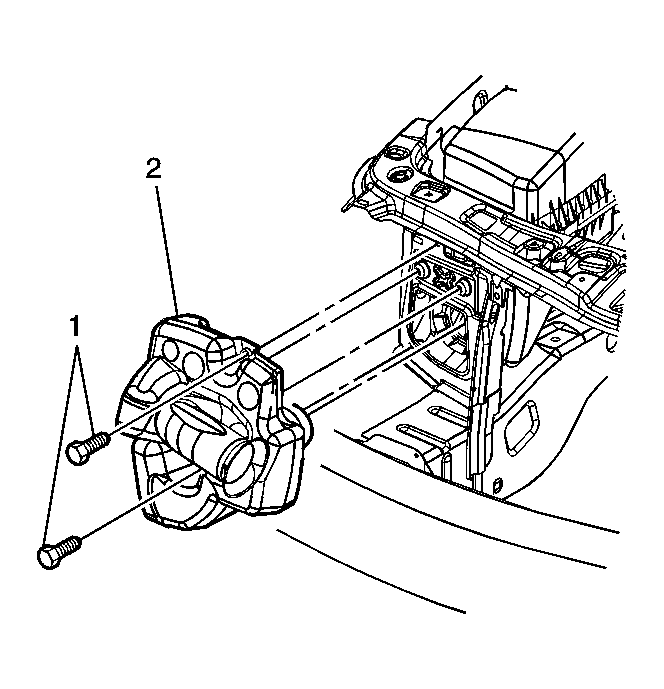

    Fig 1: View Of Inlet Duct Assembly
    GM1226391Courtesy of GENERAL MOTORS CORP.
