ABS Schematics

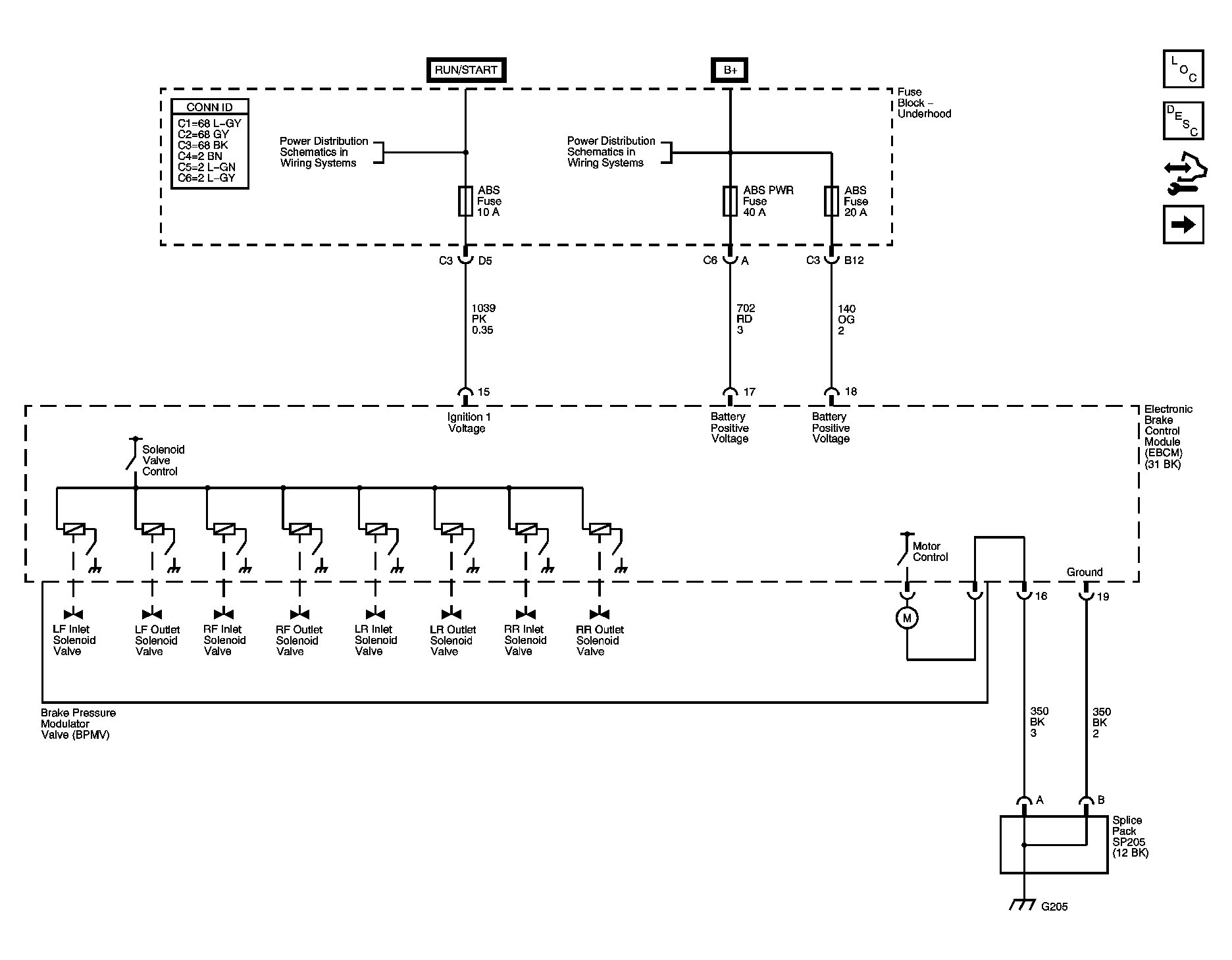

Fig 1: Power and Ground
GM1503635Courtesy of GENERAL MOTORS CORP.

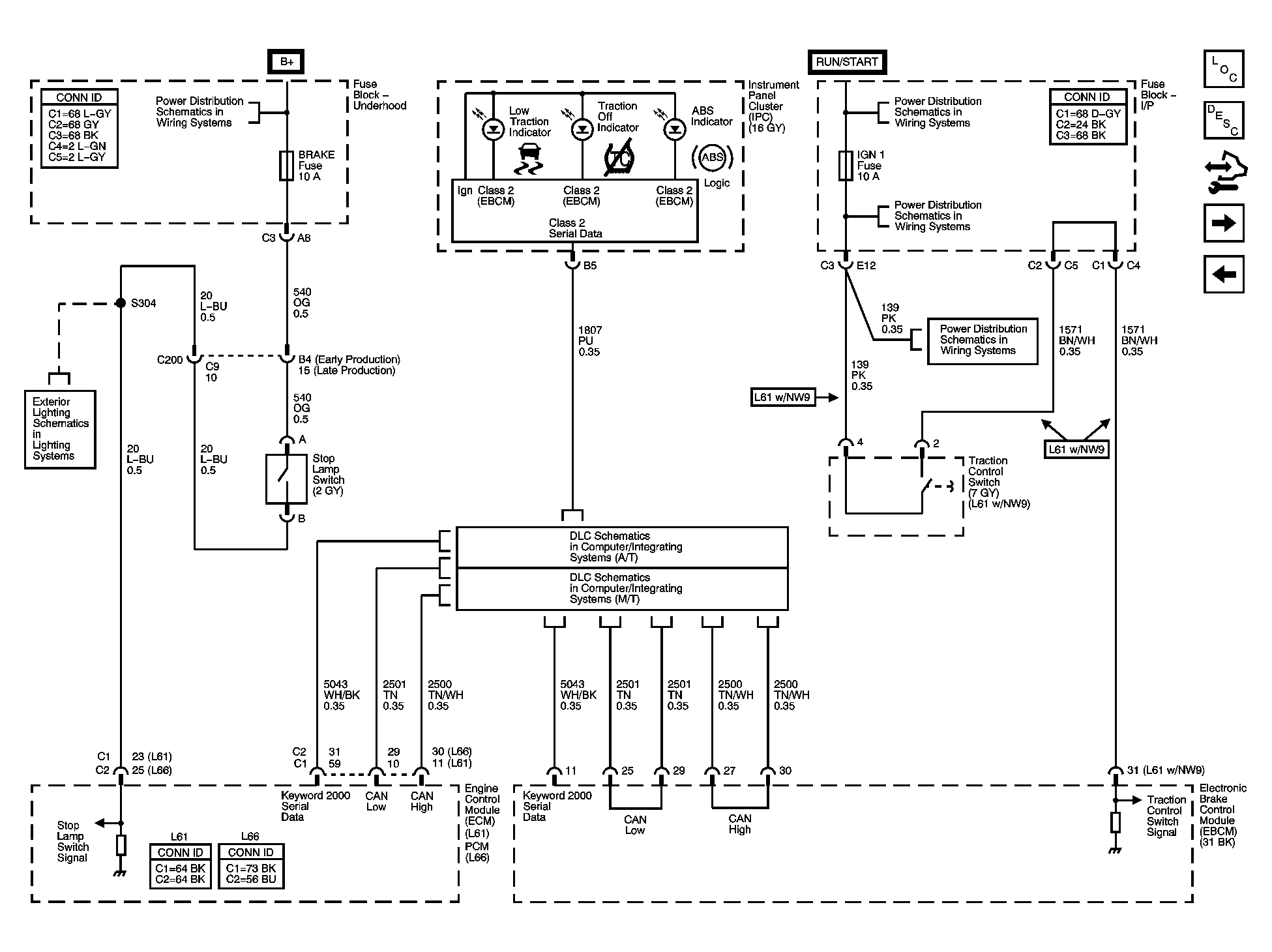

Fig 2: TC Switch, Indicators, and Stop Lamp Switch
GM1503637Courtesy of GENERAL MOTORS CORP.

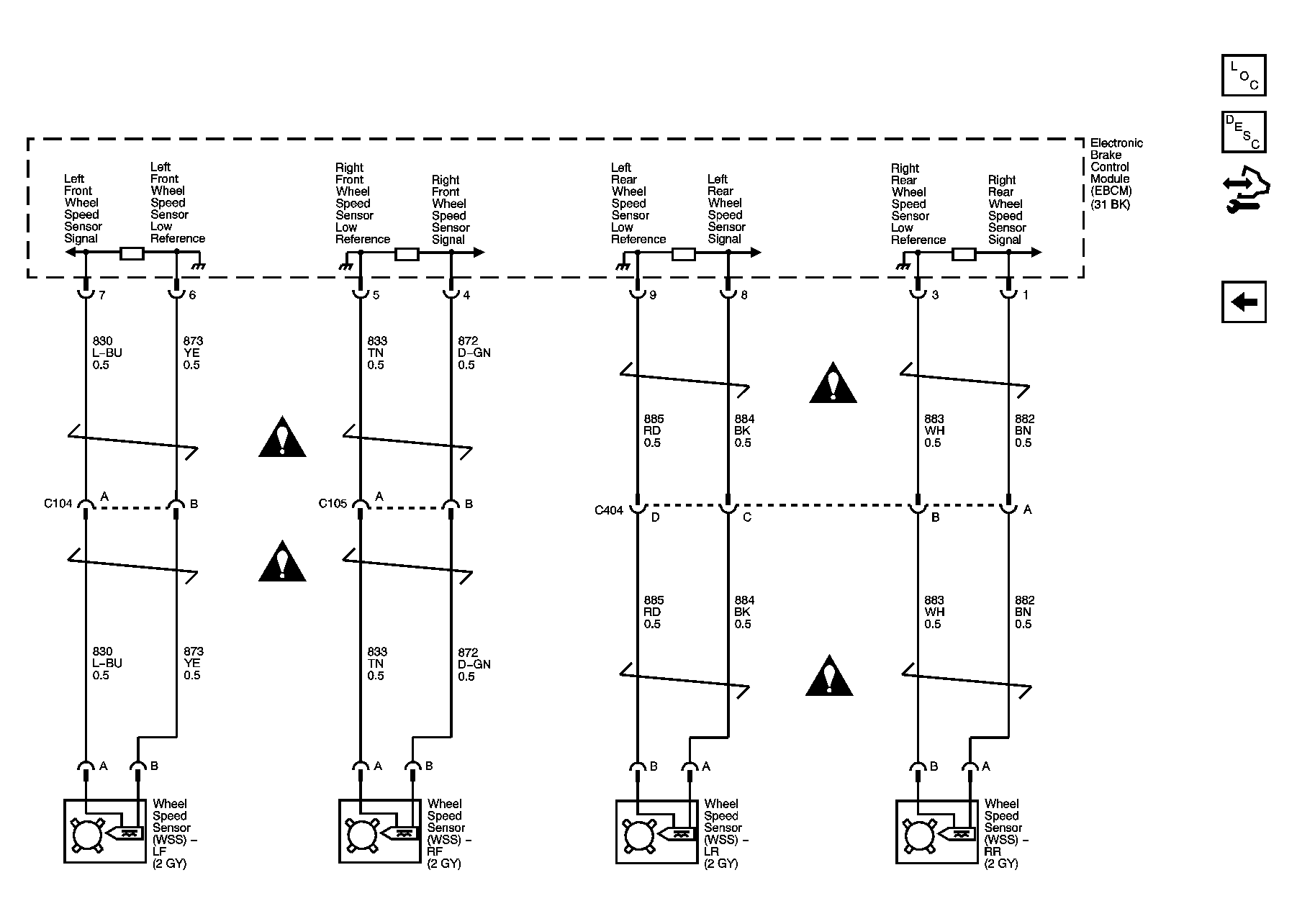

Fig 3: Wheel Speed Sensors
GM1530106Courtesy of GENERAL MOTORS CORP.
