Automatic Level Control Suspension Schematics

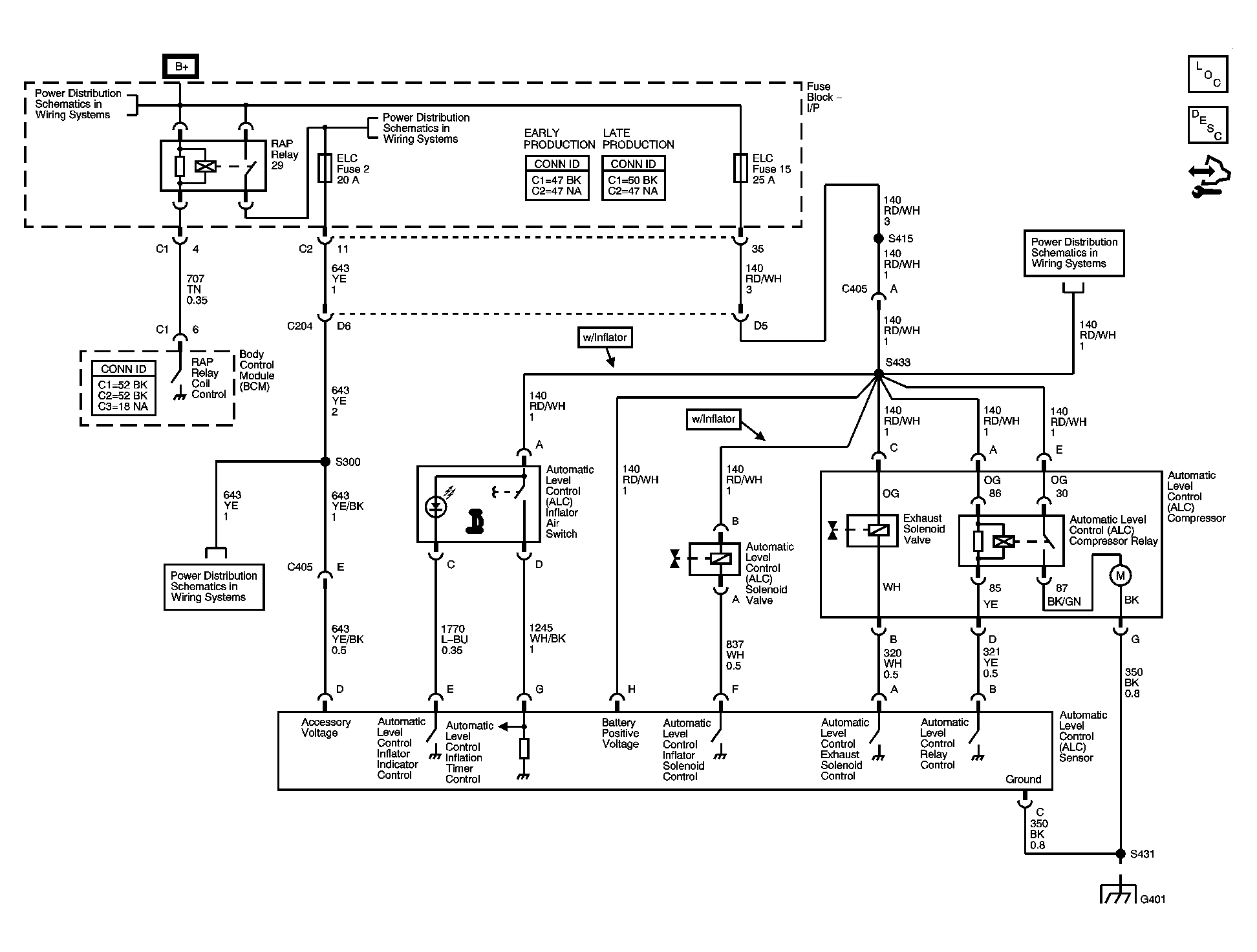

Fig 1: Automatic Level Control Suspension Schematic
GM1486241Courtesy of GENERAL MOTORS CORP.
