Interior Lights Schematics

WARNING: This page is about a different car, the 2005 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

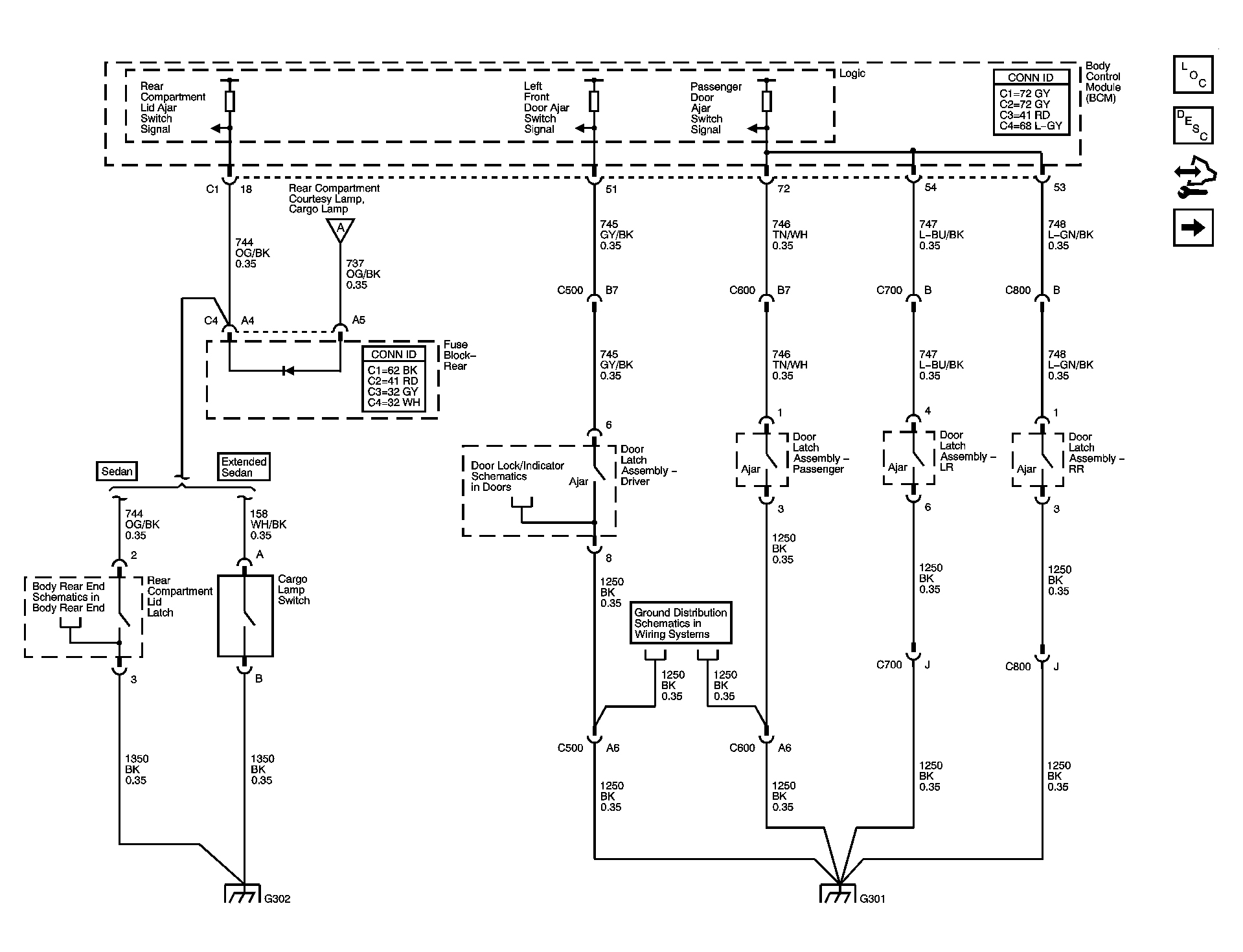

Fig 1: Inputs
GM1501074Courtesy of GENERAL MOTORS CORP.

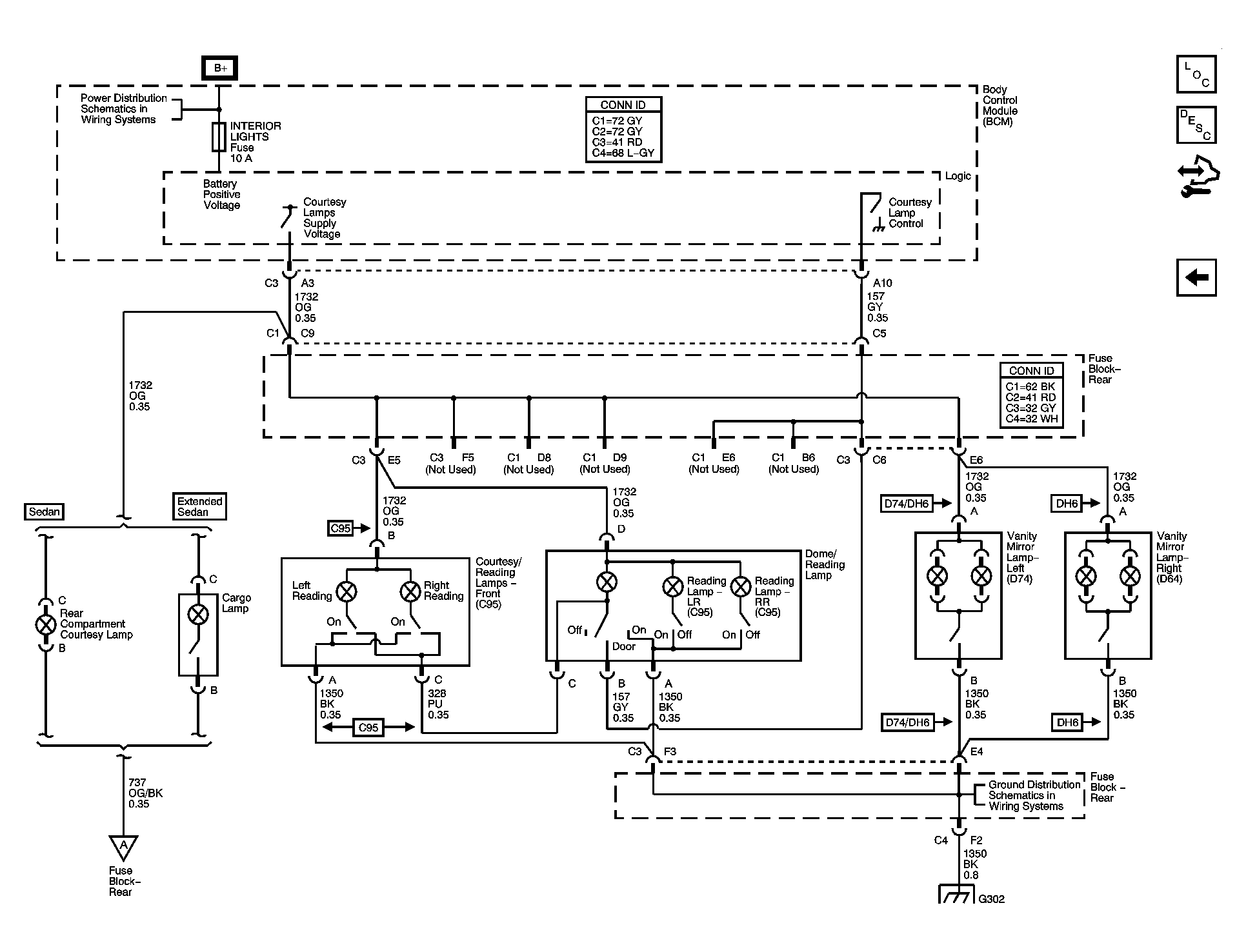

Fig 2: Outputs
GM1501075Courtesy of GENERAL MOTORS CORP.
