Splice Pack SP105 Connector End View

Splice Pack SP105 Connector End View

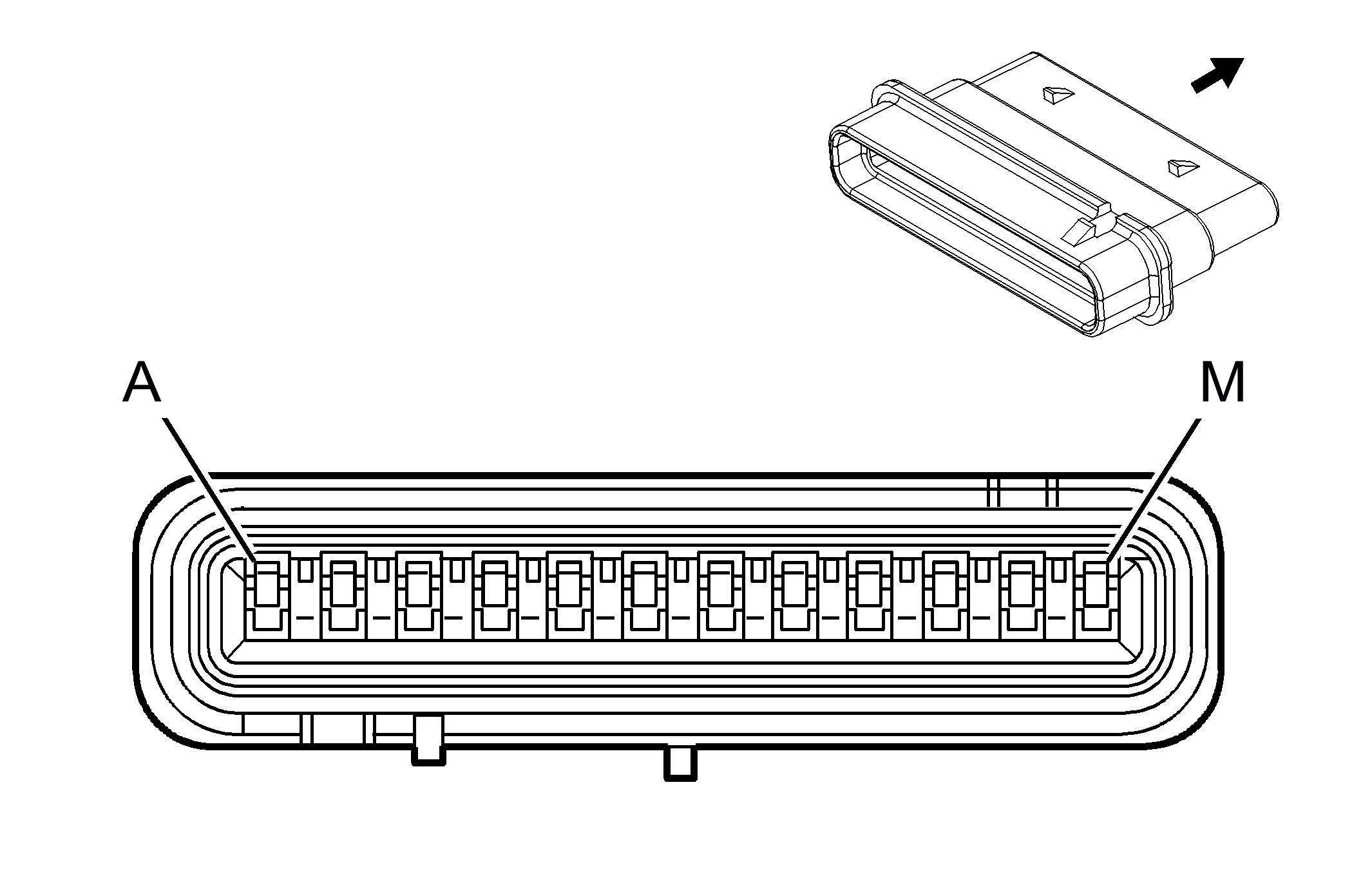

GM903281Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12191905
  • 12-Way F Metri-Pack 280 Splice Saver (BK)
Pin Wire Color Circuit No. Function
A GY 416 5-Volt Reference
B GY 416 5-Volt Reference
C GY 416 5-Volt Reference
D-E - - Not Used
F PU/WH 652 Low Reference
G PU/WH 652 Low Reference
H PU/WH 652 Low Reference
J PU/WH 652 Low Reference
K PU/WH 652 Low Reference
L PU/WH 652 Low Reference
M PU/WH 652 Low Reference
