Installation Procedure

  1. Position the console between the rear seat cushions.
  2. Pull on the console to install the console on the wire frame.
  3. Install the rear seat cushion. Refer to Seat Cushion Replacement - Rear (Coupe)  or Seat Cushion Replacement - Rear (Sedan) .

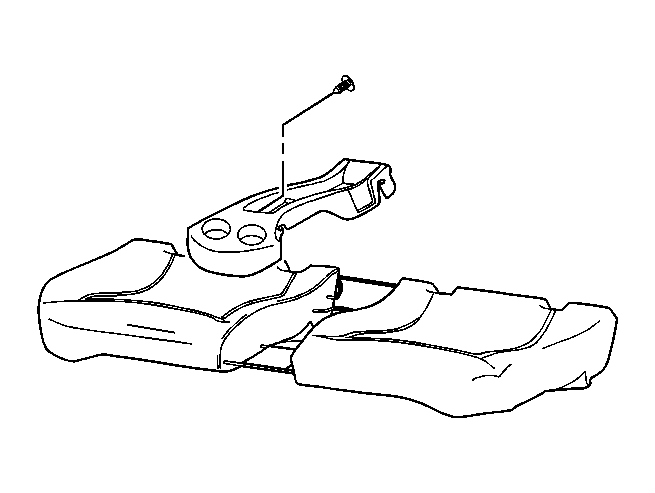

    4. Fig 1: View Of Rear Seat Center Console
    GM891338Courtesy of GENERAL MOTORS CORP.
