Engine Mechanical Specifications

Engine Mechanical Specifications:

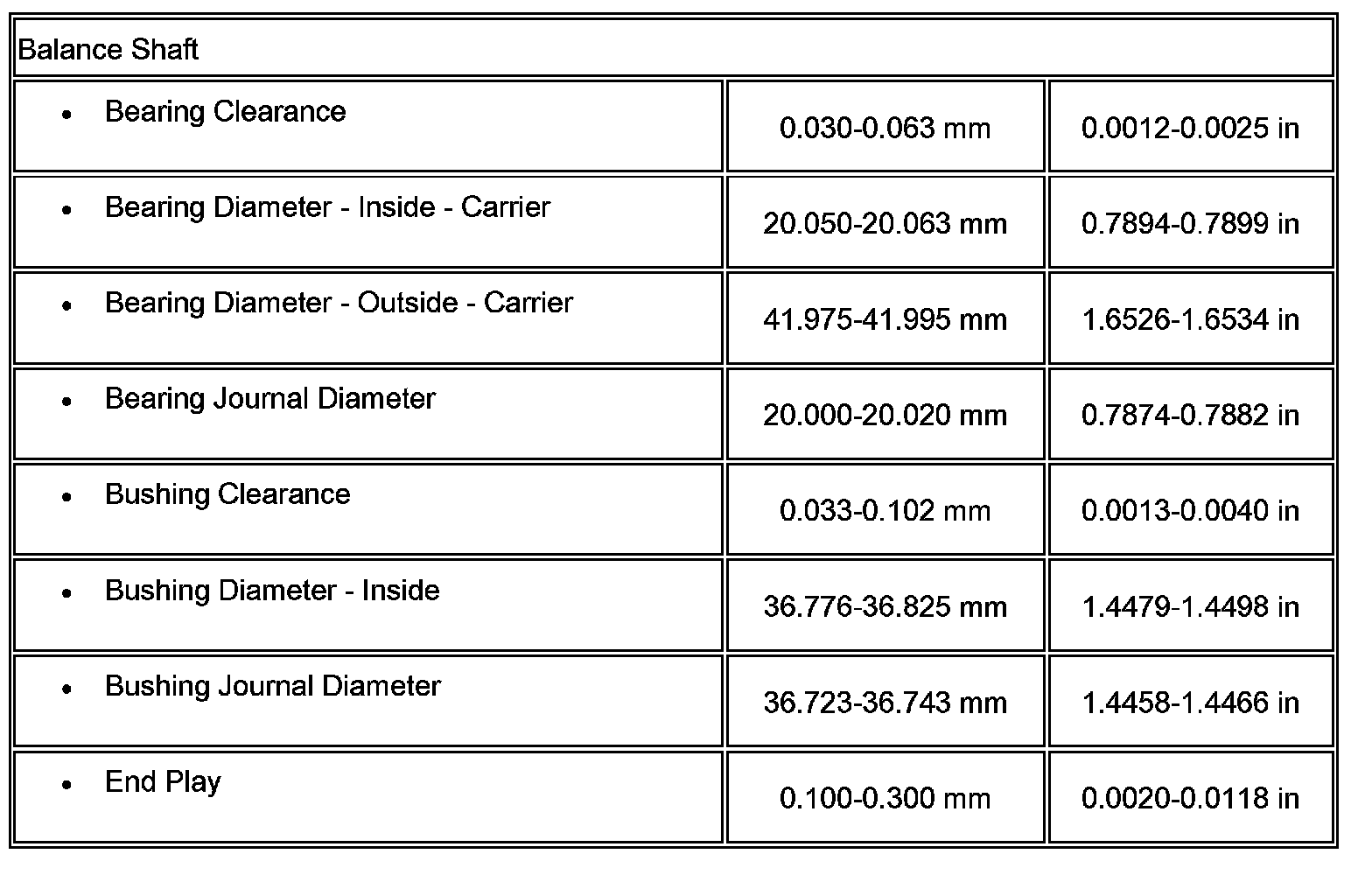

Balance Shaft:

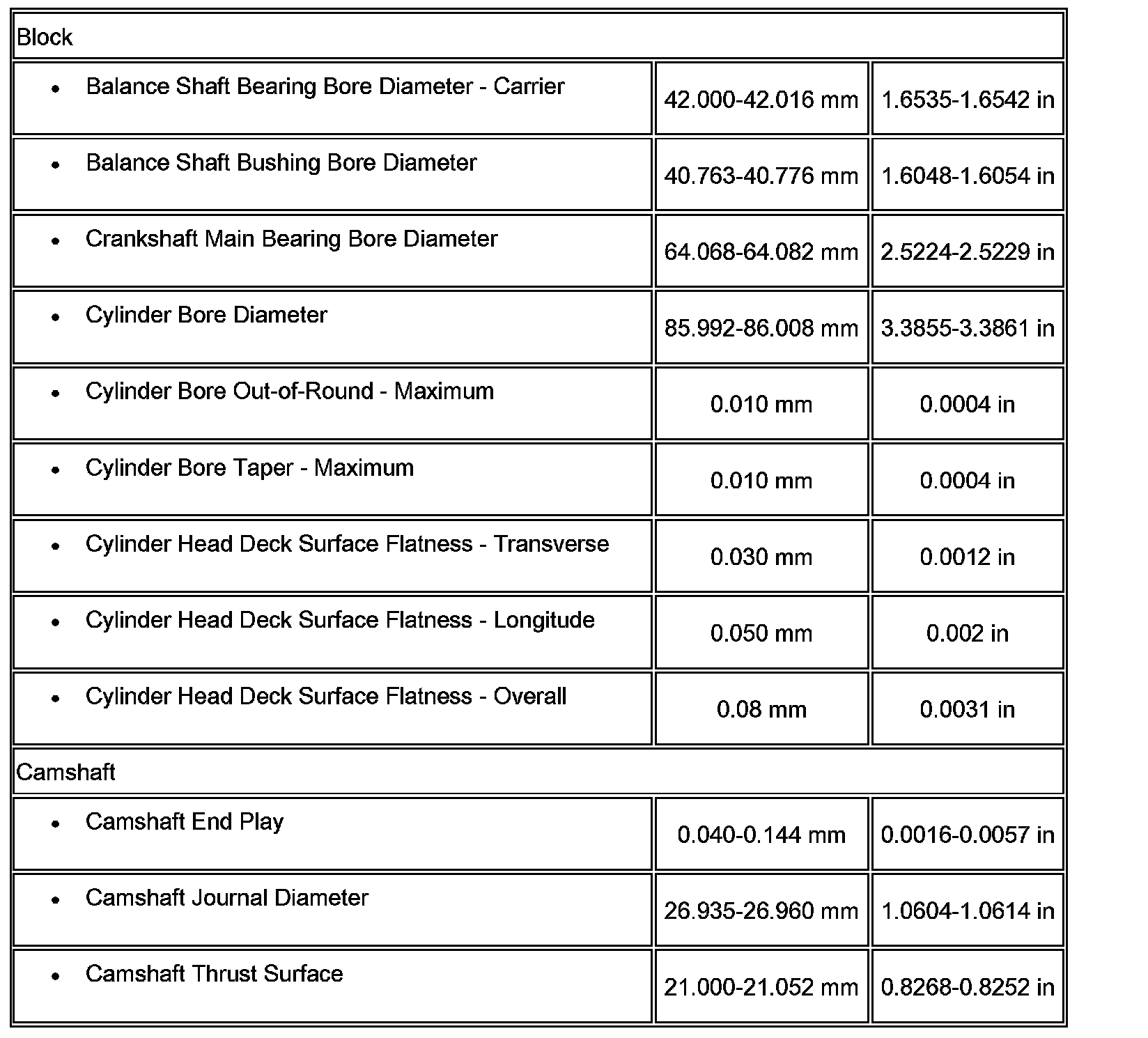

Block And Camshaft:

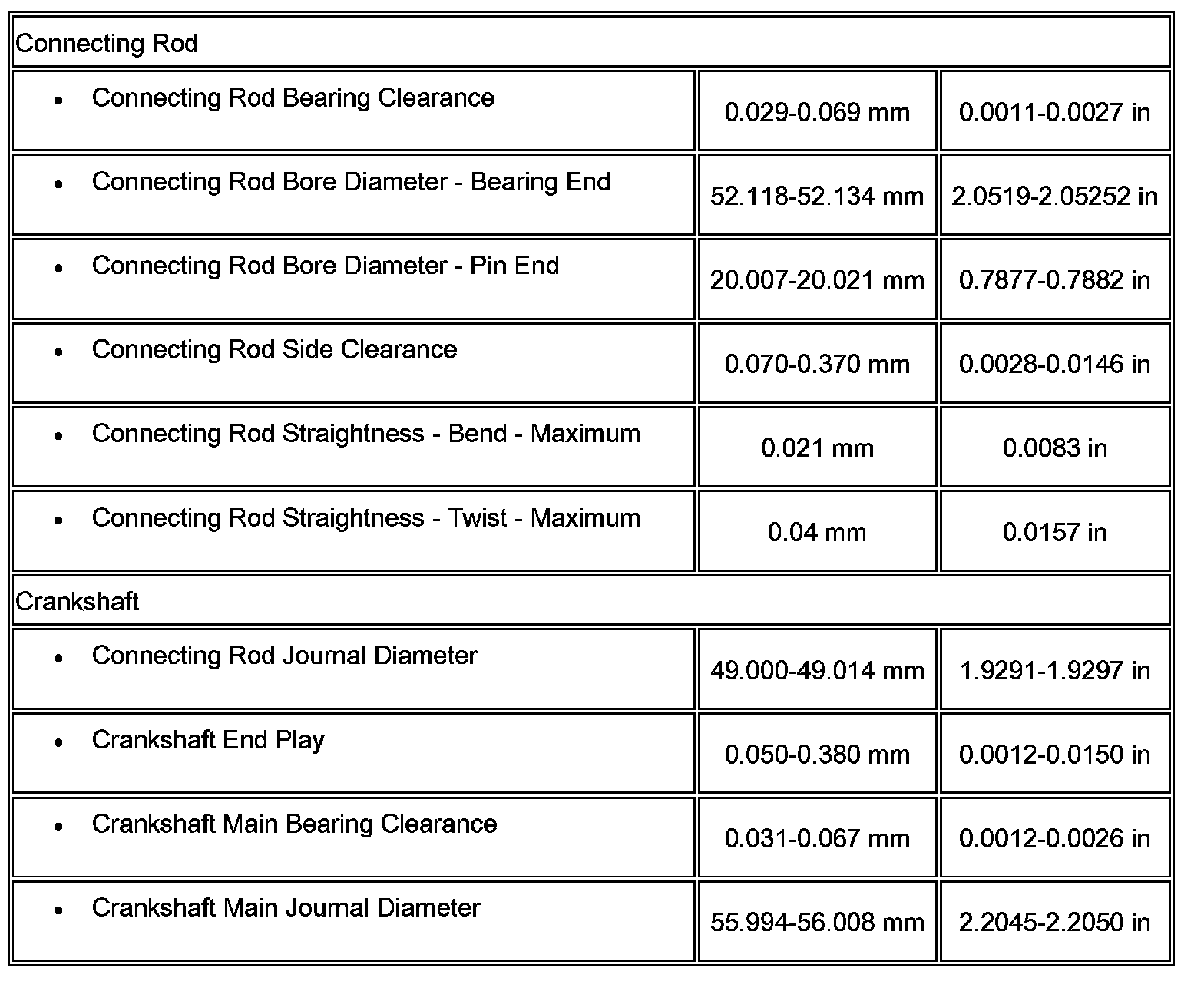

Connecting Rod And Crankshaft:

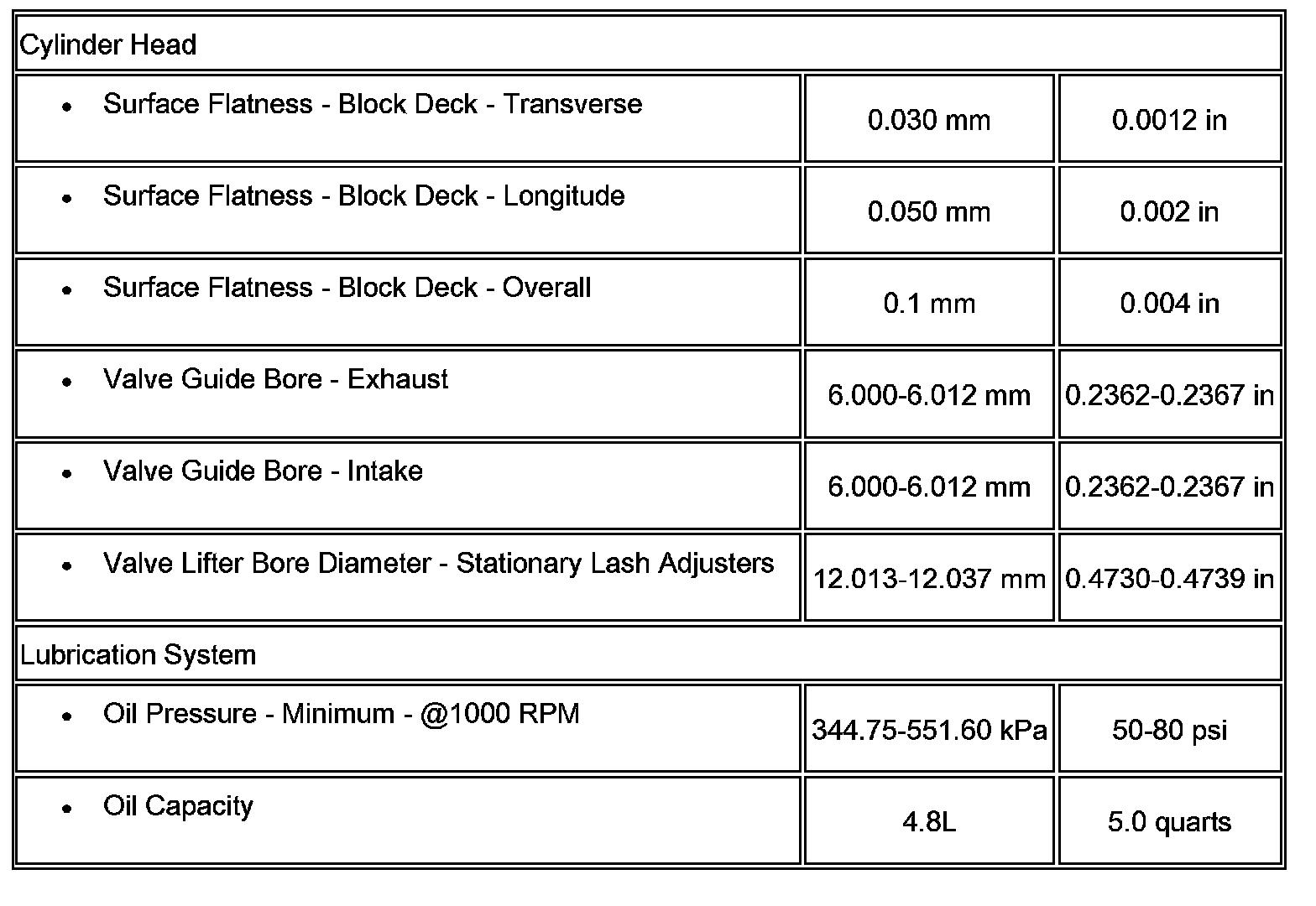

Cylinder Head And Lubrication System:

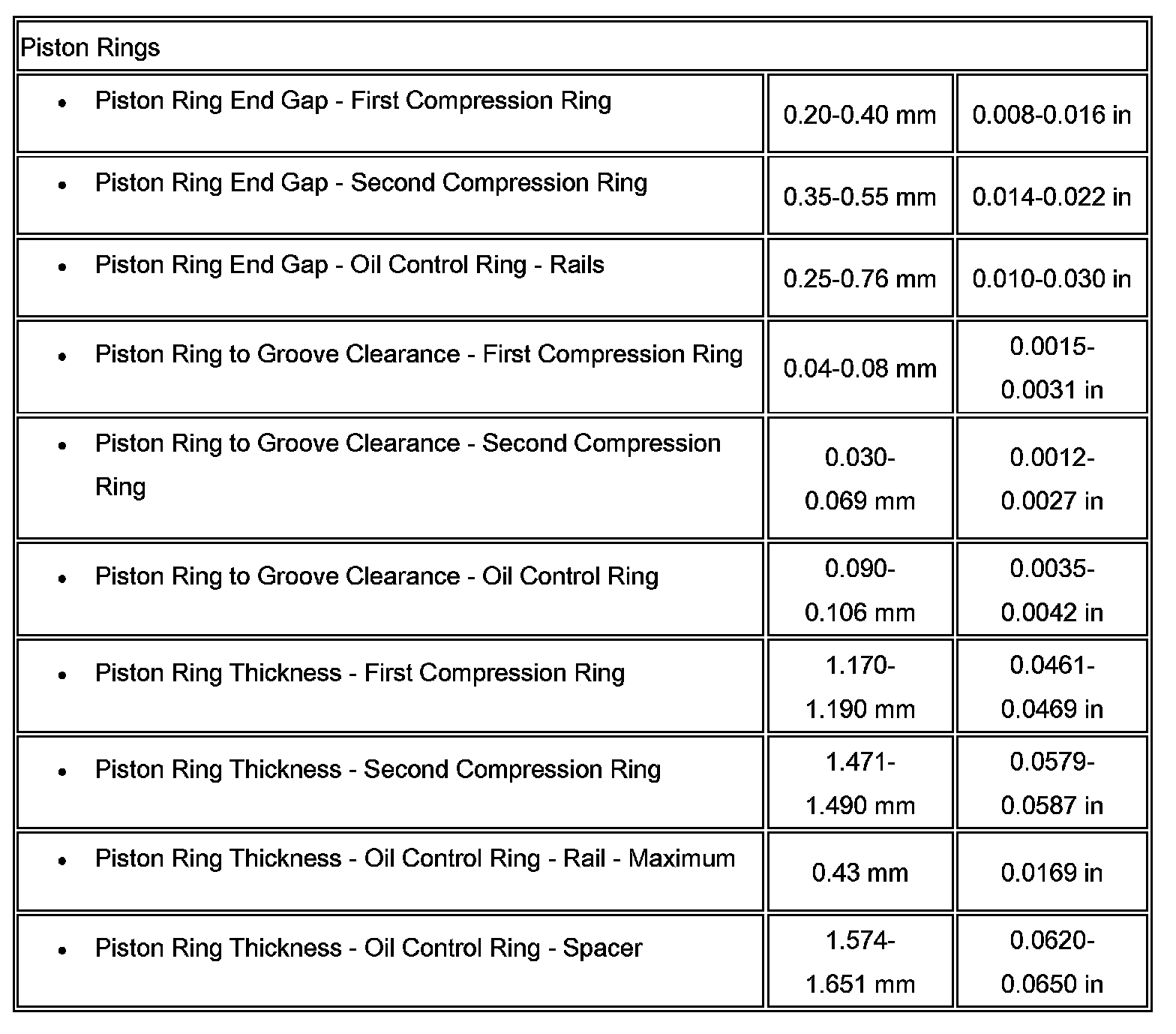

Piston Rings:

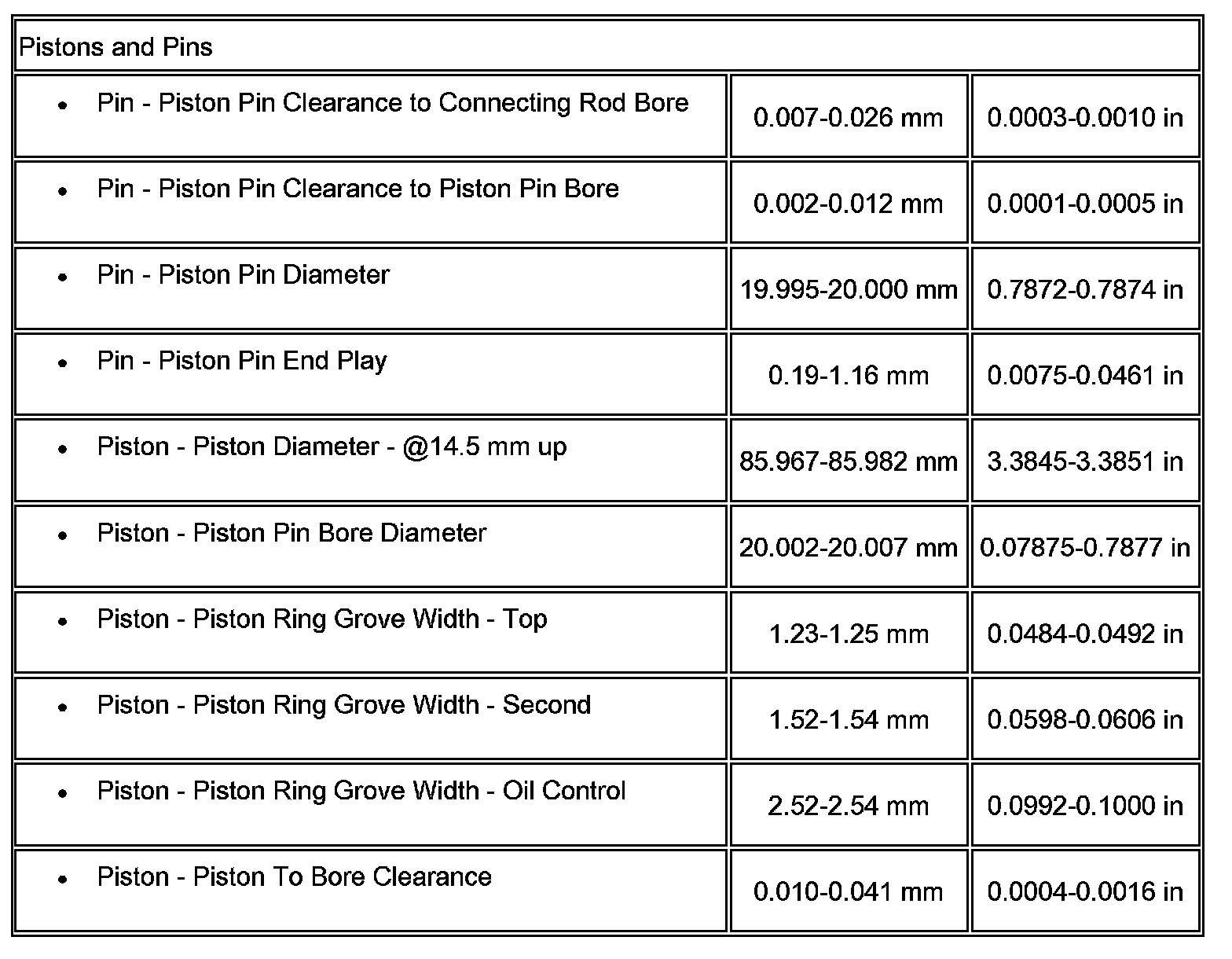

Pistons & Pins:

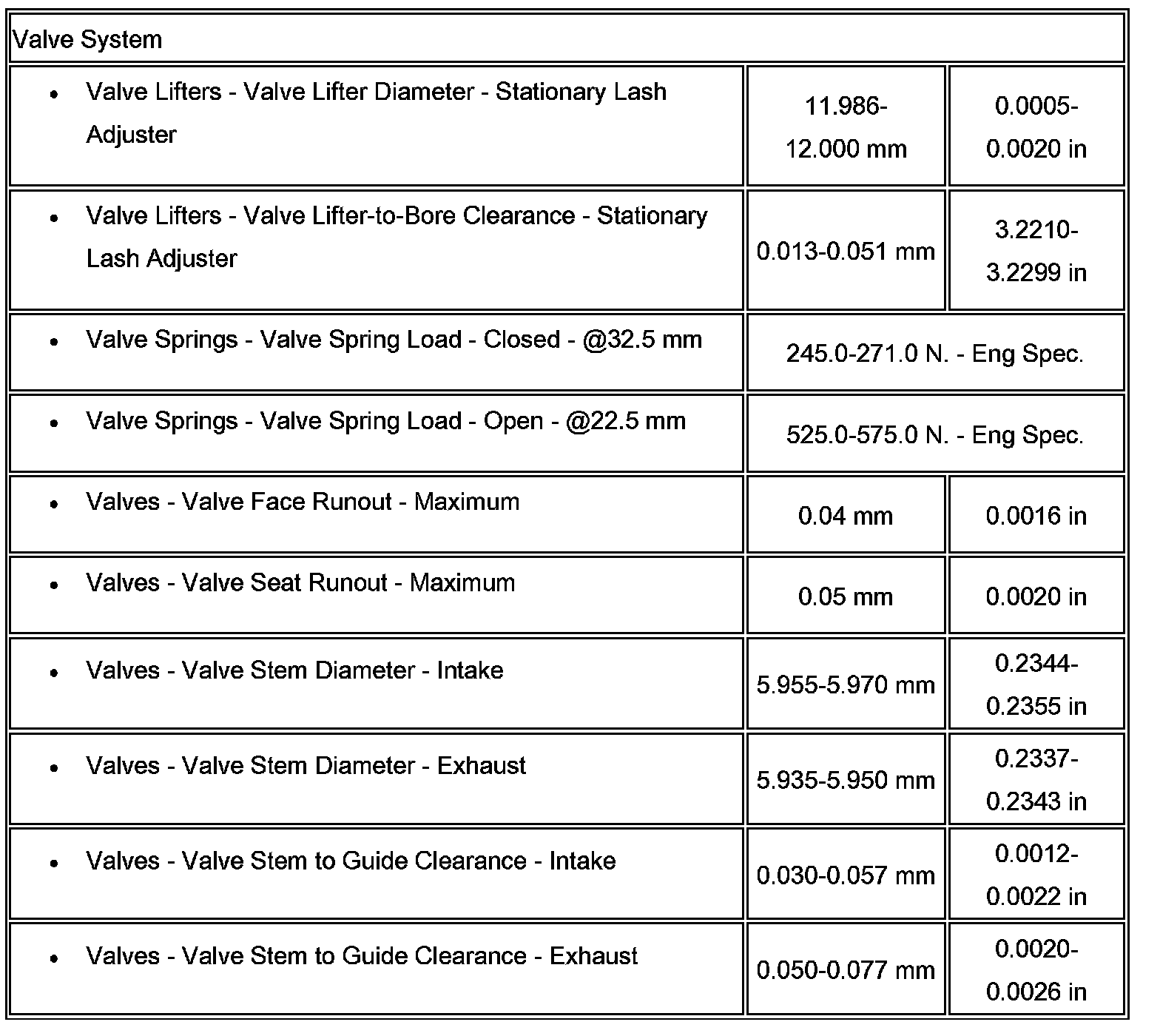

Valve System:
