Transmission Control Systems

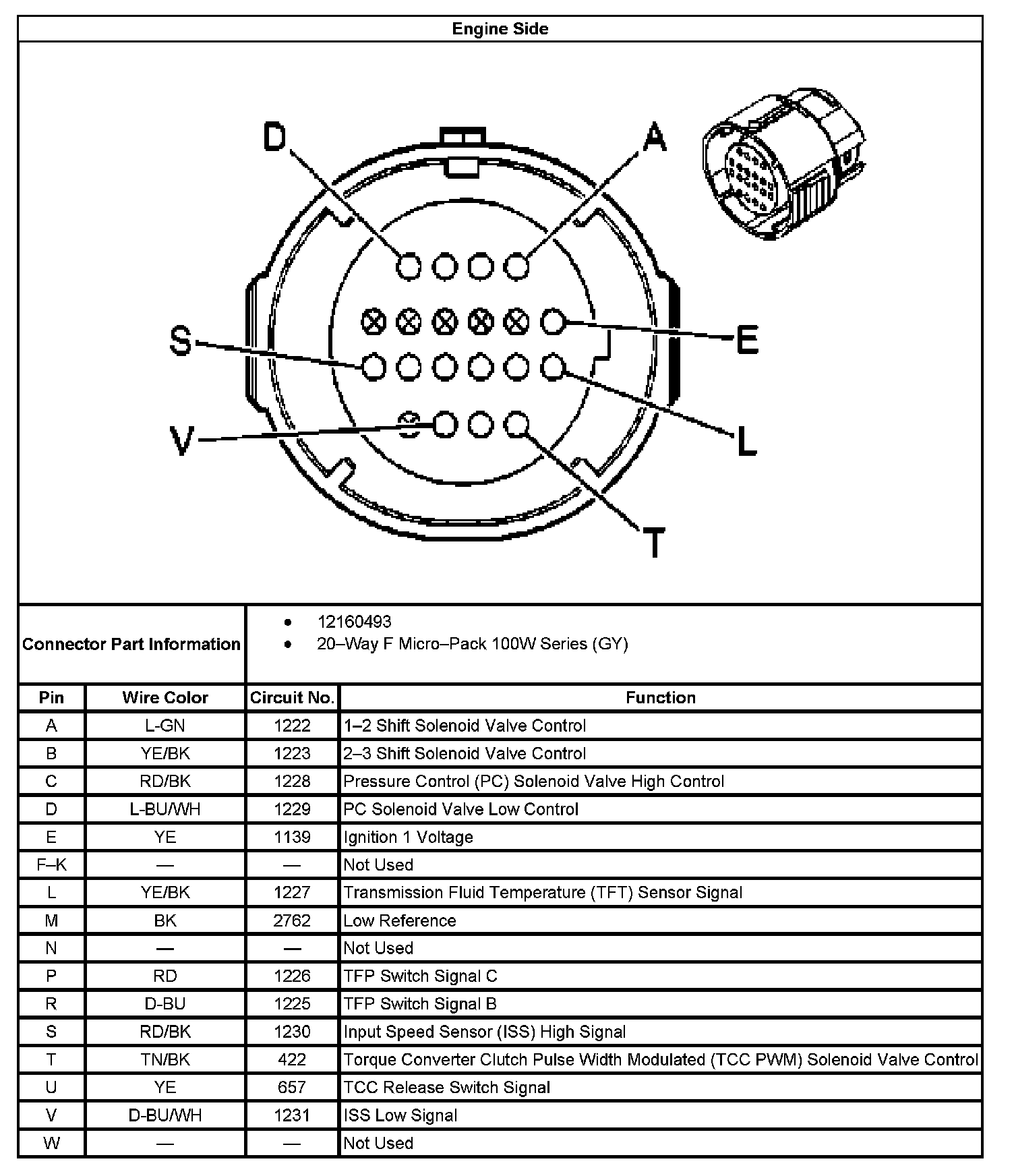

Automatic Transmission Inline 20-Way Connector End View:

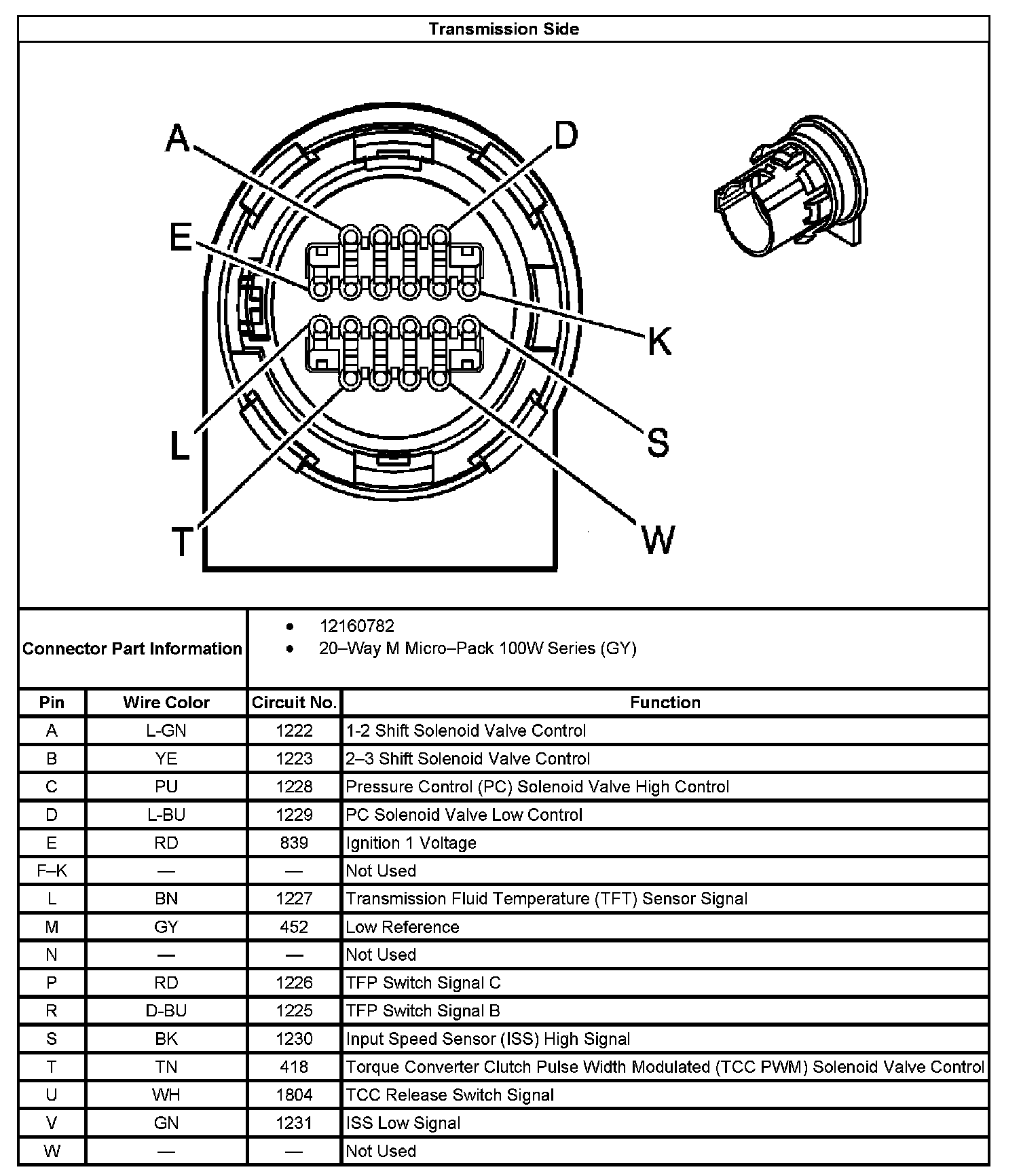

Transmission Side:
