Intake Manifold and Components

Intake Manifold and Components

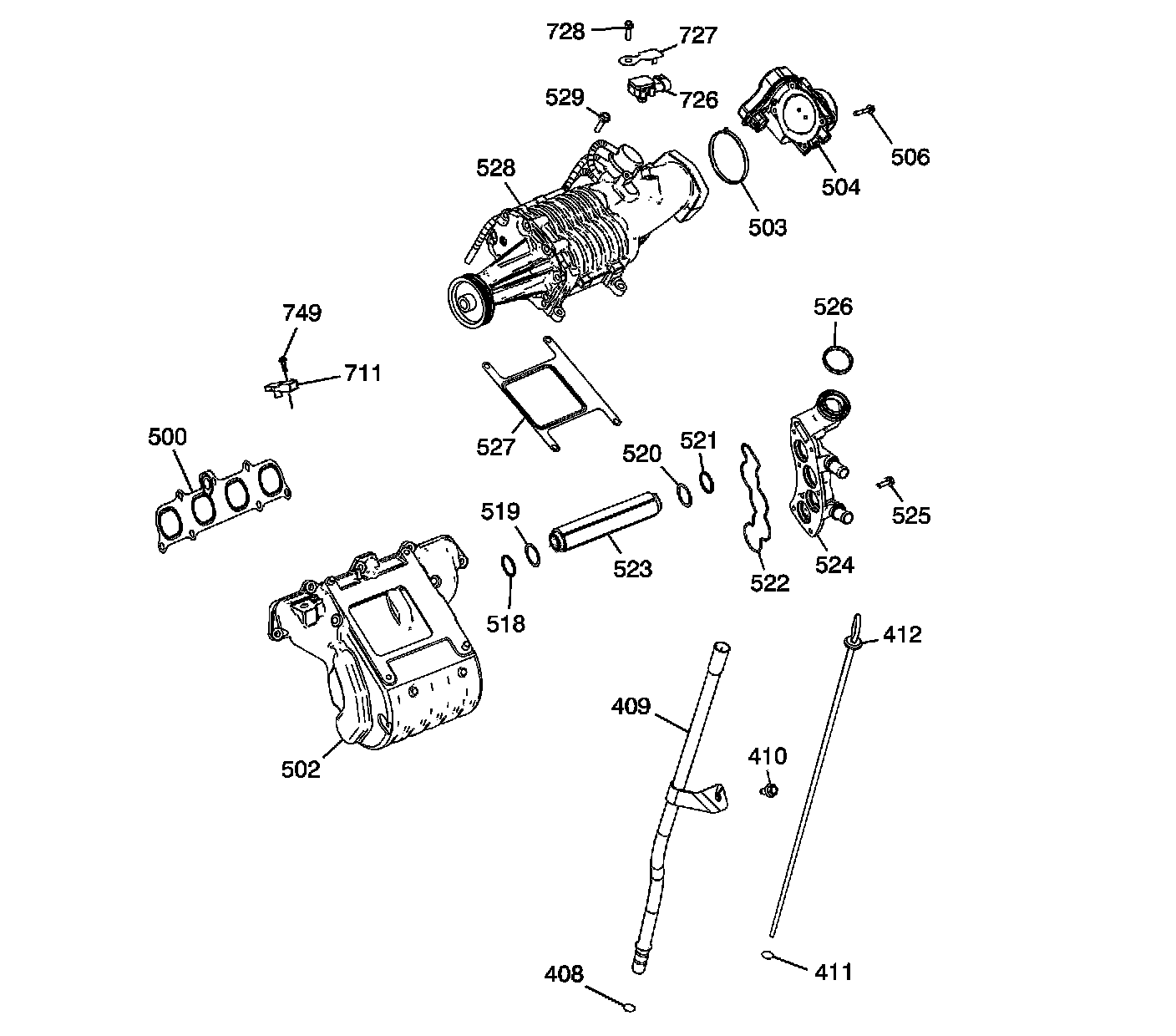

Intake Manifold and Components:

408 - Oil Indicator Tube O-ring
409 - Oil Indicator Tube
410 - Oil Indicator Tube Bolt
411 - Oil Indicator O-ring
412 - Oil Indicator
500 - Intake Manifold Gasket
502 - Intake Manifold
503 - Throttle Body Seal
504 - Throttle Body
506 - Throttle Body Bolt
518 - Intercooler O-ring
519 - Intercooler Washer
520 - Intercooler Washer
521 - Intercooler O-ring
522 - Intercooler Cover Gasket
523 - Intercooler
524 - Intercooler Cover
525 - Intercooler Cover Bolt
526 - Intercooler Cover Seal
527 - Supercharger Gasket
528 - Supercharger
529 - Supercharger Bolt
711 - Map Sensor
726 - Supercharger Inlet Pressure Sensor
727 - Map Sensor Bracket
728 - Map Sensor Bracket Bolt
749 - Map Sensor Bolt
