Engine Block and Components

Engine Block and Components

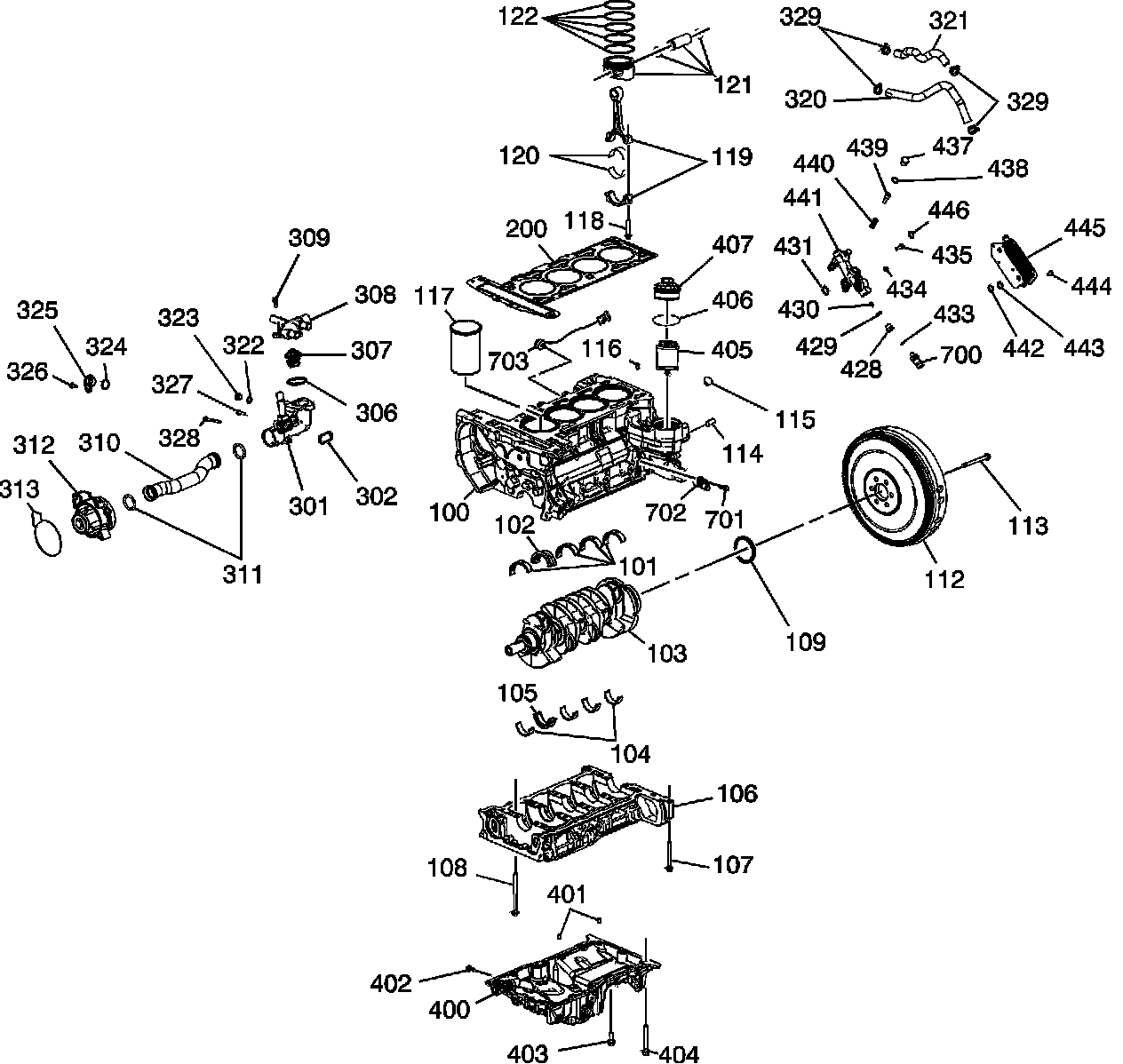

Engine Block and Components:

100 - Engine Block
101 - Crankshaft Bearing - Upper
102 - Crankshaft Thrust Bearing - Upper
103 - Crankshaft
104 - Crankshaft Bearing - Lower
105 - Crankshaft Thrust Bearing - Lower
106 - Lower Crankcase
107 - Lower Crankcase Perimeter Bolt
108 - Lower Crankcase Main Bearing Bolt
109 - Crankshaft Rear Seal
112 - Manual Transaxle Flywheel
113 - Manual Transaxle Flywheel Bolt
114 - Engine Block to Transaxle Alignment Pin
115 - Engine Block Gallery Plug
116 - Cylinder Head Alignment Pin
117 - Cylinder Bore Sleeve
118 - Connecting Rod Cap Bolt
119 - Connecting Rod
120 - Connecting Rod Bearing
121 - Piston Assembly
122 - Piston Ring Assembly
200 - Cylinder Head Gasket
301 - Thermostat Housing
302 - Thermostat Housing to Block Gasket
306 - Thermostat Gasket
307 - Thermostat
308 - Thermostat Housing Cap
309 - Thermostat Housing Cap Bolt
310 - Water Transfer Pipe
311 - Water Transfer Pipe O-ring Seals
312 - Water Pump
313 - Water Pump to Engine Block Seal
320 - Oil Cooler Line
321 - Oil Cooler Line
322 - Thermostat Housing Plug O-ring
323 - Thermostat Housing Plug
324 - Thermostat Housing Plug O-ring
325 - Thermostat Housing Plug
326 - Thermostat Housing Plug Bolt
327 - Thermostat Housing Short Bolt
328 - Thermostat Housing Long Bolt
329 - Oil Cooler Line Clamps
400 - Engine Oil Pan
401 - Engine Oil Pan Alignment Pins
402 - Engine Oil Pan Drain Plug
403 - Engine Oil Pan Bolt
404 - Engine Oil Pan Long Bolt
405 - Oil Filter
406 - Oil Filter Cap O-ring
407 - Oil Filter Cap
428 - Oil Pressure Sensor Fitting
429 - Oil Pressure Sensor Fitting O-ring
430 - Oil Pressure Sensor Plunger
431 - Oil Bypass Tube O-ring
433 - Oil Pressure Sensor O-ring
434 - Oil Bypass Tube Plug
435 - Oil Bypass Tube Bolt
436 - Oil Cooler O-ring
437 - Oil Bypass Tube Plug
438 - Oil Bypass Tube Plug O-ring
439 - Oil Bypass Tube Plunger
440 - Oil Bypass Tube Spring
441 - Oil Bypass Tube
442 - Oil Cooler O-ring
443 - Oil Cooler O-ring
444 - Oil Cooler Bolt
445 - Oil Cooler
446 - Oil Cooler O-ring
700 - Oil Pressure Switch
701 - Crankshaft Position Sensor Bolt
702 - Crankshaft Position Sensor
703 - Knock Sensor
