ABS Schematics

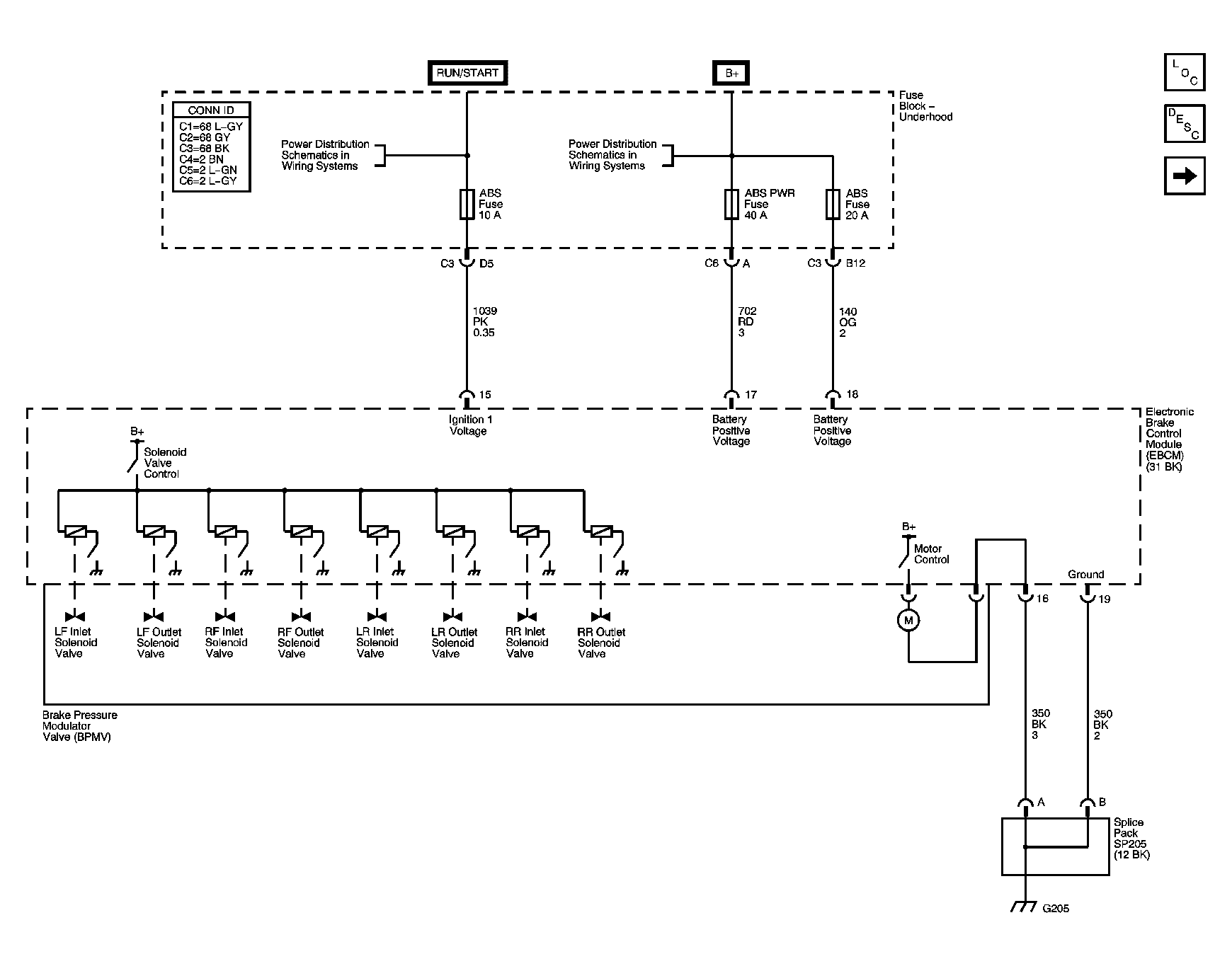

Fig 1: View Of EBCM Power and Ground Schematic

Courtesy of GENERAL MOTORS CORP.

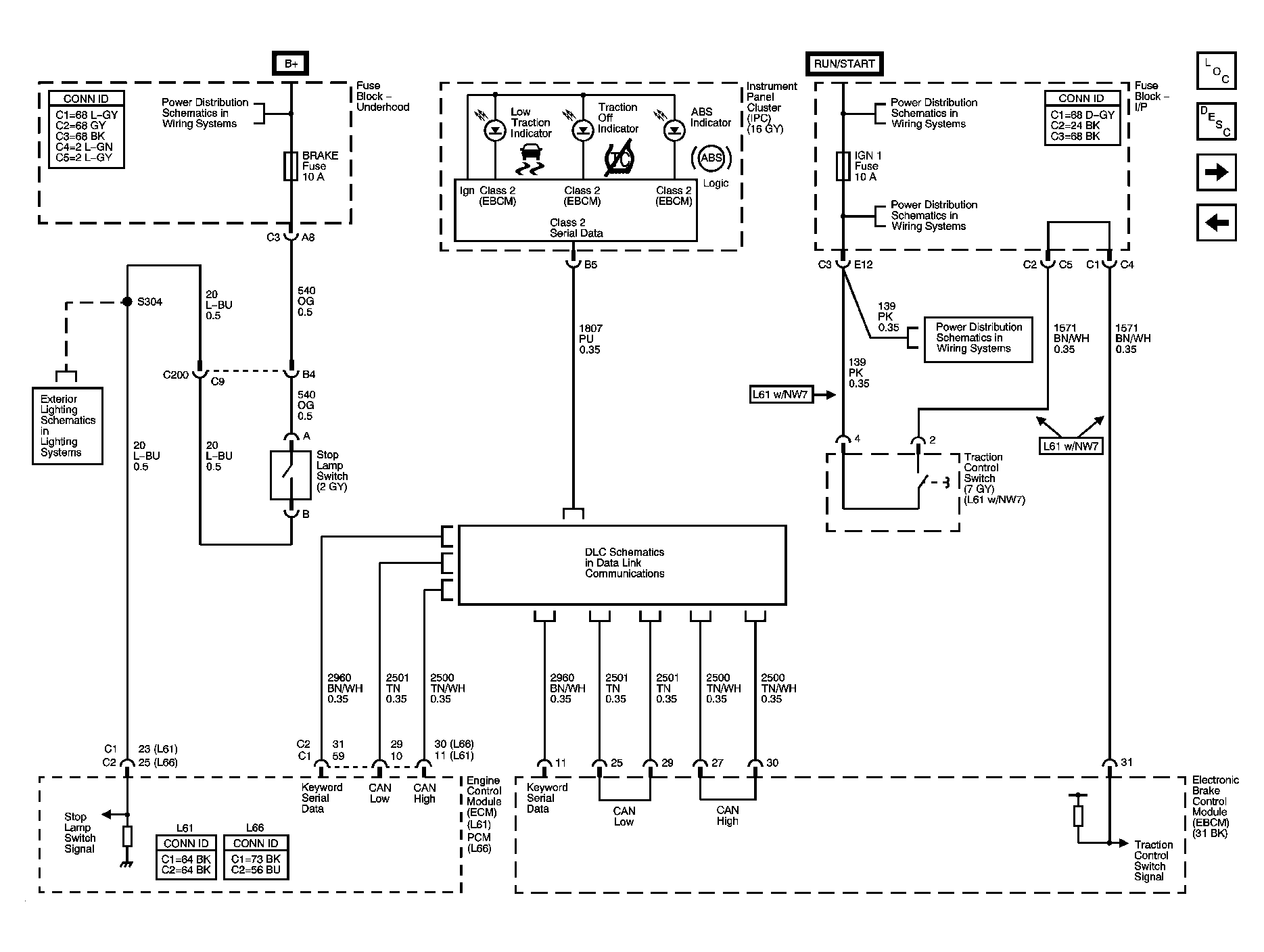

Fig 2: View Of Indicators and TC Switch Schematic

Courtesy of GENERAL MOTORS CORP.

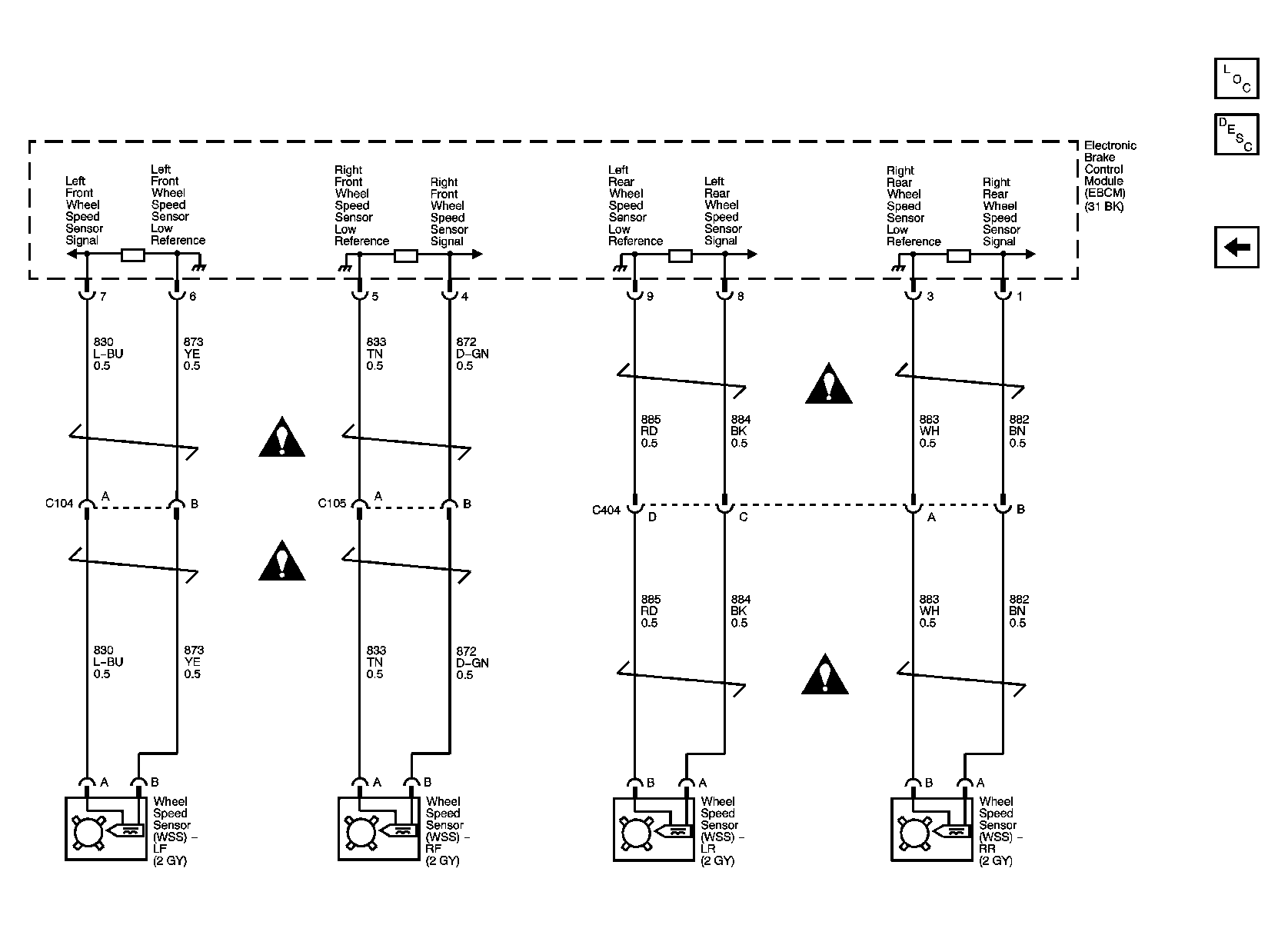

Fig 3: View Of Wheel Speed Sensors Schematic

Courtesy of GENERAL MOTORS CORP.
