Door Lock/Indicator Schematics

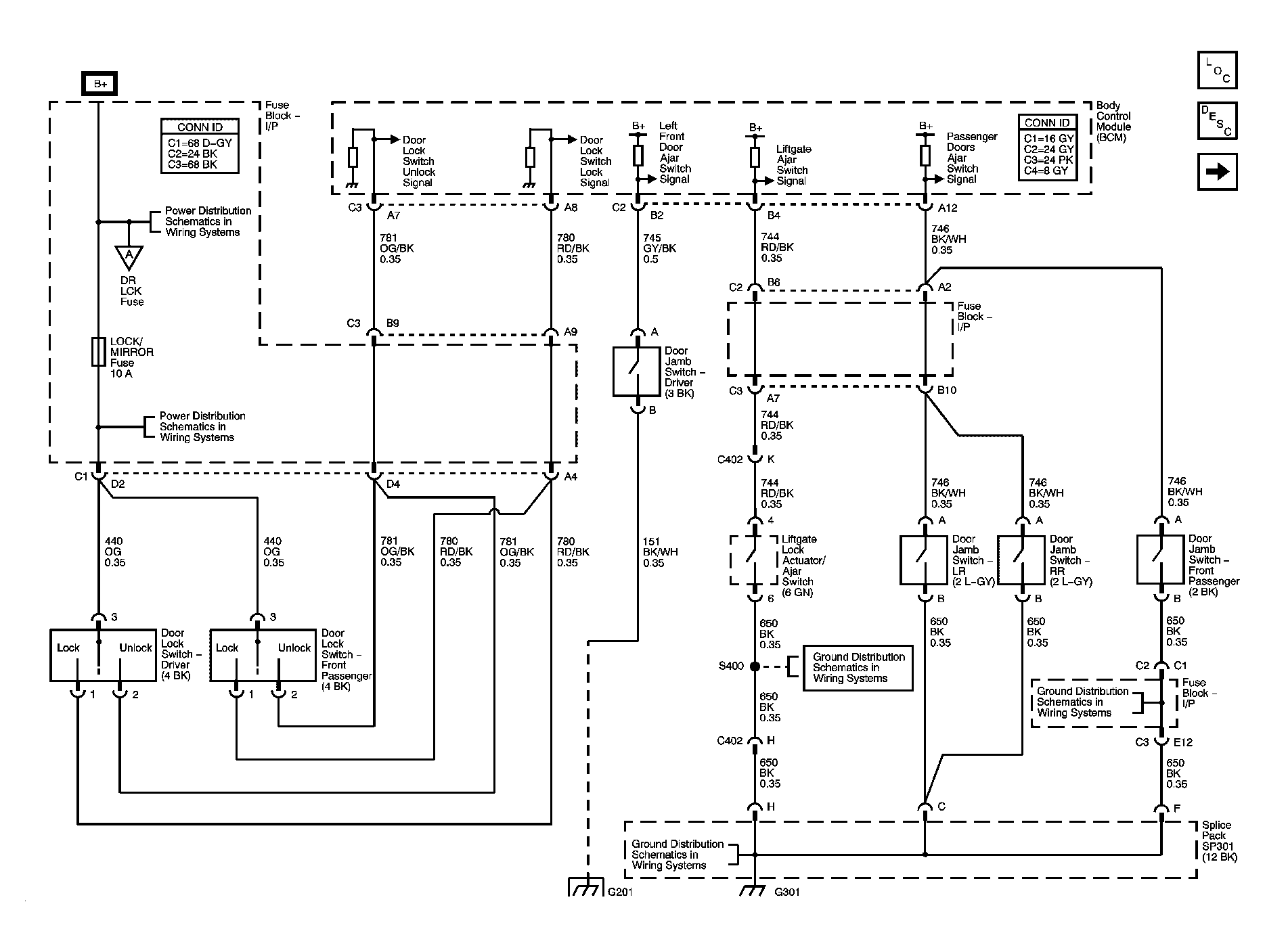

Fig 1: View Of Door Lock/Indicator Schematic
GM1218087Courtesy of GENERAL MOTORS CORP.

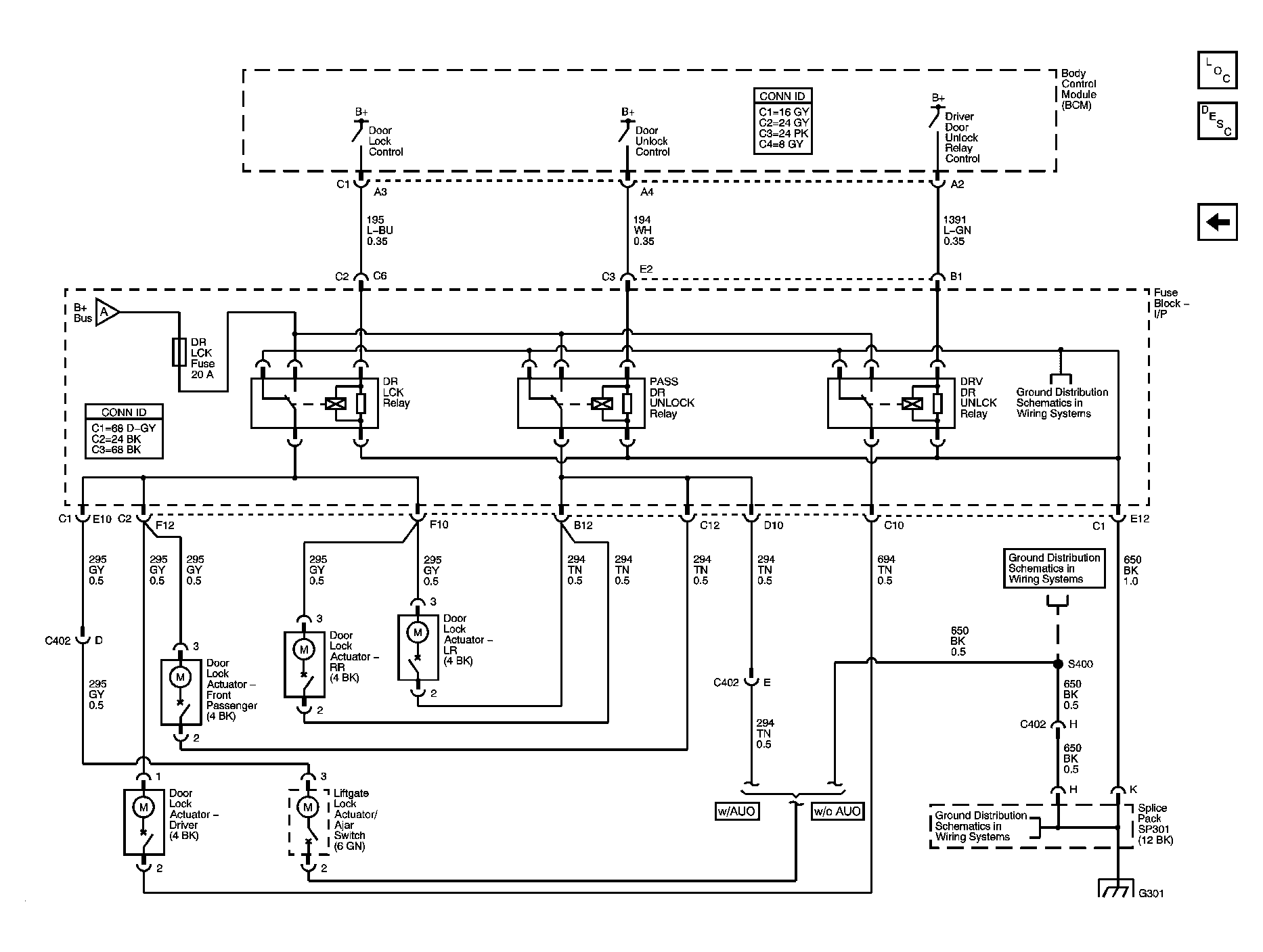

Fig 2: Door Lock Actuators Schematic
GM1218084Courtesy of GENERAL MOTORS CORP.
