Removal Procedure

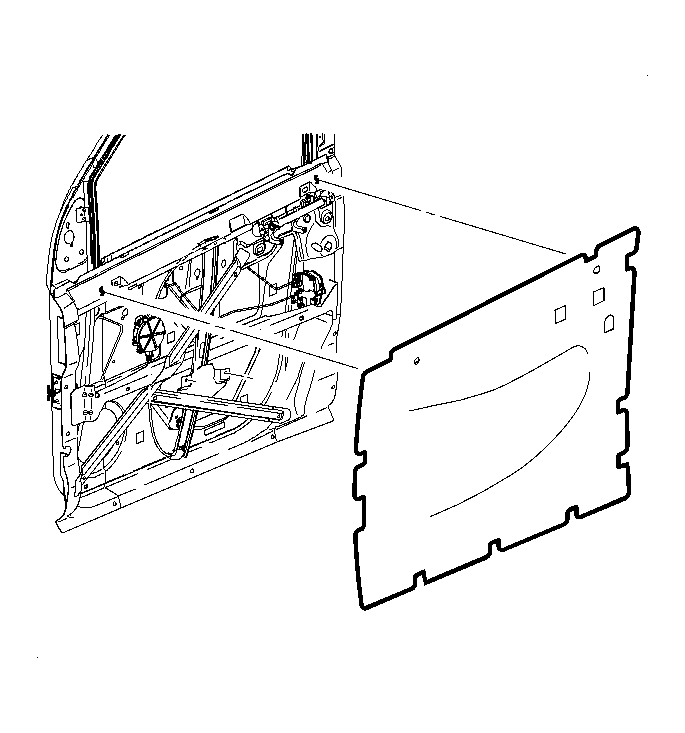

    Fig 1: View Of Front Door Sound Insulator
    GM941737Courtesy of GENERAL MOTORS CORP.
  1. Remove the front door outer panel. Refer to Outer Door Panel Replacement Front - Bolt On .
  2. Gently pull at the adhesive locations and remove the door panel insulator.
