Battery Tray Replacement

BATTERY TRAY REPLACEMENT

REMOVAL PROCEDURE




1. Remove the battery box.

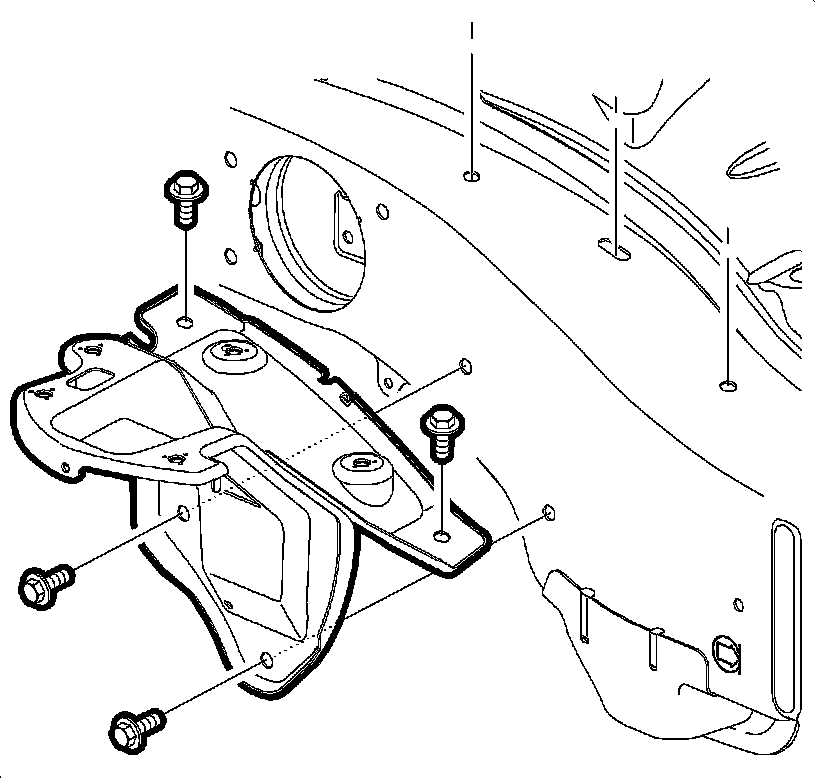

2. Loosen the battery tray bracket bolts and remove the bracket.

INSTALLATION PROCEDURE




1. Position the battery tray bracket and tighten the bolts.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the battery tray bracket bolts to 16 N.m (12 lb ft).

2. Install the battery box.
