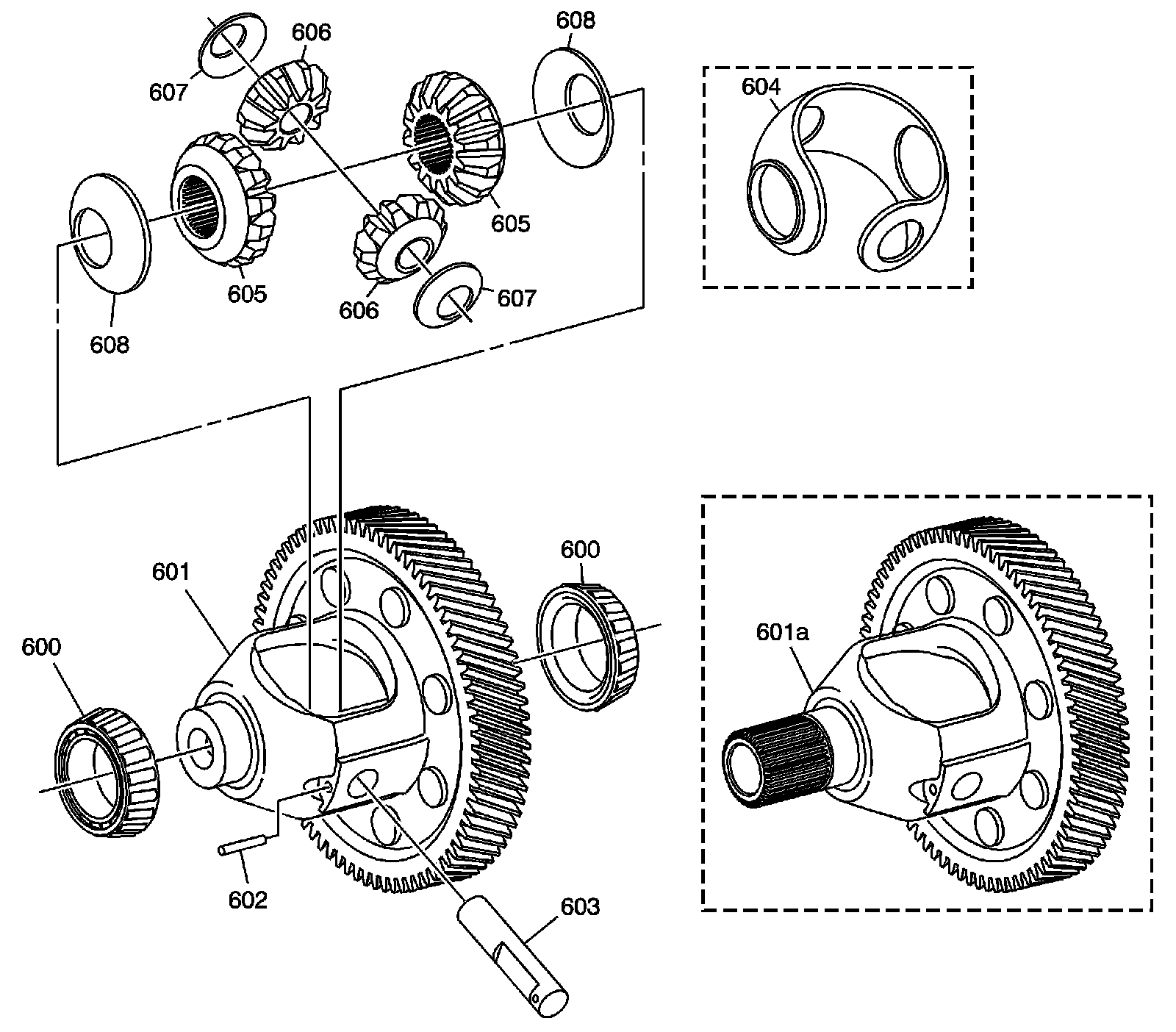

Front Differential Carrier Assembly










(600) Front Differential Carrier Bearing Assembly
(600) Front Differential Carrier Bearing Assembly
(601) Front Differential Carrier Assembly - 2WD
(601a) Front Differential Carrier Assembly - F4WD
(602) Front Differential Pinion Gear Shaft Pin
(603) Front Differential Pinion Shaft
(604) Front Differential Carrier Thrust Washer - Some Models
(605) Front Differential Side Gear
(605) Front Differential Side Gear
(606) Front Differential Pinion Gear
(606) Front Differential Pinion Gear
(607) Front Differential Pinion Gear Thrust Washer - Some Models
(607) Front Differential Pinion Gear Thrust Washer - Some Models
(608) Front Differential Side Gear Thrust Washer - Some Models
(608) Front Differential Side Gear Thrust Washer - Some Models
