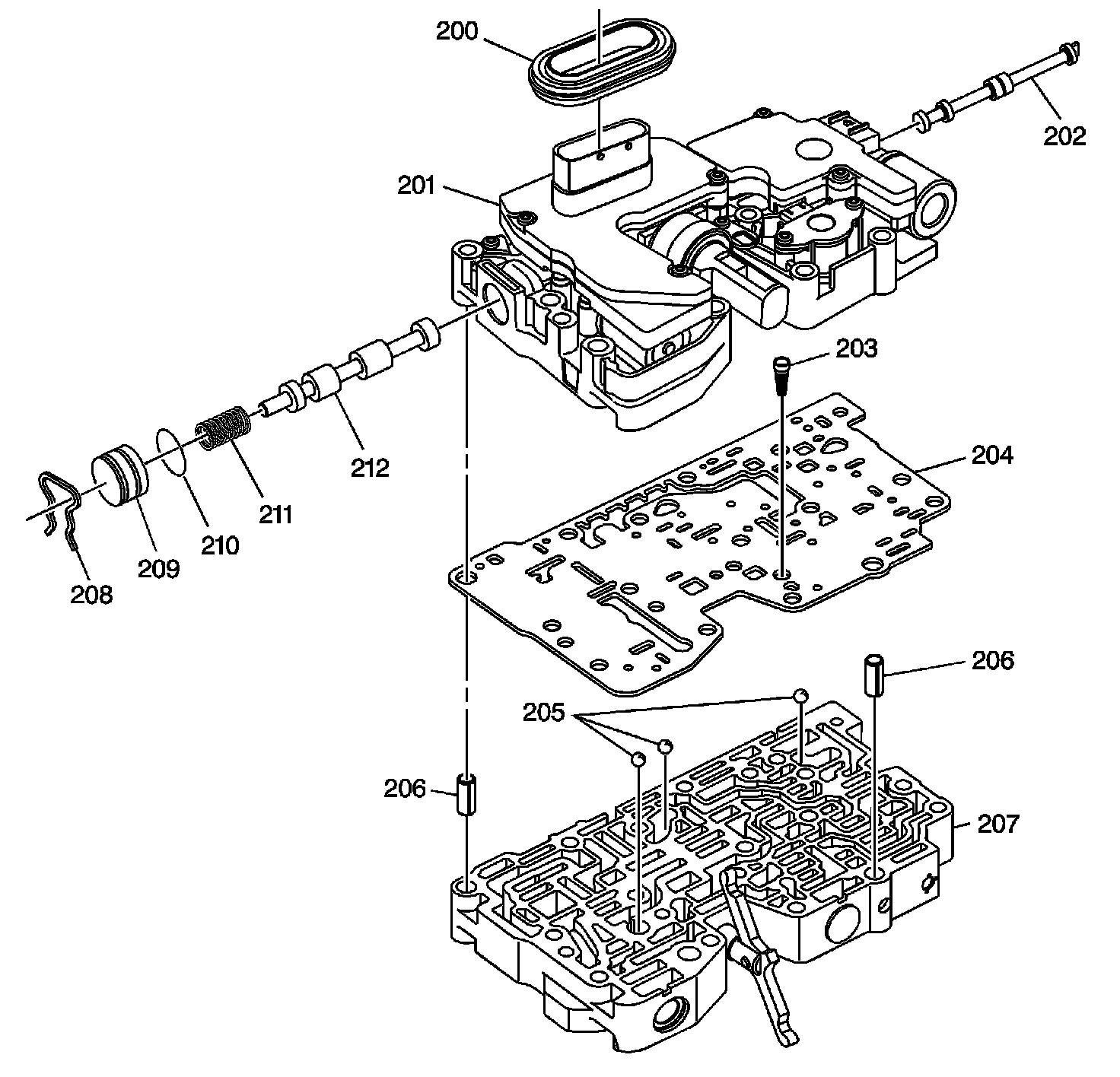

Control Valve Body and Solendoid Assembly









(200) Control Valve Body Cover Wiring Connector Hole Seal
(201) Control Solenoid Valve Assembly
(202) Manual Valve
(203) Automatic Transmission Fluid Pump Pressure Screen Assembly
(204) Control Valve Body Spacer - with Gasket - Plate Assembly
(205) Control Valve Body Ball Check Valve
(206) Control Solenoid Valve Locator Pin
(207) Control Valve Body Assembly
(208) Bore Plug Retainer
(209) Bore Plug
(210) Bore Plug Seal
(211) Line 2 Pressure Regulator Valve Spring
(212) Line 2 Pressure Regulator Valve
