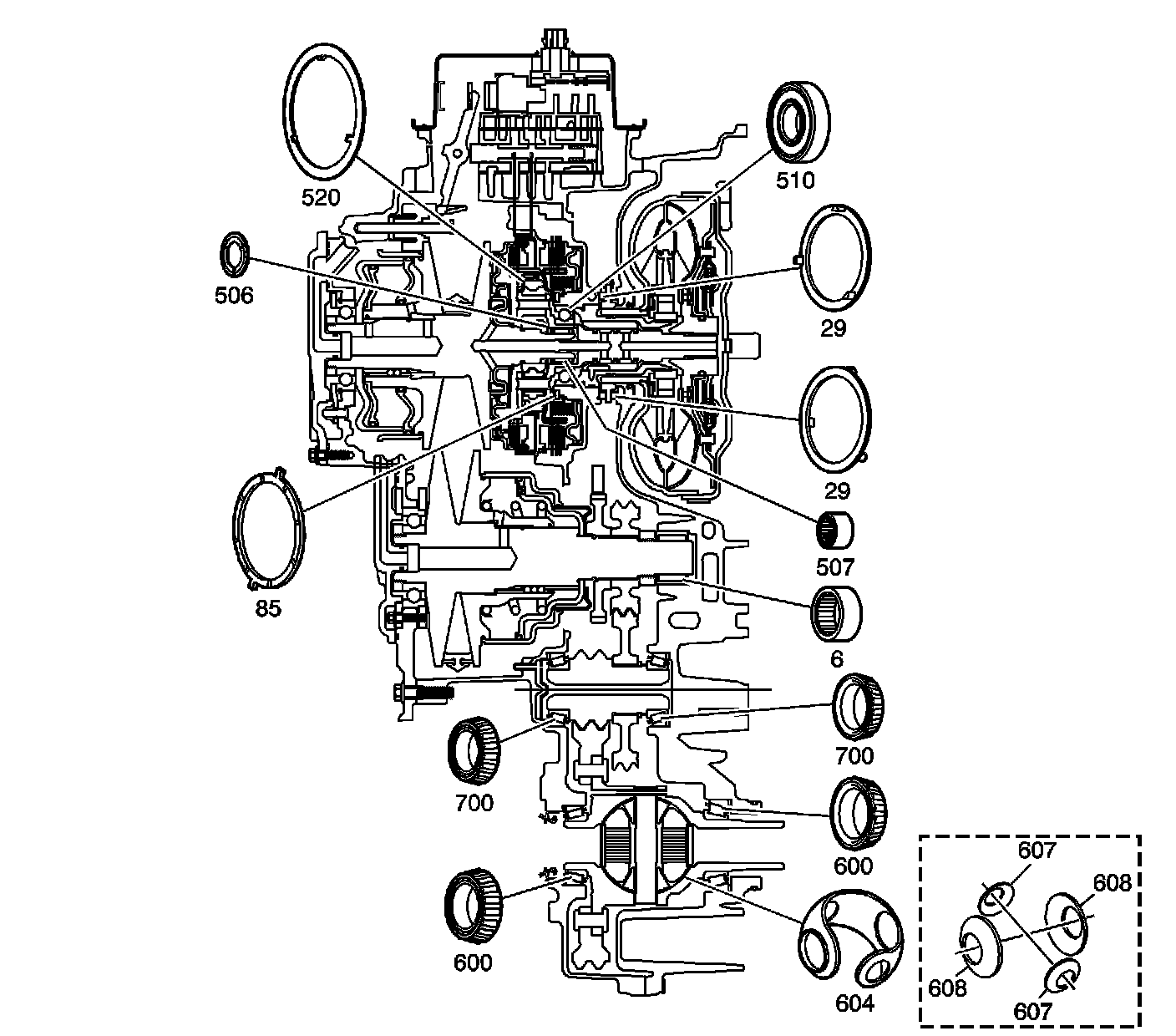

Bearing









(6) Variable Driven Pulley Bearing Assembly
(29) Drive Sprocket Thrust Washer
(85) Reverse Clutch Hub Thrust Washer
(506) Sun Gear Thrust Washer
(507) Input Shaft Bearing Assembly - Inner
(510) Input Shaft Bearing Assembly - Outer
(520) Input Internal Gear Thrust Washer
(600) Front Differential Carrier Bearing Assembly
(600) Front Differential Carrier Bearing Assembly
(604) Front Differential Carrier Thrust Washer - Some Models
(607) Front Differential Pinion Gear Thrust Washer - Some Models
(607) Front Differential Pinion Gear Thrust Washer - Some Models
(608) Front Differential Side Gear Thrust Washer - Some Models
(608) Front Differential Side Gear Thrust Washer - Some Models
(700) Front Differential Drive Pinion Gear Bearing Assembly
(700) Front Differential Drive Pinion Gear Bearing Assembly
