Transmission Major Components

Component Location

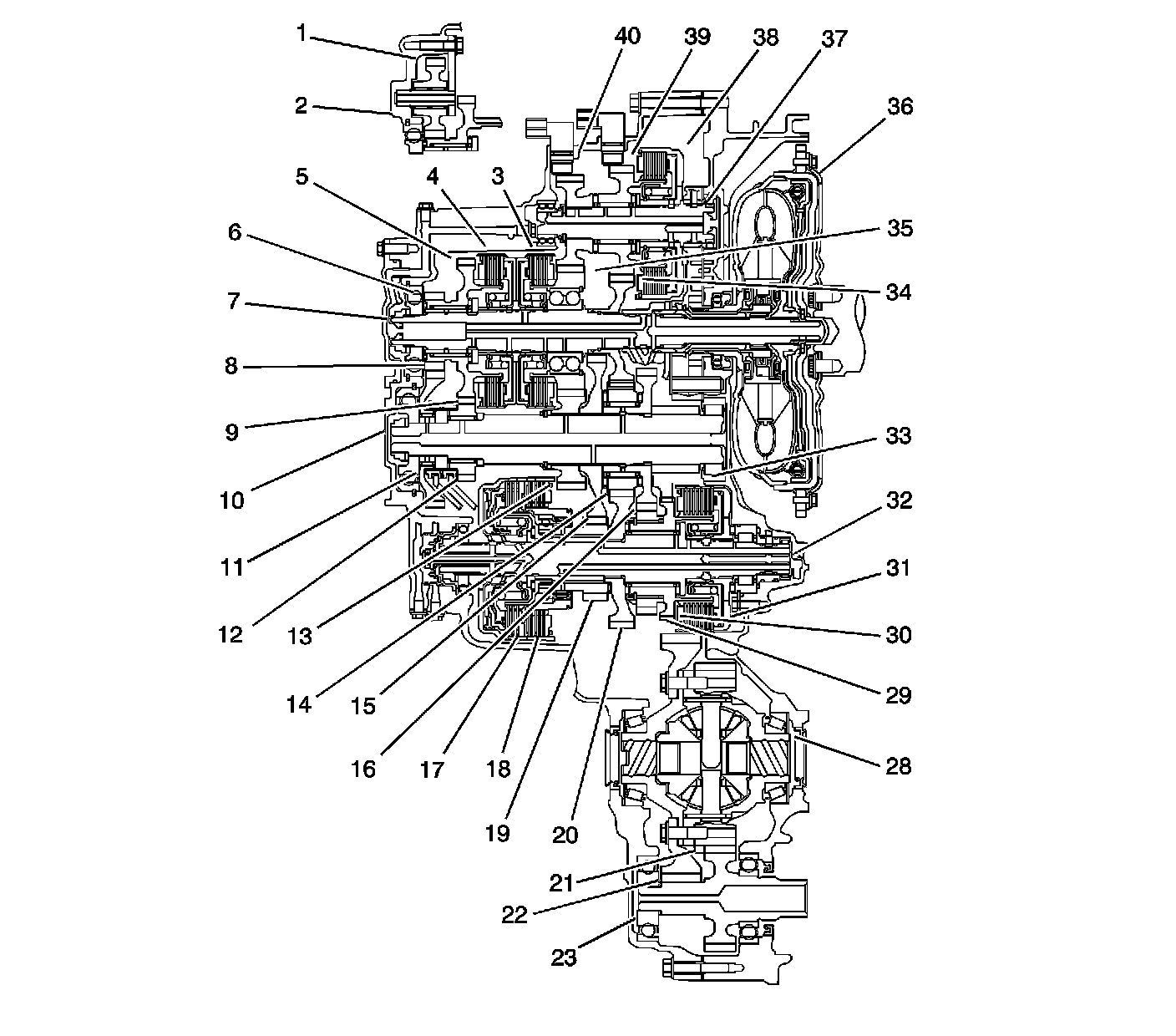

Major Components

Major Components:

1 - Reverse Idler Gear
2 - Reverse Idler Gear Shaft
3 - 4th Clutch Assembly
4 - 5th Clutch Assembly
5 - Mainshaft 5th Gear
6 - Mainshaft Reverse Gear
7 - Mainshaft Assembly
8 - Output Shaft Reverse Gear
9 - Reverse Selector Hub
10 - Output Shaft Assembly
11 - Reverse Shift Fork
12 - Output Shaft 5th Gear
13 - Output Shaft 4th Gear
14 - Output Shaft Idler Gear
15 - Output Shaft 1st Gear
16 - Output Shaft 2nd Gear
17 - Coast Clutch Assembly
18 - 1st Clutch Assembly
19 - 1st - 2nd Clutch Shaft 1st Gear
20 - 1st - 2nd Clutch Shaft Drive Gear
21 - Transfer Drive Gear
22 - Final Driven Gear
23 - Transfer Output Shaft
28 - Front Differential Assembly
29 - 1st - 2nd Clutch Shaft 2nd Gear
30 - Park Gear
31 - 2nd Clutch Assembly
32 - 1st - 2nd Clutch Shaft Assembly
33 - Final Drive Gear
34 - Mainshaft 3rd Gear
35 - Mainshaft 4th Gear
36 - Torque Converter Assembly
37 - 3rd Clutch Shaft
38 - 3rd Clutch Assembly
39 - 3rd Clutch Shaft 3rd Gear
40 - 3rd Clutch Shaft 4th Gear
