Buzzers, Relays & Timers
BUZZERS, RELAYS & TIMERS LOCATION
| Component | Location |
|---|---|

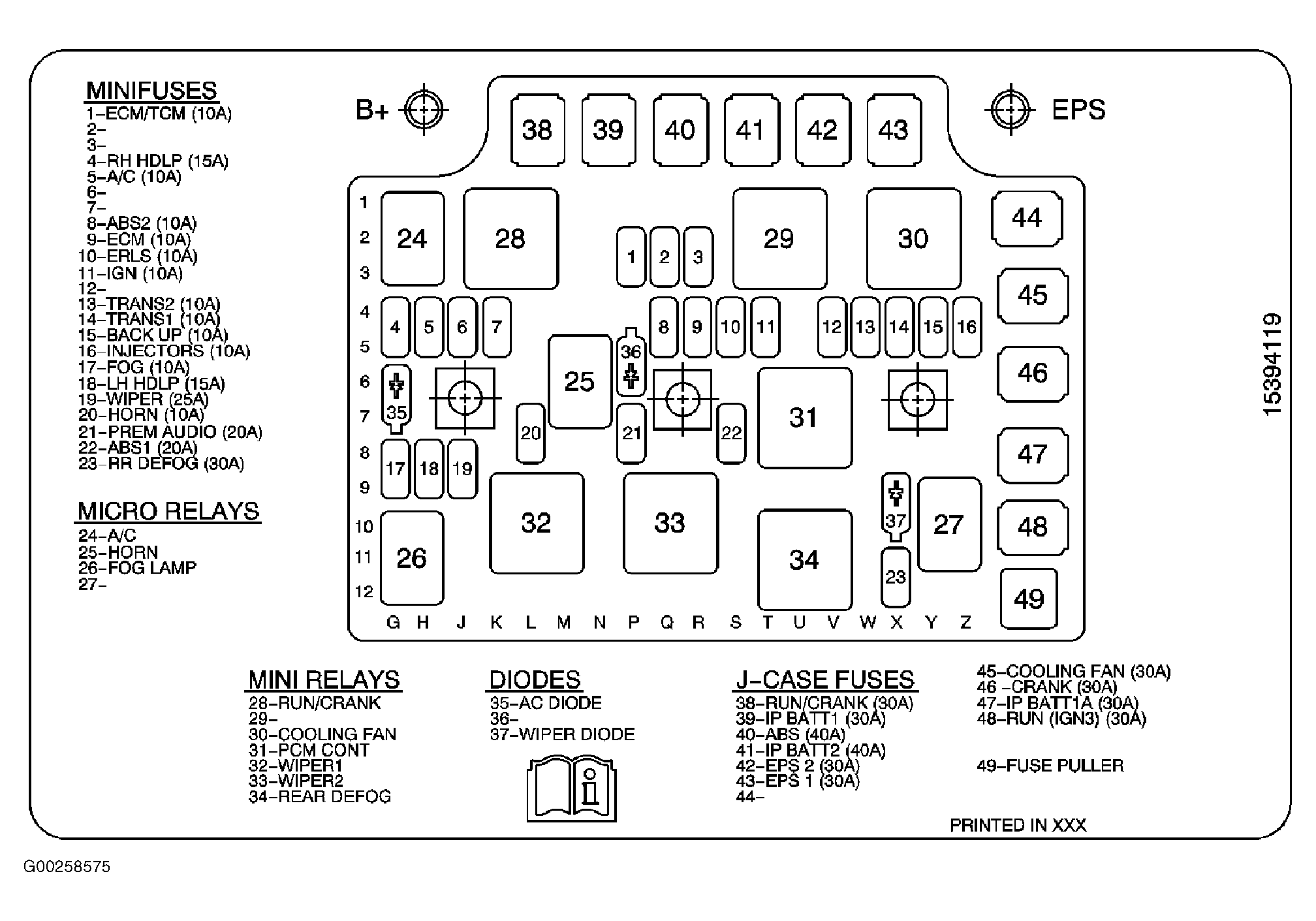

| A/C | In underhood fuse block (2.2L). See Figure. |

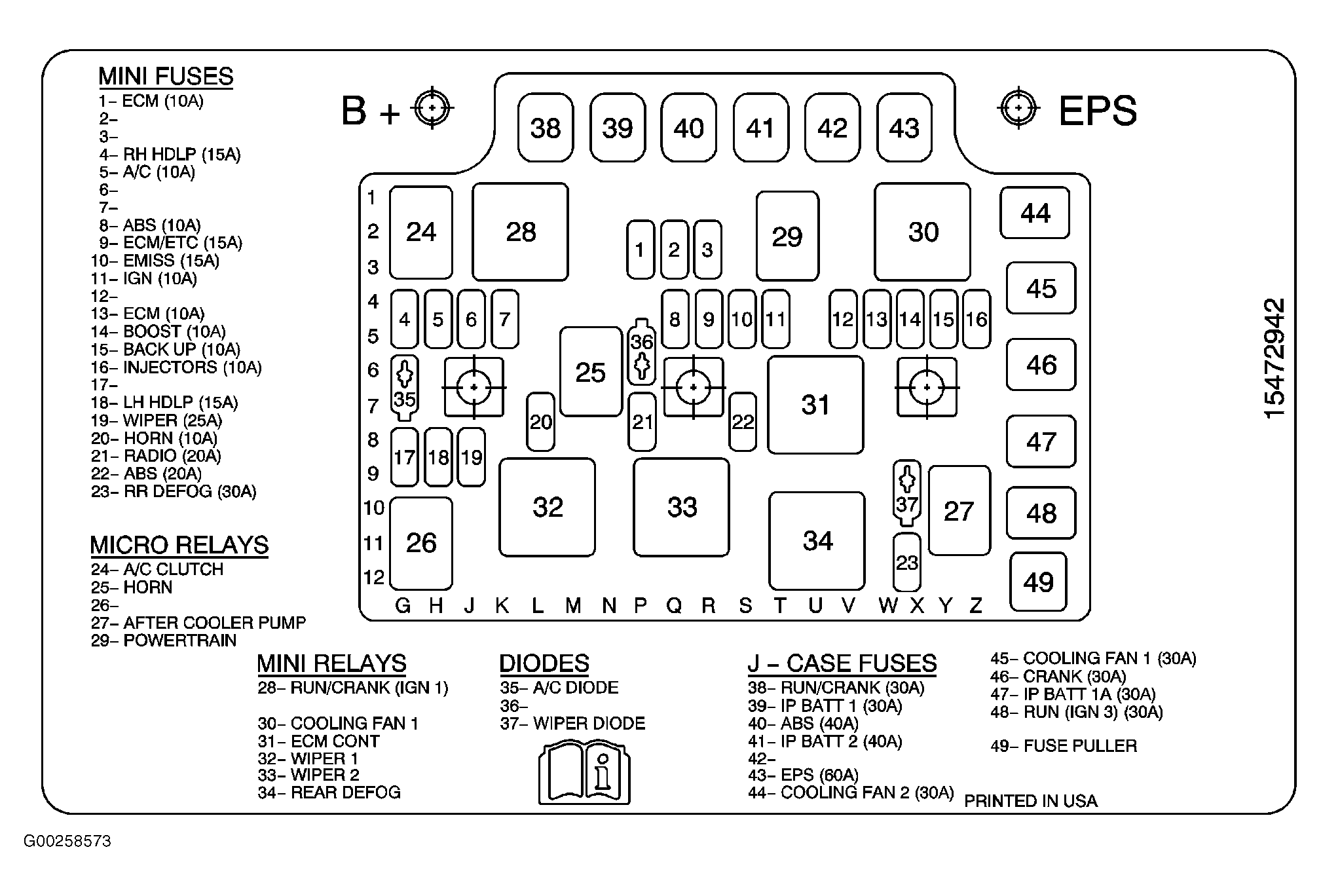

| A/C CLUTCH | In underhood fuse block (2.0L). See Figure. |

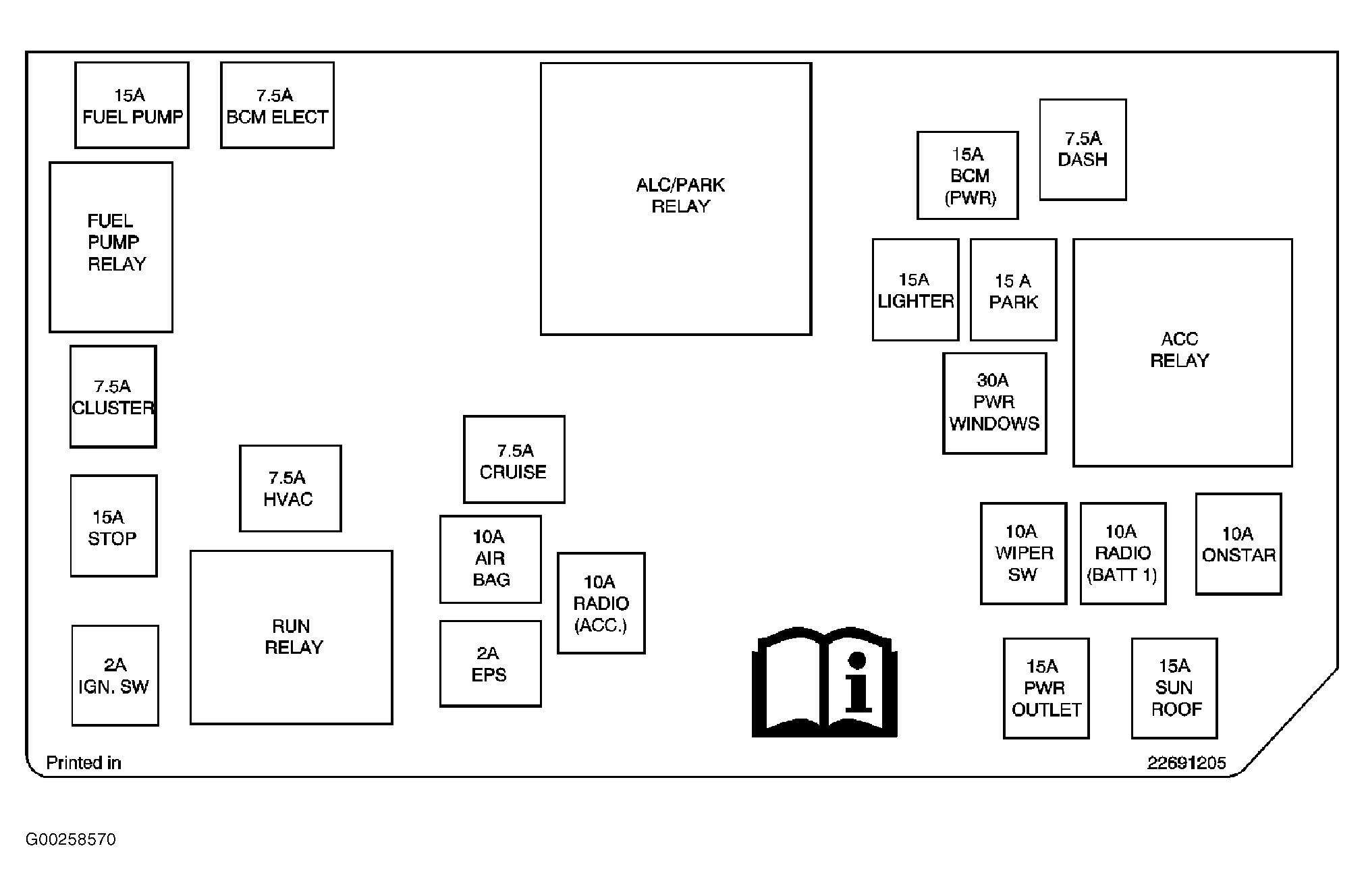

| ACC Relay | In body control module (BCM). See Figure. |
| AFTER COOLER PUMP | In underhood fuse block (2.0L). See Figure. |
| ALC/PARK Relay | In body control module (BCM). See Figure. |
| COOLING FAN | In underhood fuse block (2.2L). See Figure. |
| Cooling Fan S/P Relay | In front of engine compartment, attached to top center of radiator. |
| COOLING FAN 1 | In underhood fuse block (2.0L). See Figure. |
| Cooling Fan 2 Relay | In front of engine compartment, attached to top right corner of radiator. |
| ECM CONT | In underhood fuse block (2.0L). See Figure. |
| FOG LAMP | In underhood fuse block (2.2L). See Figure. |
| FUEL PUMP Relay | In body control module (BCM). See Figure. |
| Headlamp Relay | Behind lower left side of dash, near data link connector (DLC). |
| HORN | In underhood fuse block (2.0L). See Figure. |
| HORN | In underhood fuse block (2.2L). See Figure. |
| PCM CONT | In underhood fuse block (2.2L). See Figure. |
| POWERTRAIN | In underhood fuse block (2.0L). See Figure. |
| REAR DEFOG | In underhood fuse block (2.0L). See Figure. |
| REAR DEFOG | In underhood fuse block (2.2L). See Figure. |
| RUN/CRANK | In underhood fuse block (2.2L). See Figure. |
| RUN/CRANK (IGN 1) | In underhood fuse block (2.0L). See Figure. |
| RUN Relay | In body control module (BCM). See Figure. |
| WIPER 1 | In underhood fuse block (2.0L). See Figure. |
| WIPER 1 | In underhood fuse block (2.2L). See Figure. |
| WIPER 2 | In underhood fuse block (2.0L). See Figure. |
| WIPER 2 | In underhood fuse block (2.2L). See Figure. |
