Installation Procedure

WARNING: This page is about a different car, the 2007 Saturn Ion Red Line, 2007 Saturn Ion 3, and 2007 Saturn Ion 2. However, it is still accessible from the selected car via links, so may be relevant.

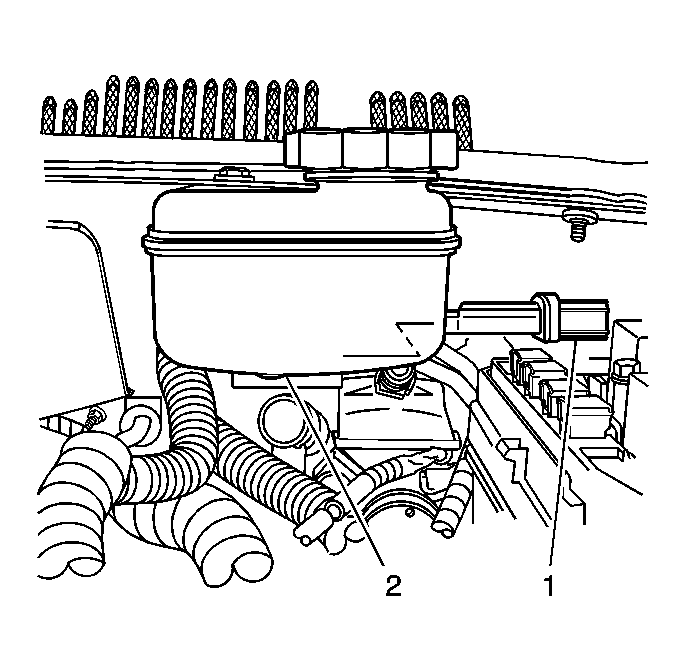

    Fig 1: Locating Brake Fluid Level Sensor & Brake Master Cylinder Auxiliary Reservoir
    GM891920Courtesy of GENERAL MOTORS CORP.
  1. Install the brake fluid level sensor (1) to the brake master cylinder auxiliary reservoir (2). Press the sensor into place to secure the sensor retaining tabs.
    2. Fig 2: View Of Fluid Reservoir
    GM890955Courtesy of GENERAL MOTORS CORP.
  2. Connect the electrical connector to the brake fluid level sensor, then press forward on the CPA tab of the connector to secure.
  3. Install the cover to the underhood electrical center.
