Installation Procedure

WARNING: This page is about a different car, the 2007 Saturn Ion Red Line, 2007 Saturn Ion 3, and 2007 Saturn Ion 2. However, it is still accessible from the selected car via links, so may be relevant.

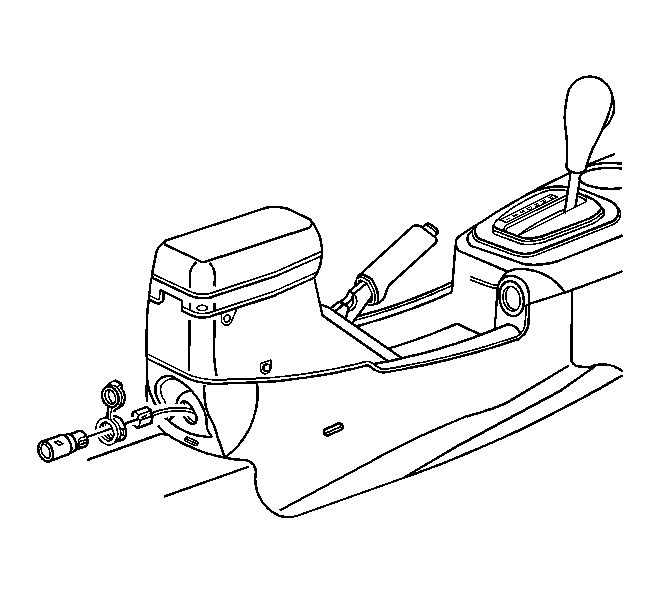

    Fig 1: View Of Floor Console Power Outlet Cover
    GM875768Courtesy of GENERAL MOTORS CORP.
  1. Position the power outlet cover with the key to the slot into the power outlet hole.
  2. Install the power accessory receptacle. Refer to Cigar Lighter Receptacle or 12-Volt Accessory Power Receptacle Replacement .
