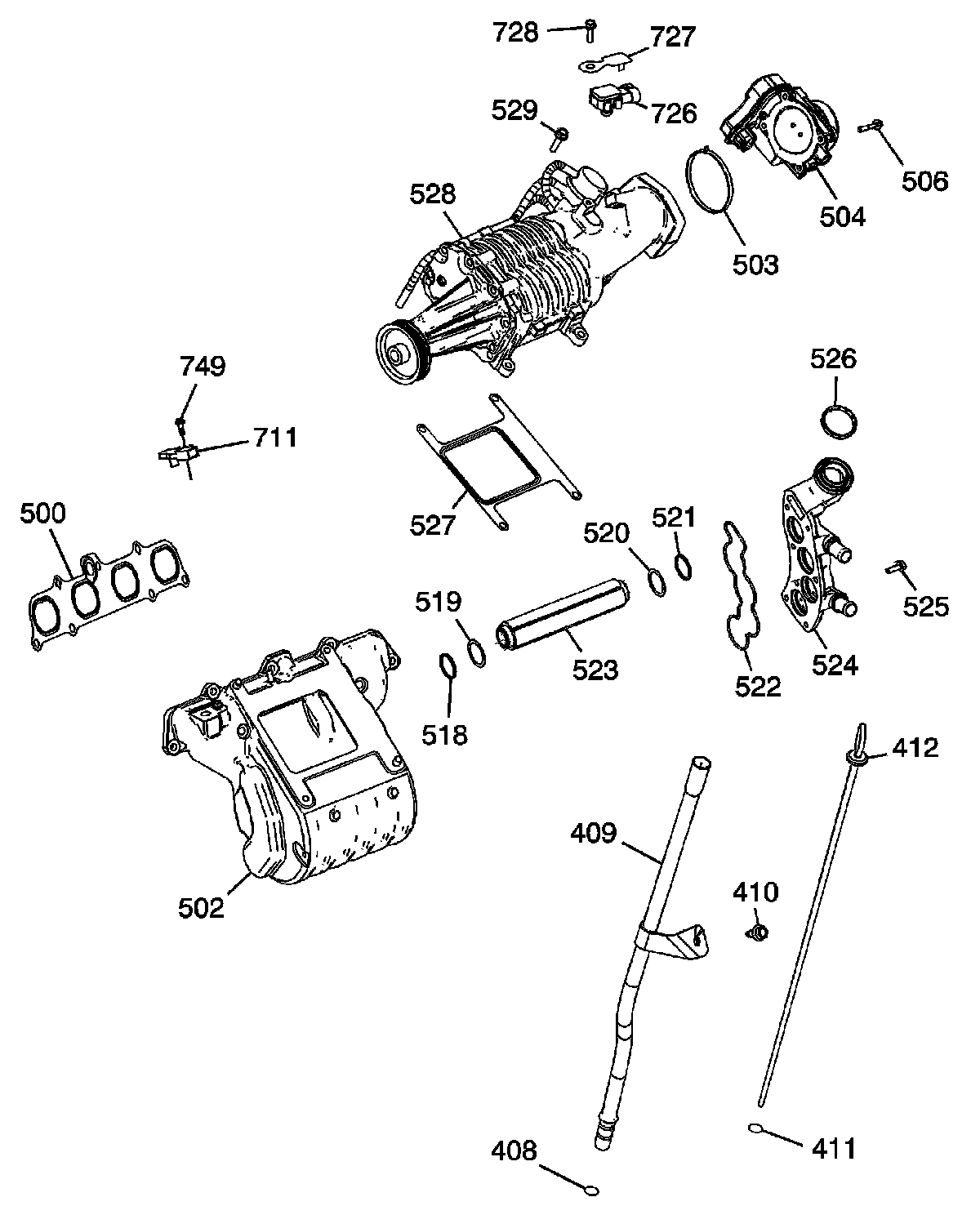

Intake Manifold and Components

Intake Manifold and Components






(408) Oil Indicator Tube O-ring
(409) Oil Indicator Tube
(410) Oil Indicator Tube Bolt
(411) Oil Indicator O-ring
(412) Oil Indicator
(500) Intake Manifold Gasket
(502) Intake Manifold
(503) Throttle Body Seal
(504) Throttle Body
(506) Throttle Body Bolt
(518) Intercooler O-ring
(519) Intercooler Washer
(520) Intercooler Washer
(521) Intercooler O-ring
(522) Intercooler Cover Gasket
(523) Intercooler
(524) Intercooler Cover
(525) Intercooler Cover Bolt
(526) Intercooler Cover Seal
(527) Supercharger Gasket
(528) Supercharger
(529) Supercharger Bolt
(711) Map Sensor
(726) Supercharger Inlet Pressure Sensor
(727) Map Sensor Bracket
(728) Map Sensor Bracket Bolt
(749) Map Sensor Bolt
