Electronic Ignition System (3.0L): Notes

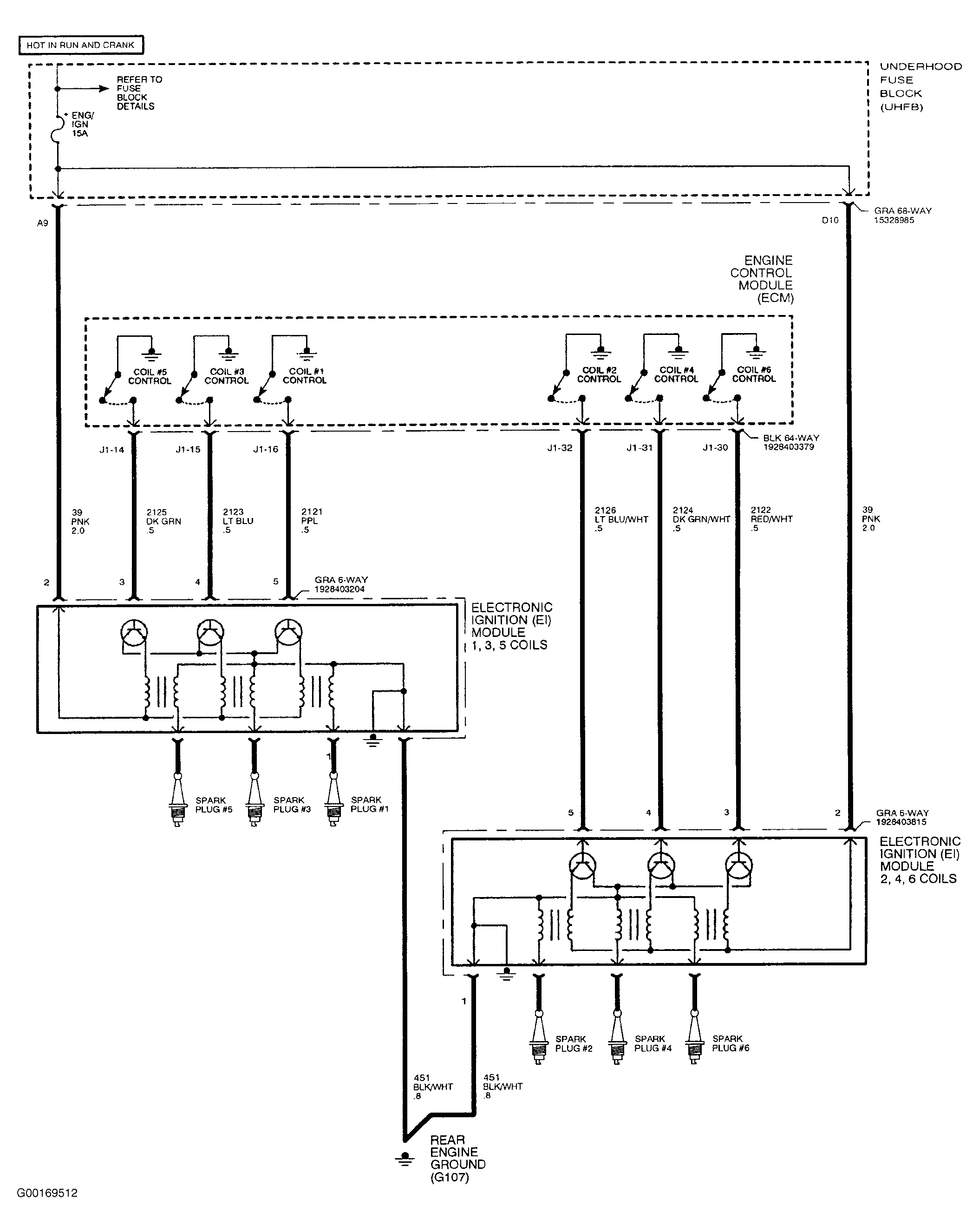

Fig 1: Ignition Circuit Schematic (3.0L)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
