C2

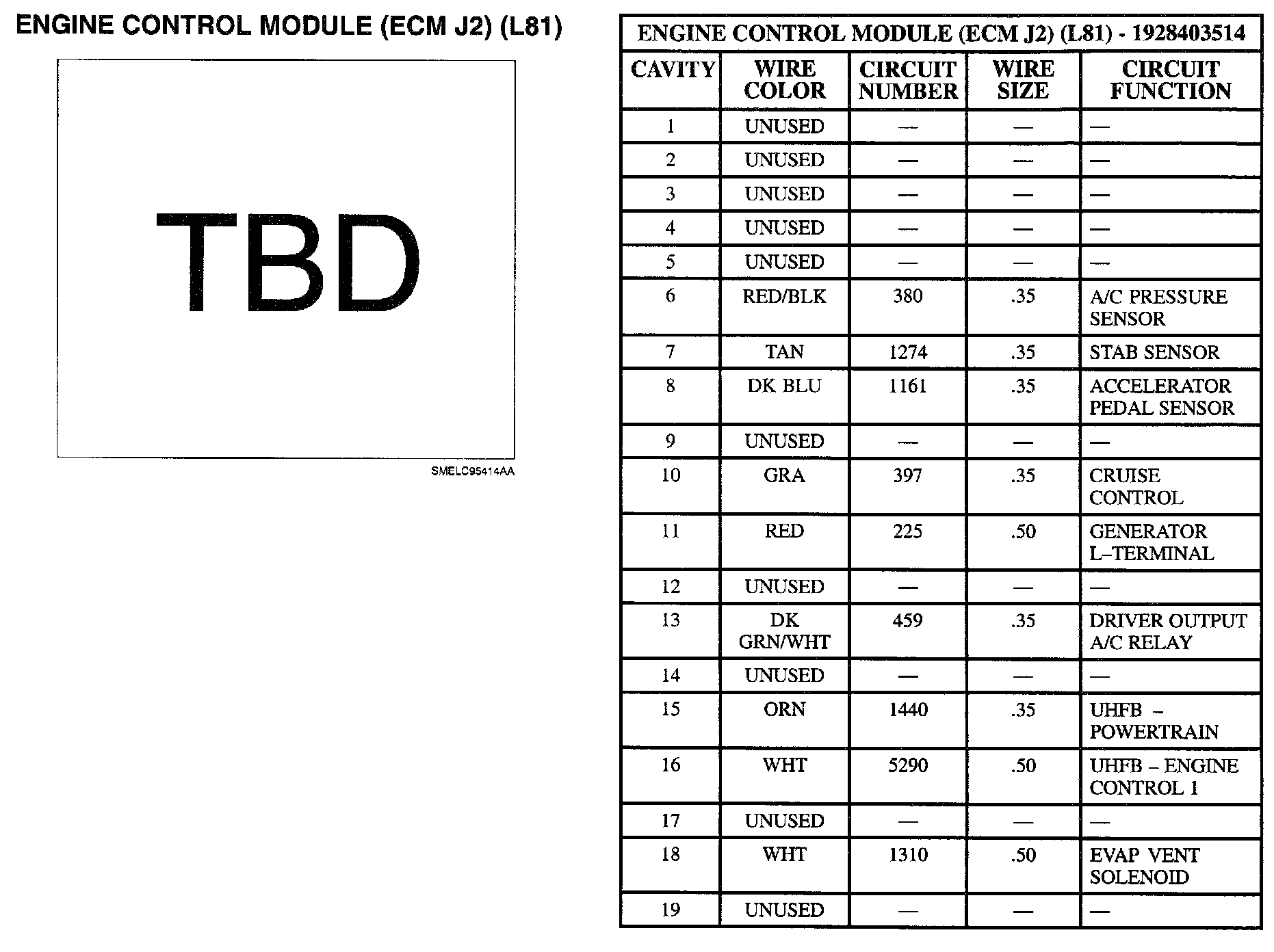

Engine Control Module (ECM J2) (L81) Part 1:

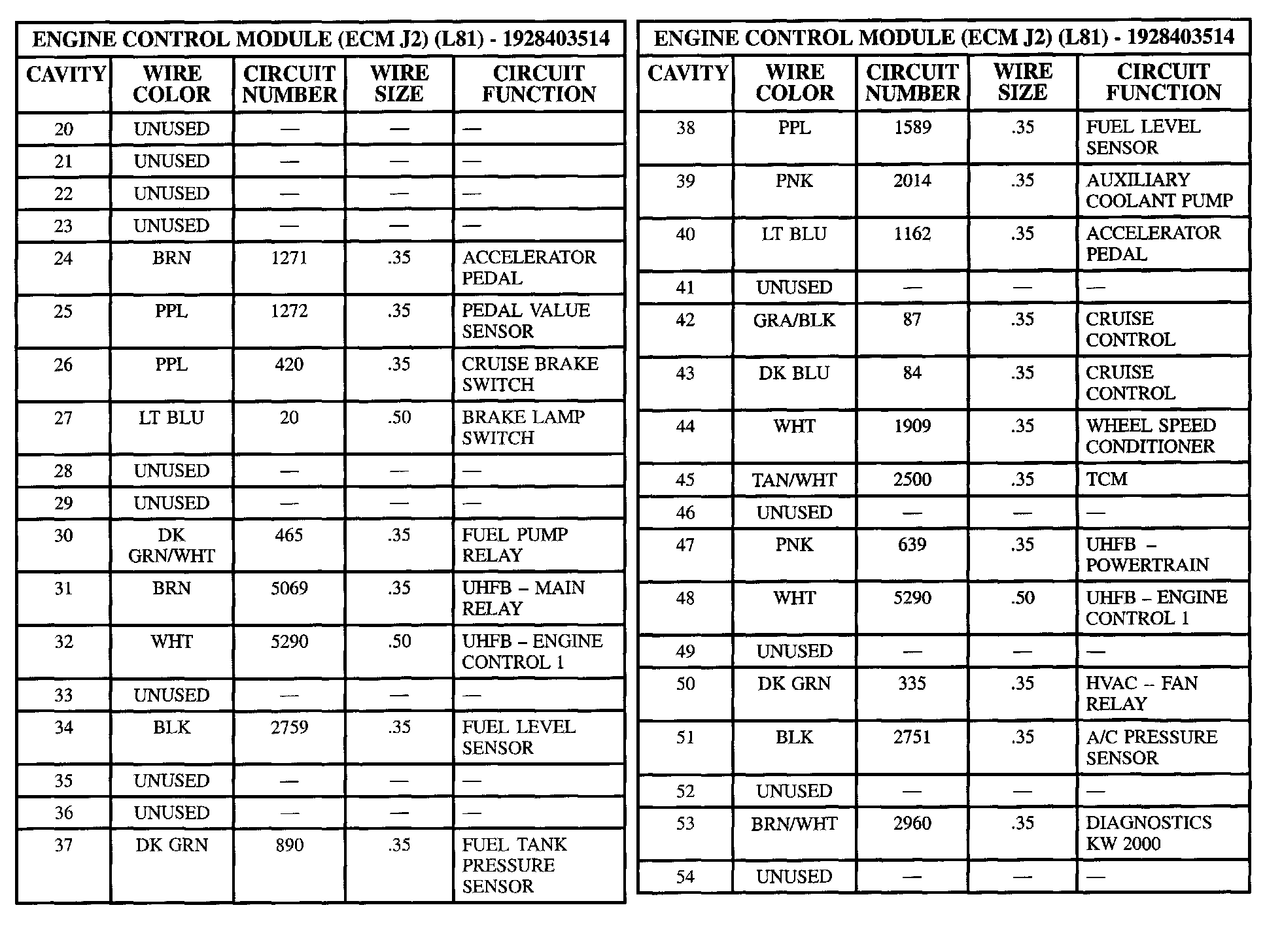

Engine Control Module (ECM J2) (L81) Part 2:

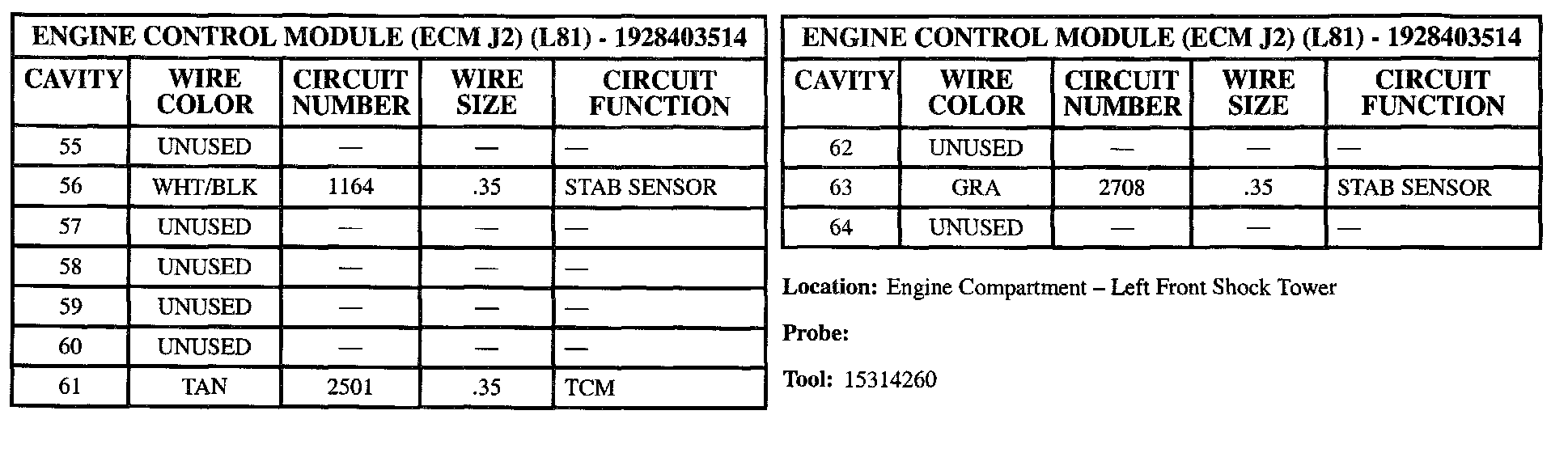

Engine Control Module (ECM J2) (L81) Part 3:
