Wheel Speed Sensor

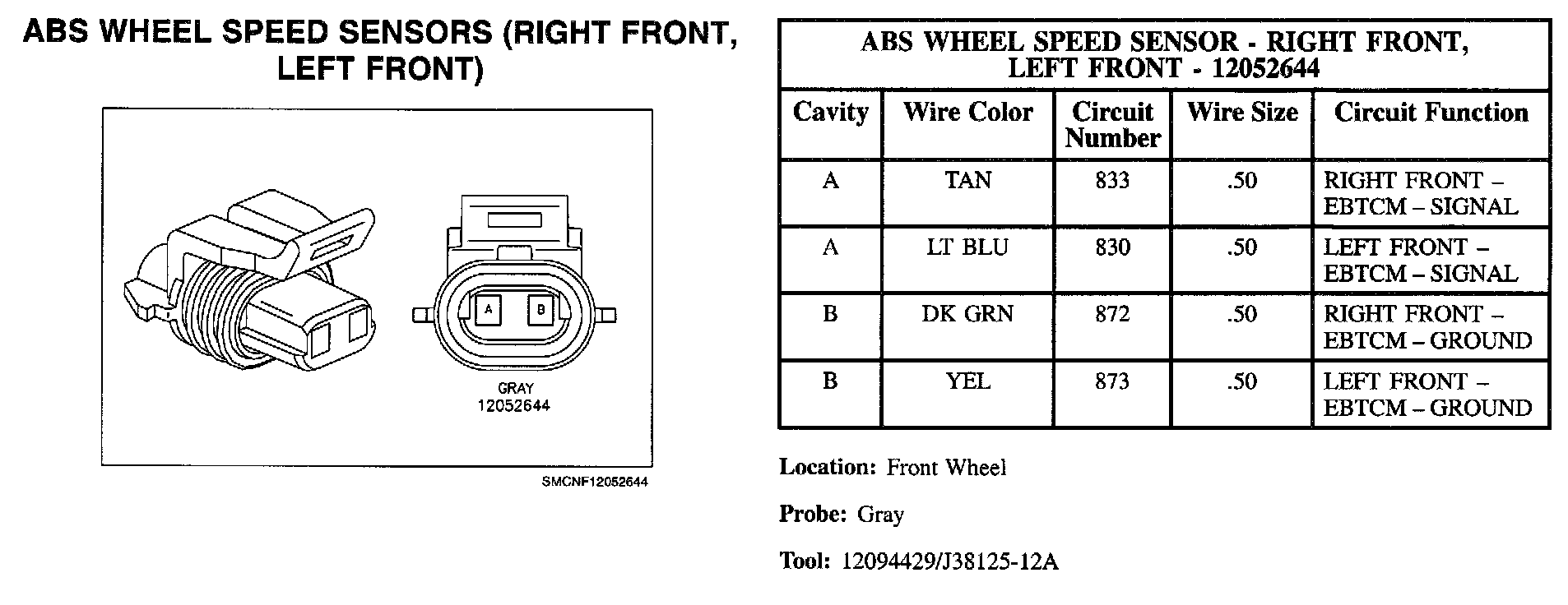

ABS Wheel Speed Sensors (Right Front, Left Front):

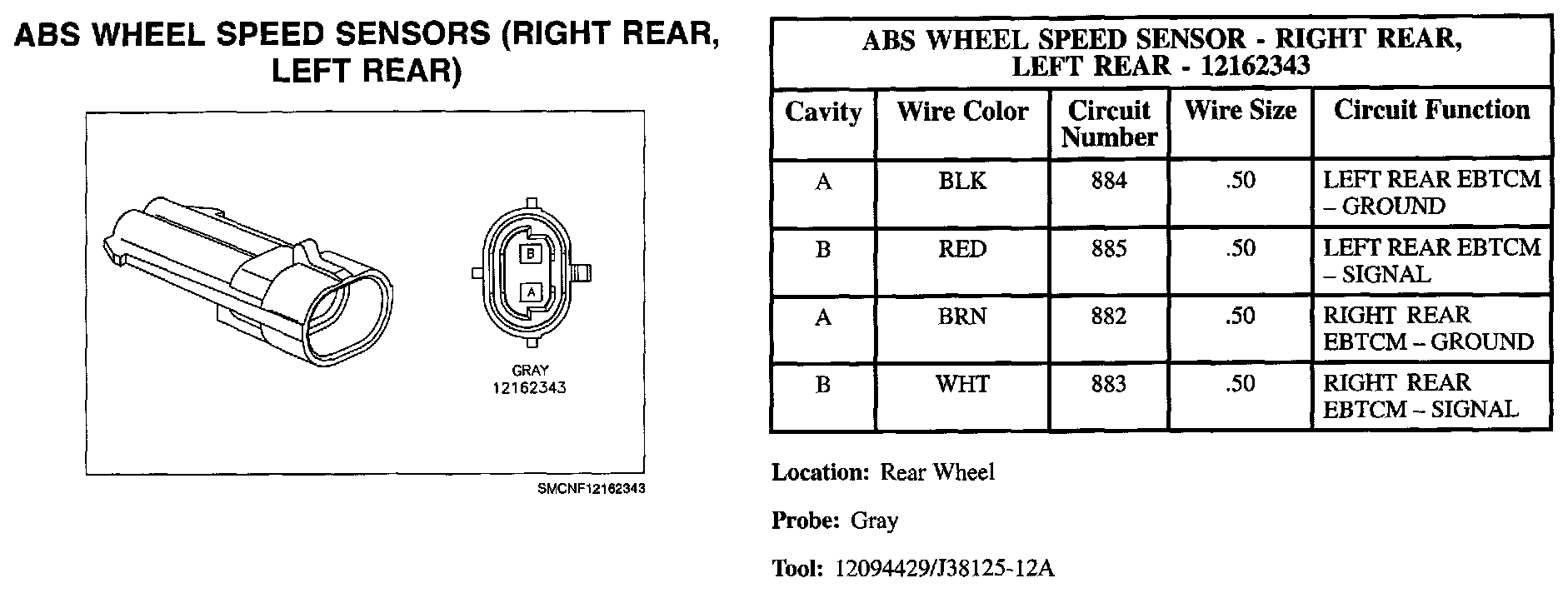

ABS Wheel Speed Sensors (Right Rear, Left Rear):
