Fuse Block - I/P





I/P Fuse Block

I/P Fuse Block Label:

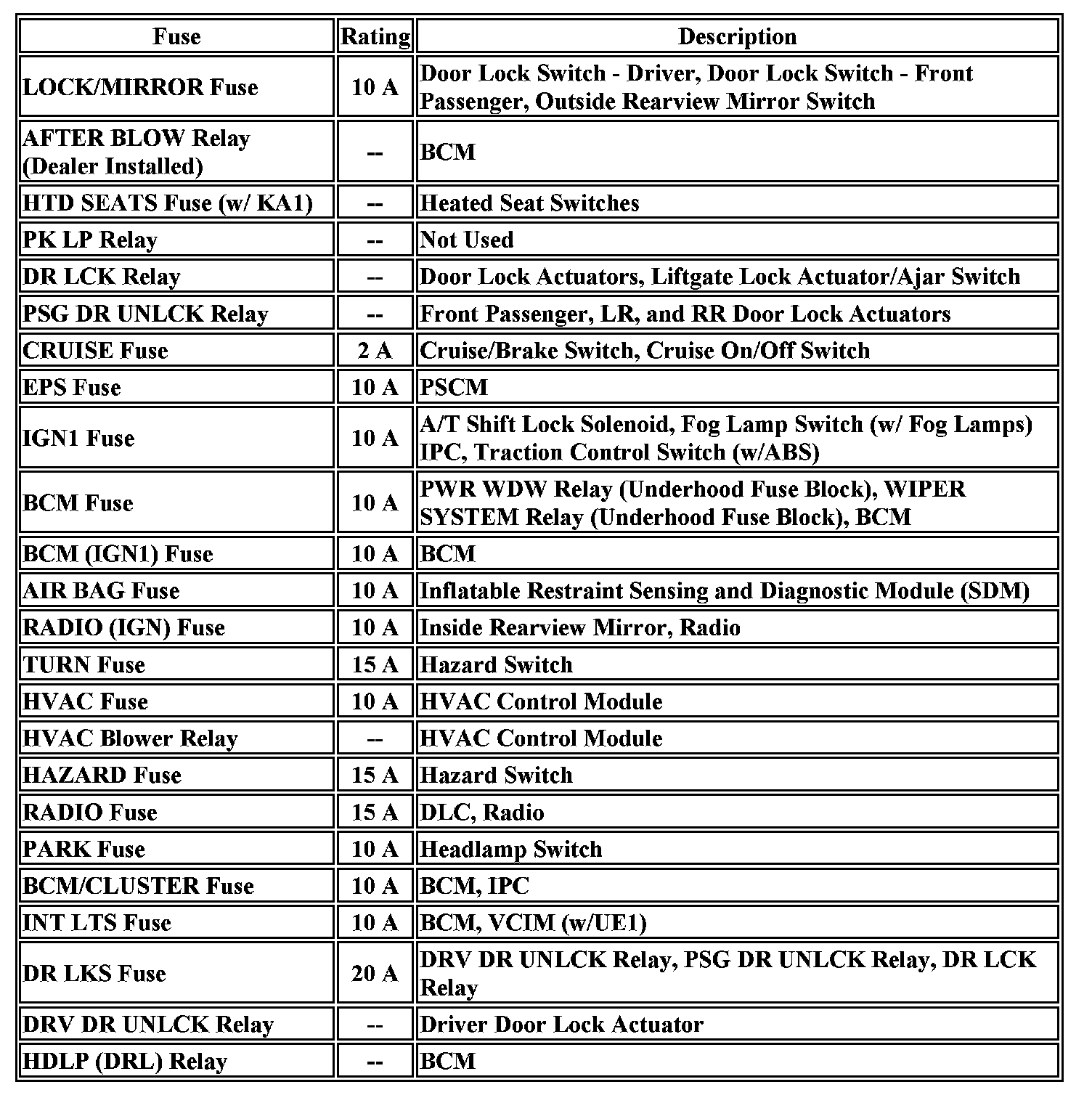

I/P Fuse Block Label Usage:

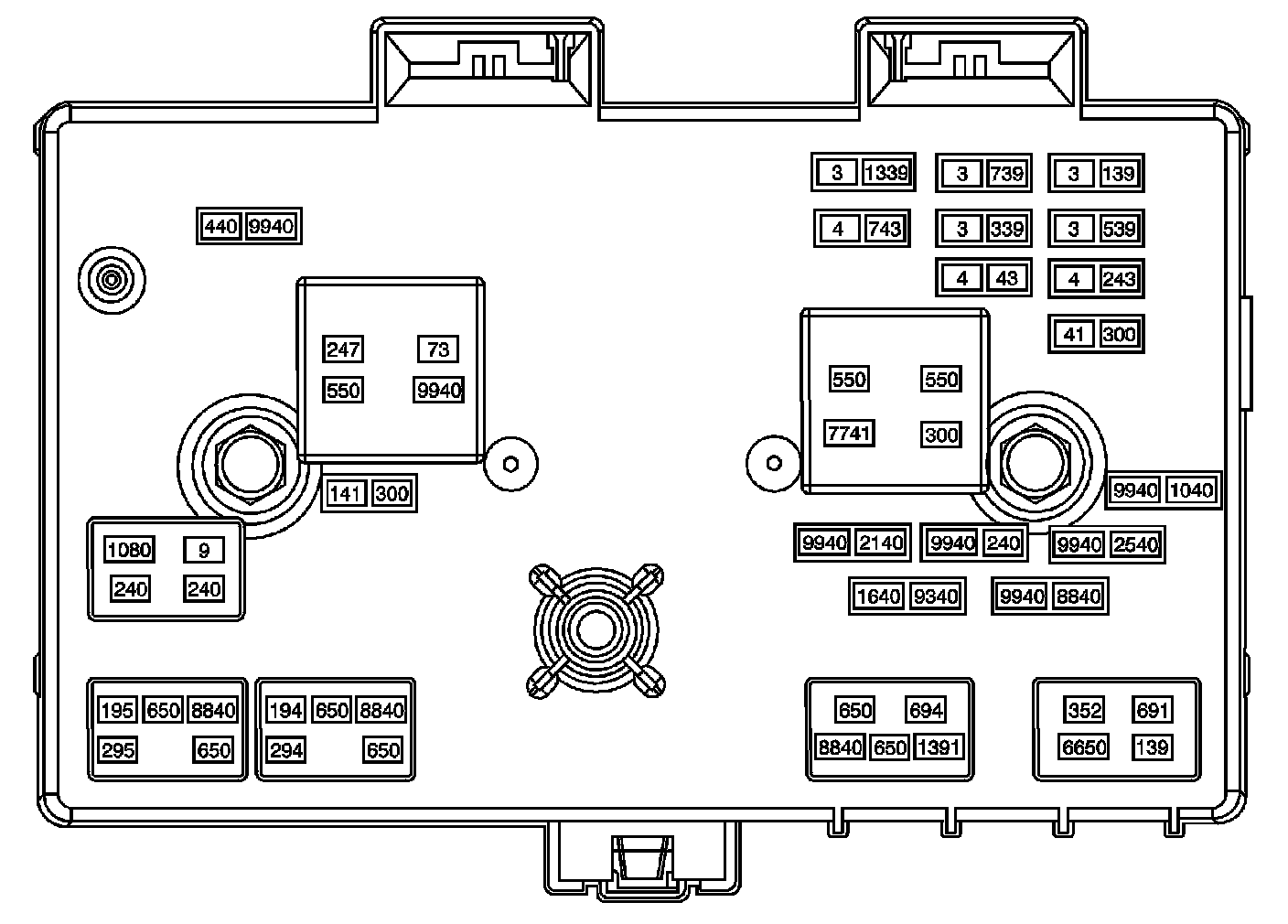

I/P Fuse Block Top View:





I/P Fuse Block Bottom View:
