Home >> Saturn >> 2003 >> VUE L4-2.2L VIN D >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Automatic Transmission/Transaxle >> Front Control Valve Body Assembly
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

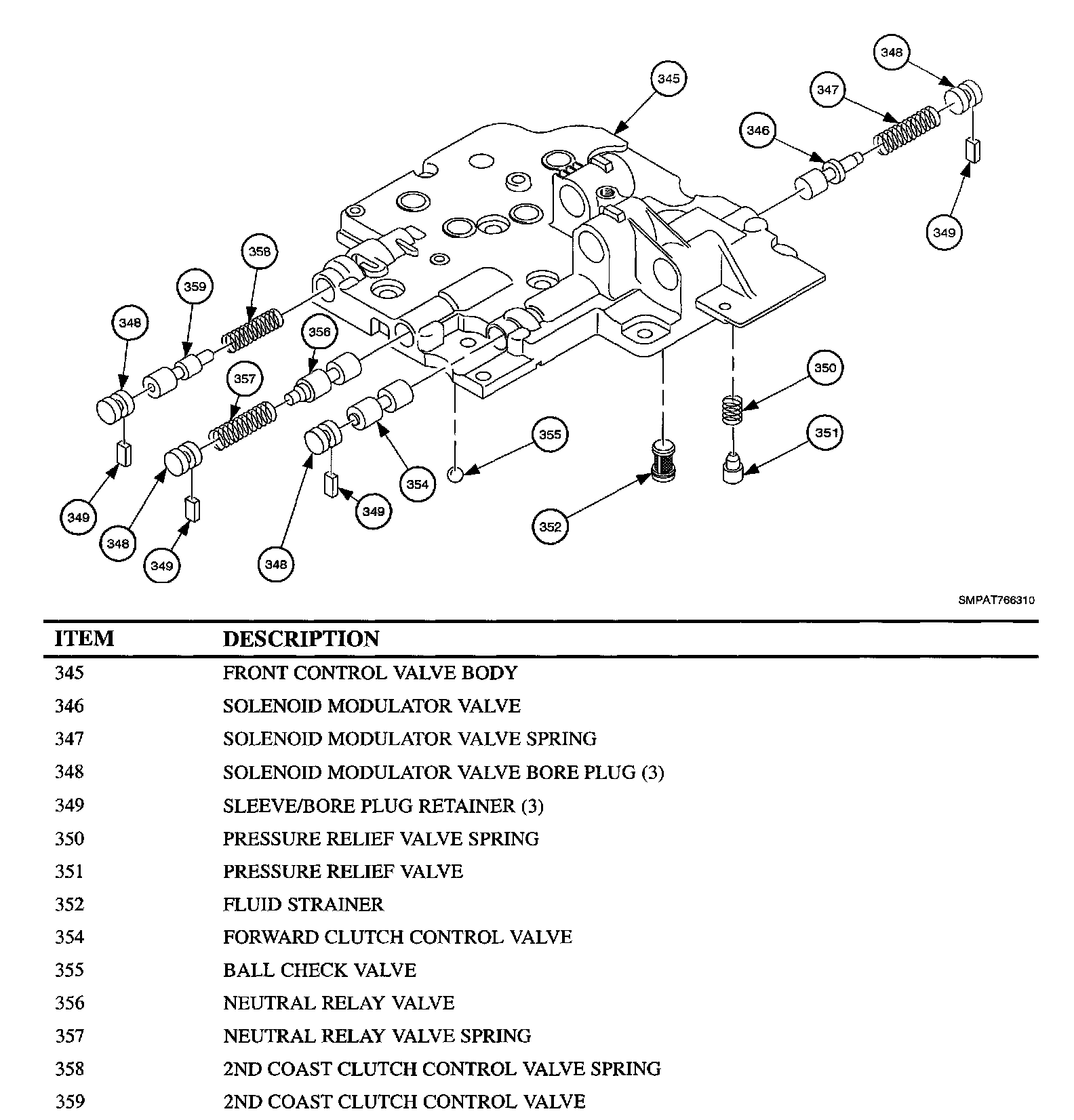

Front Control Valve Body Assembly
