Sensing And Diagnostic Module (SDM)

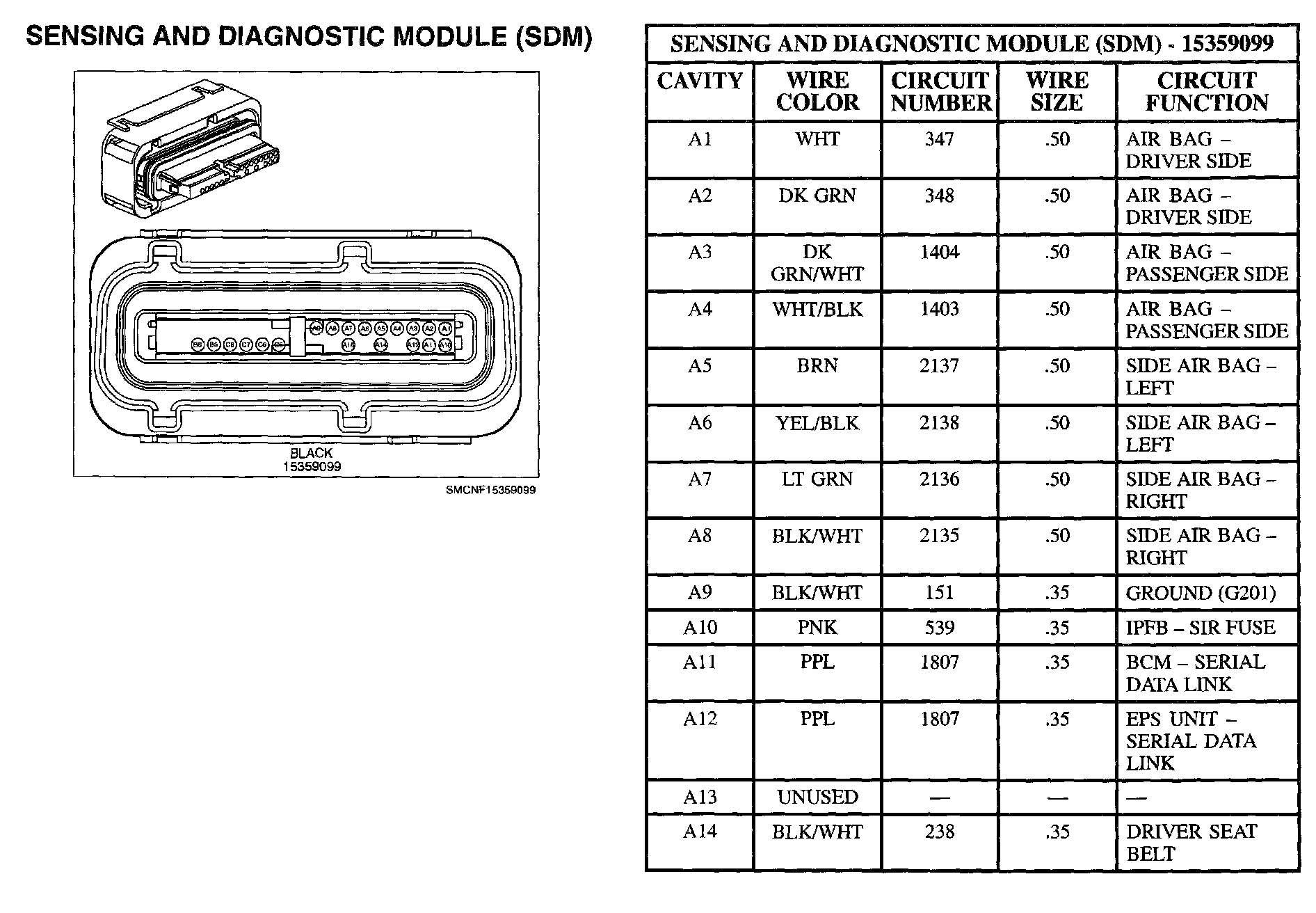

Sensing And Diagnostic Module (SDM) Part 1:

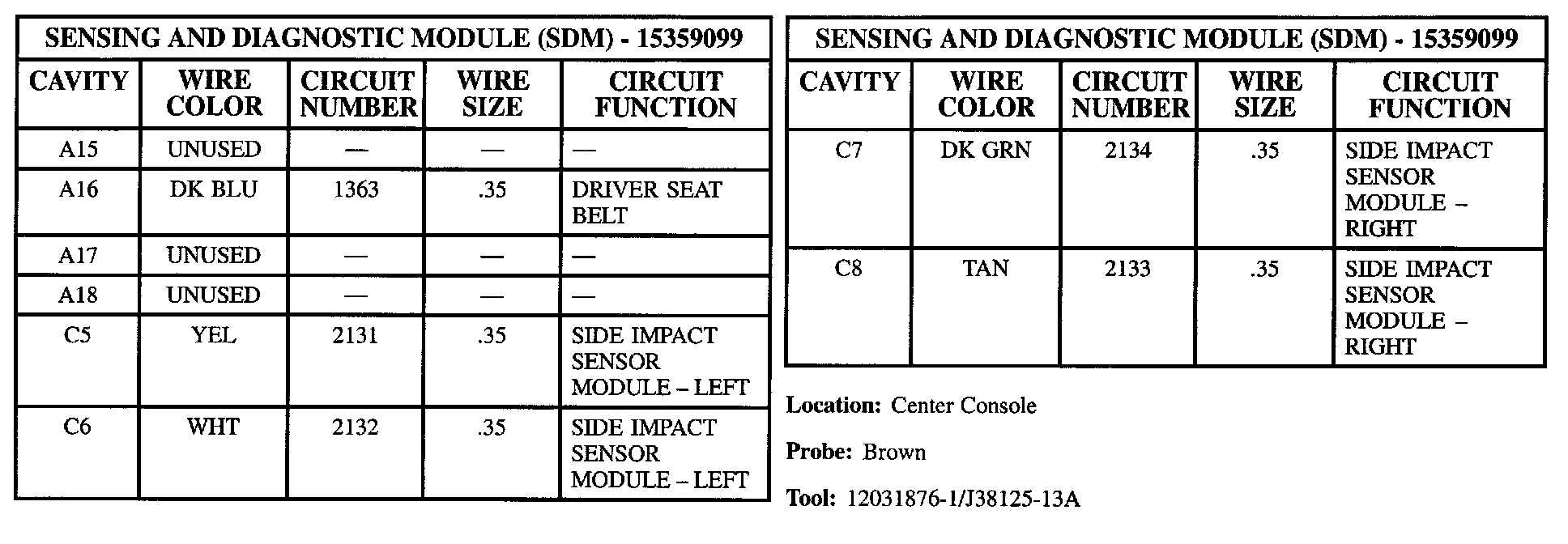

Sensing And Diagnostic Module (SDM) Part 2:
