DTC P0451: EVAP Fuel Tank Pressure Sensor Circuit Performance
>>
Diagnostic Procedure
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Diagnostic Procedure

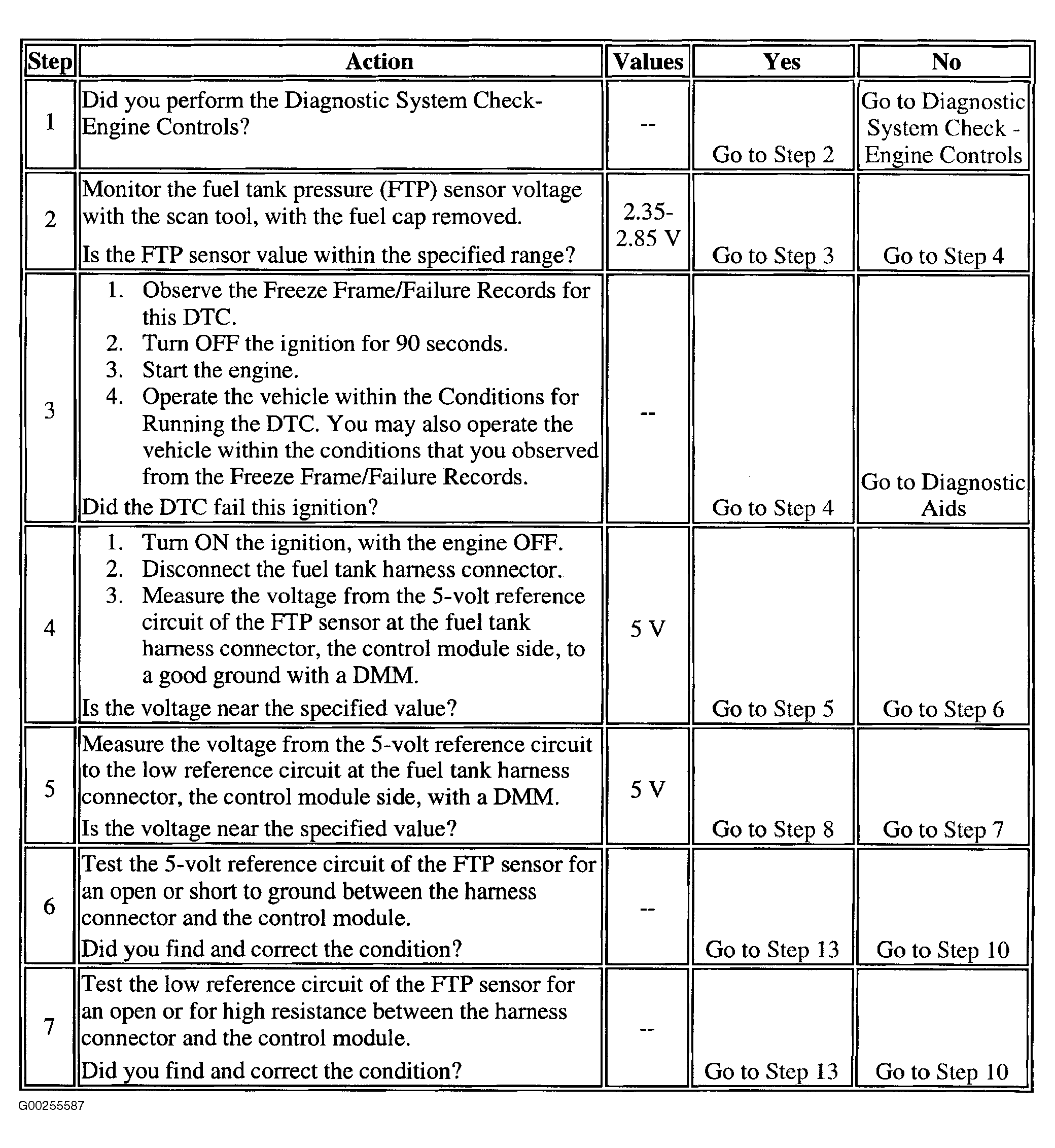

Fig 1: DTC P0451: EVAP Fuel Tank Pressure Sensor Circuit Performance (Steps 1-7)
Courtesy of GENERAL MOTORS CORP.

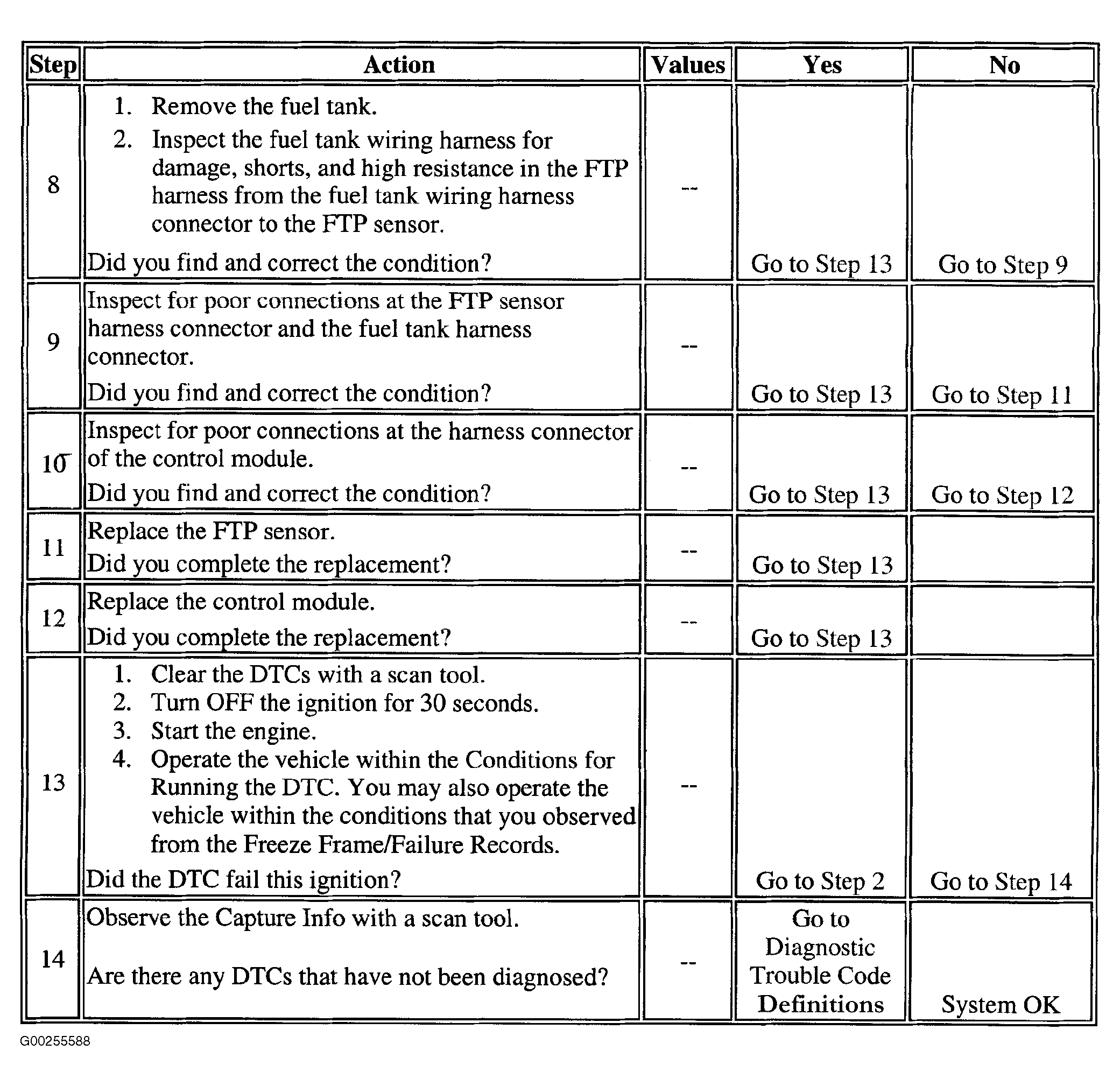

Fig 2: DTC P0451: EVAP Fuel Tank Pressure Sensor Circuit Performance (Steps 8-14)
Courtesy of GENERAL MOTORS CORP.
