ABS Schematics

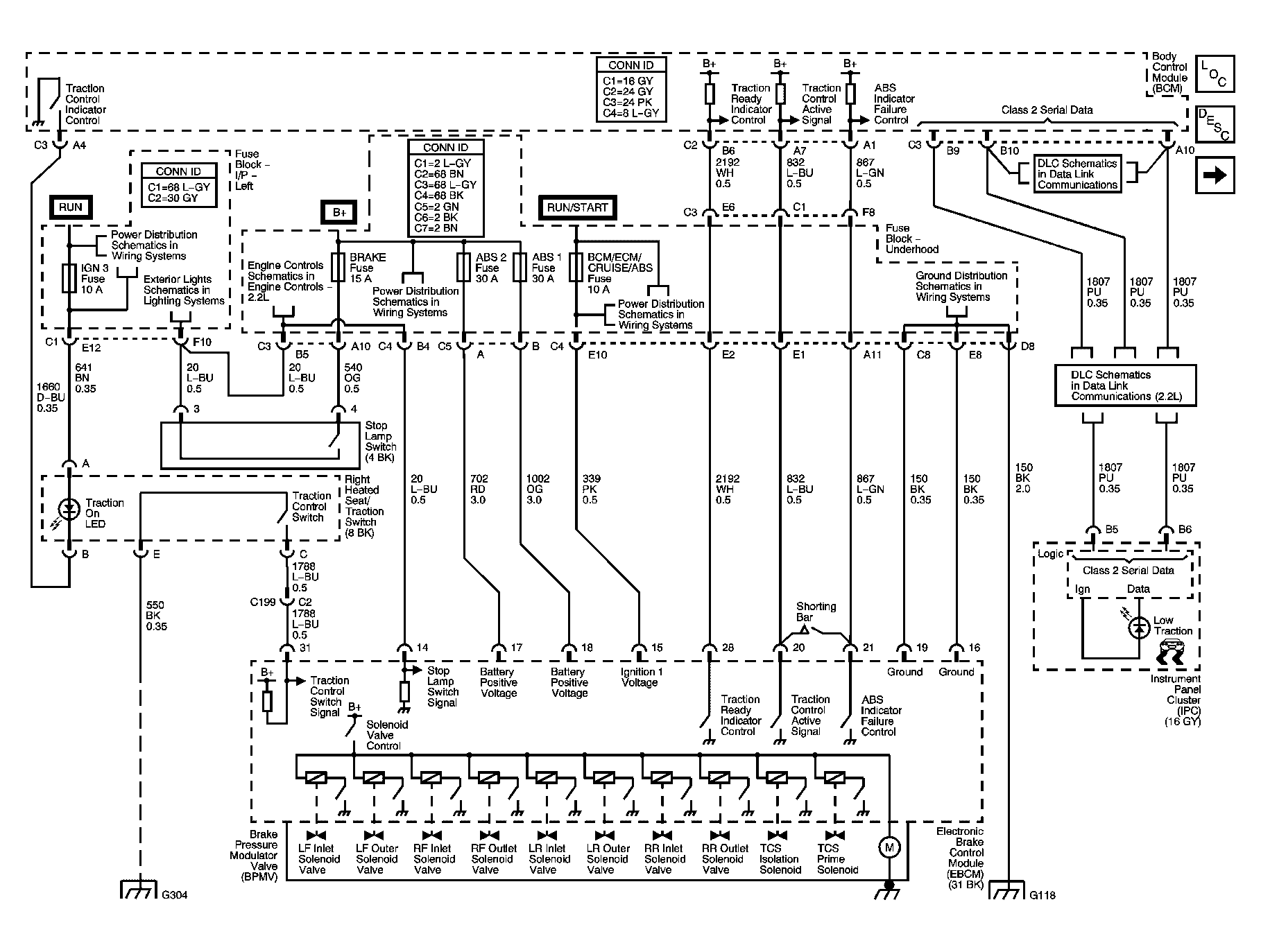

Fig 1: EBCM Power, Ground, Serial Data, and Switches- 2.2L Schematic

Courtesy of GENERAL MOTORS CORP.

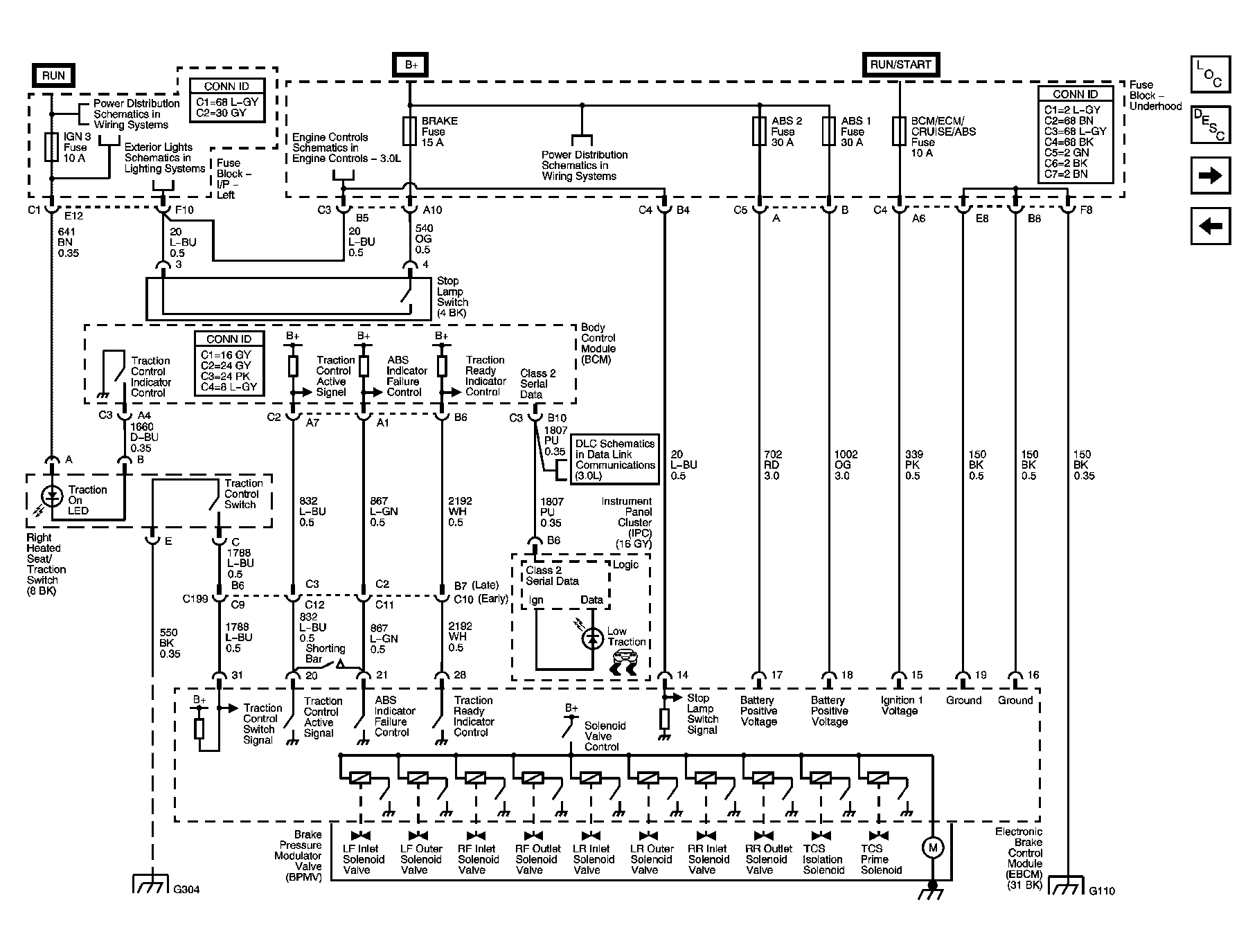

Fig 2: EBCM Power, Ground, Serial Data, and Switches- 3.0L Schematic

Courtesy of GENERAL MOTORS CORP.

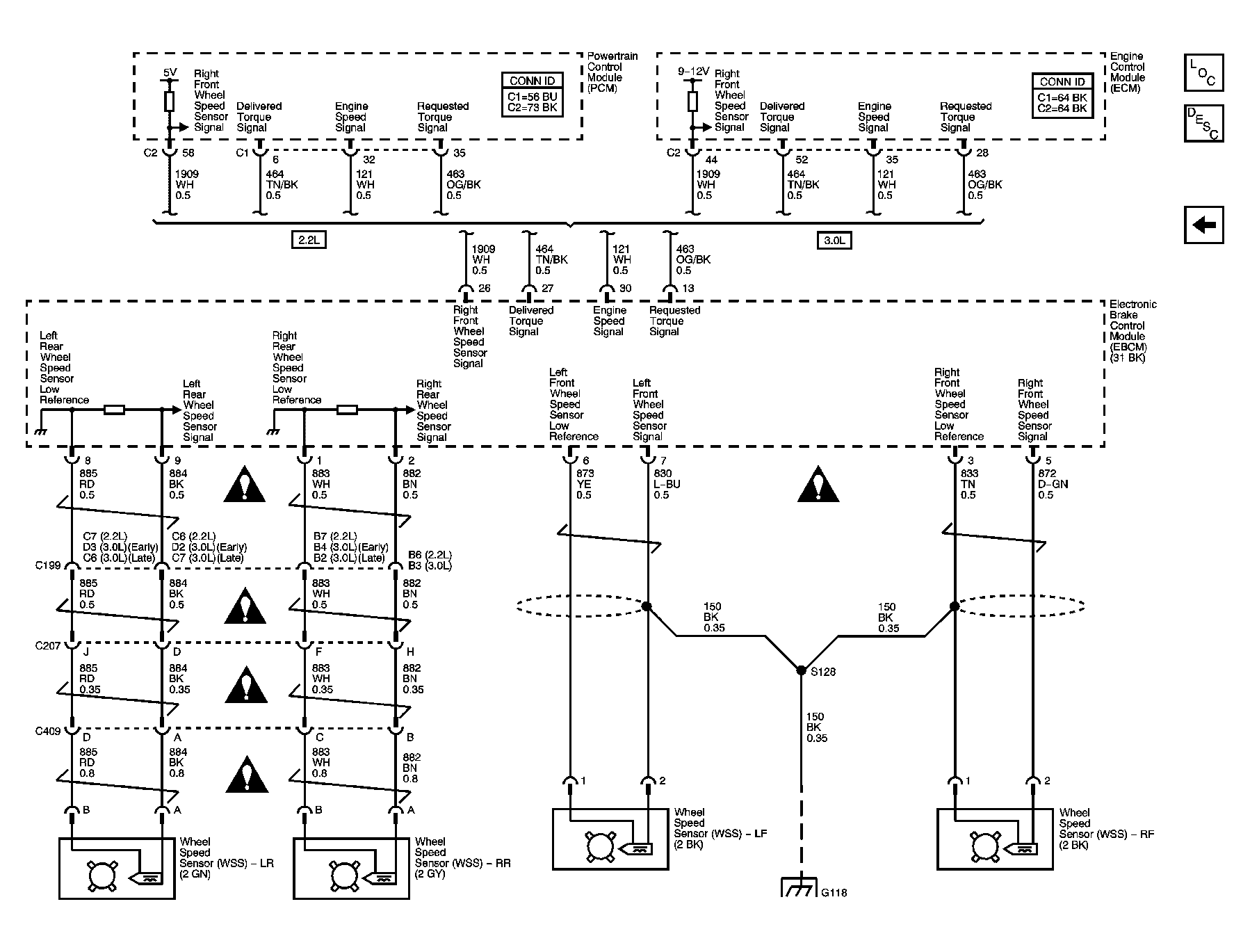

Fig 3: Wheel Speed Sensors Schematic

Courtesy of GENERAL MOTORS CORP.
