Diagnostic Procedure

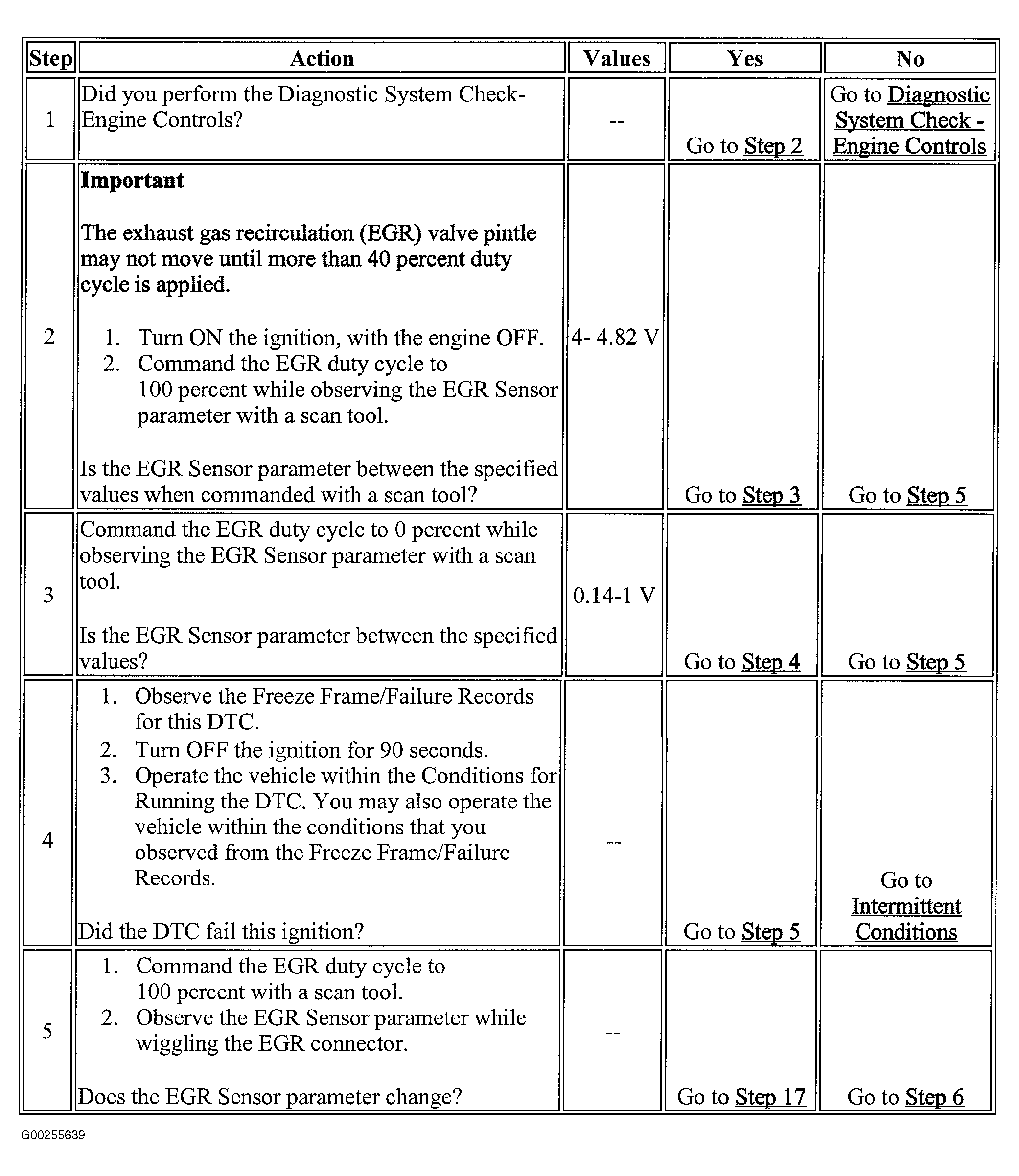

Fig 1: DTC P1406: EGR Pintle Position Error (Steps 1-5)

Courtesy of GENERAL MOTORS CORP.

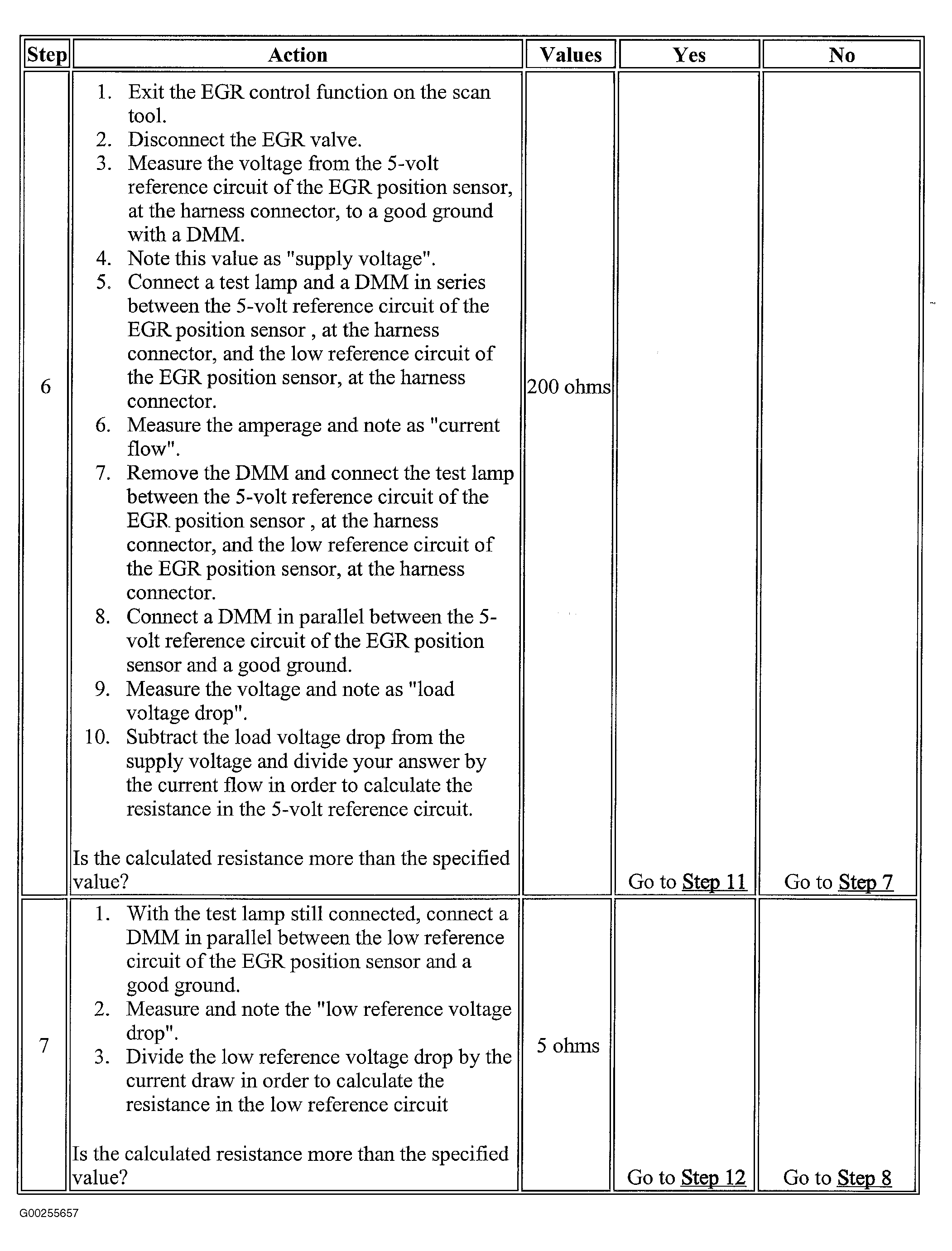

Fig 2: DTC P1406: EGR Pintle Position Error (Steps 6 & 7)

Courtesy of GENERAL MOTORS CORP.

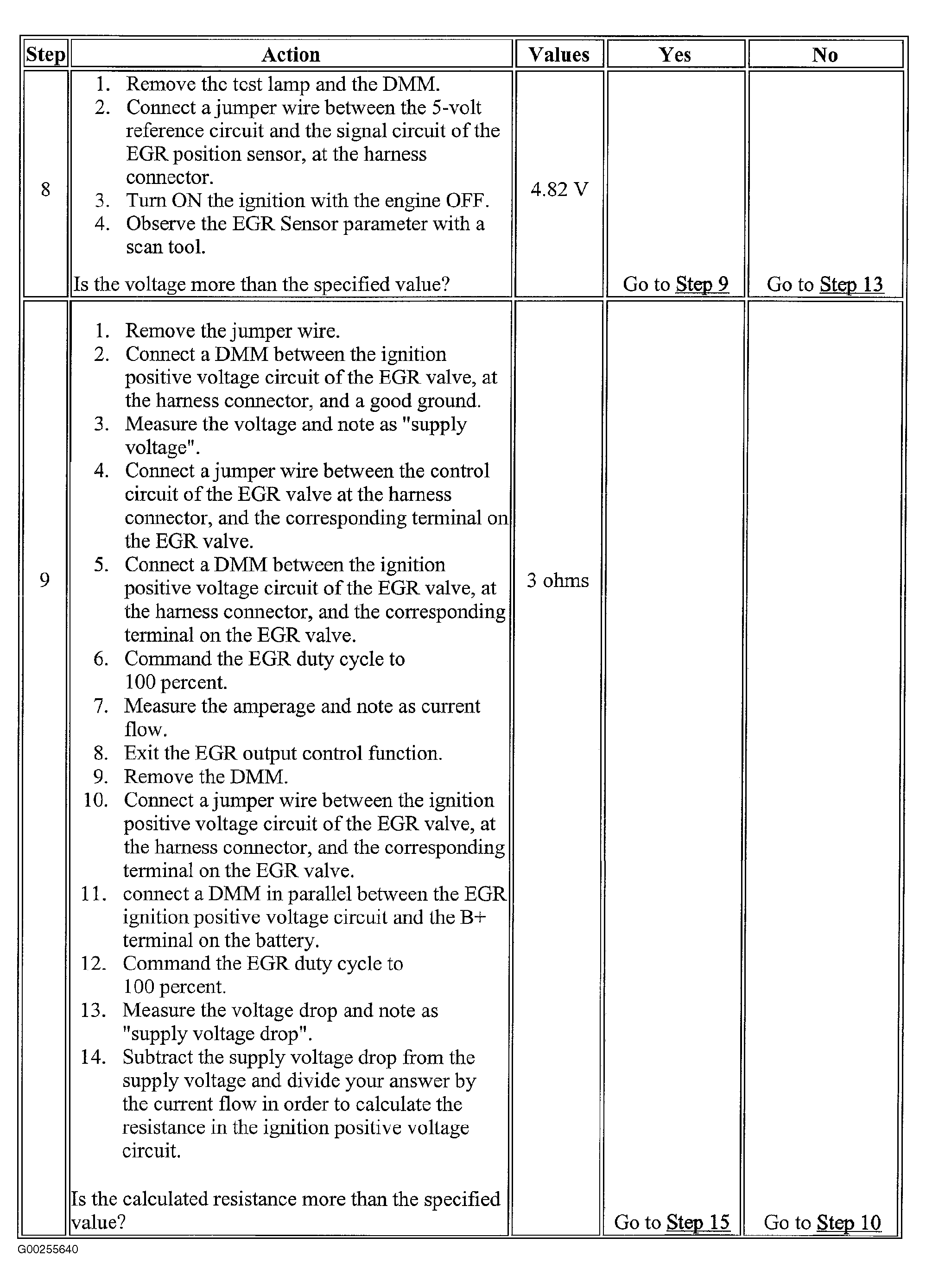

Fig 3: DTC P1406: EGR Pintle Position Error (Steps 8 & 9)

Courtesy of GENERAL MOTORS CORP.

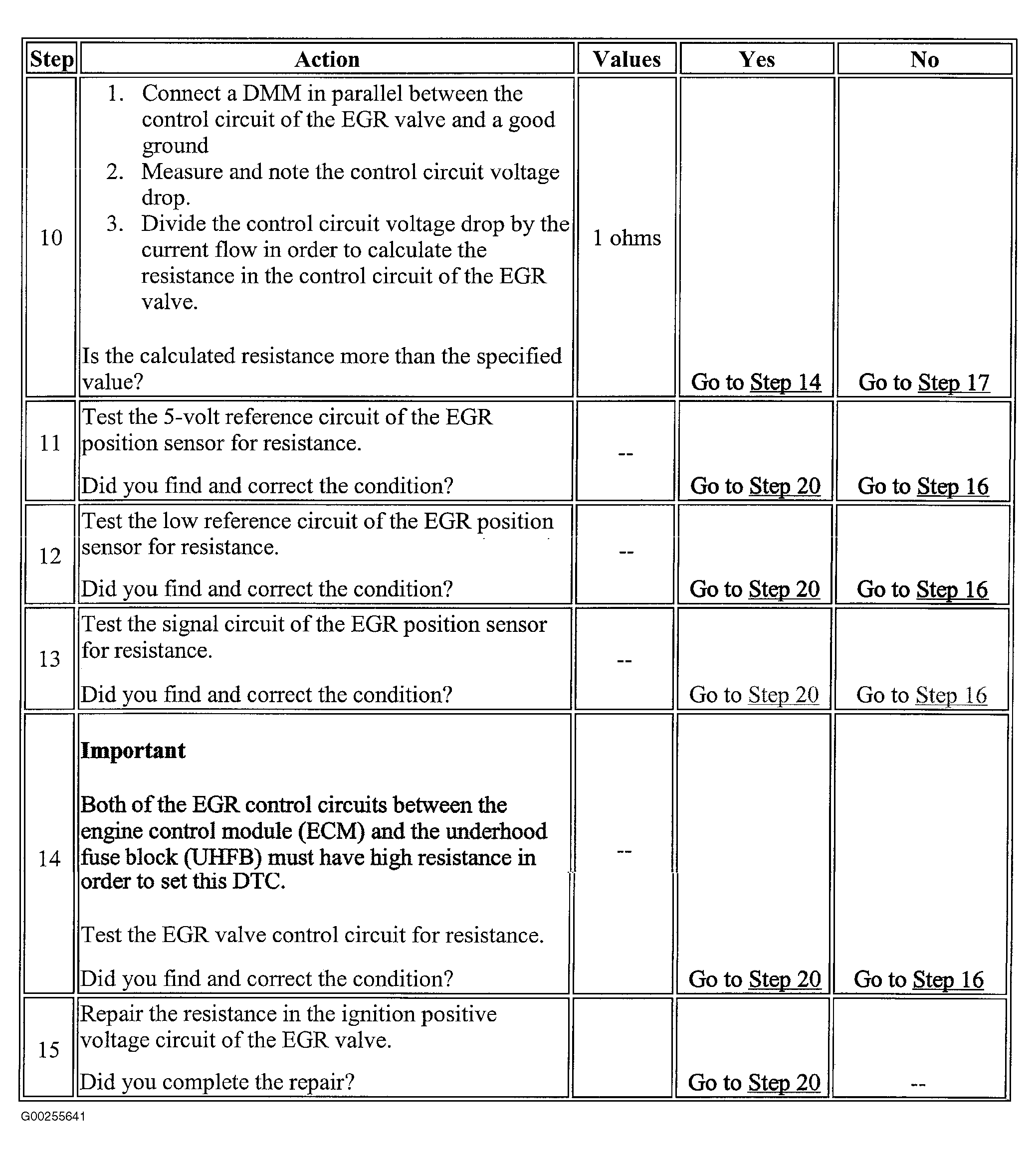

Fig 4: DTC P1406: EGR Pintle Position Error (Steps 10-15)

Courtesy of GENERAL MOTORS CORP.

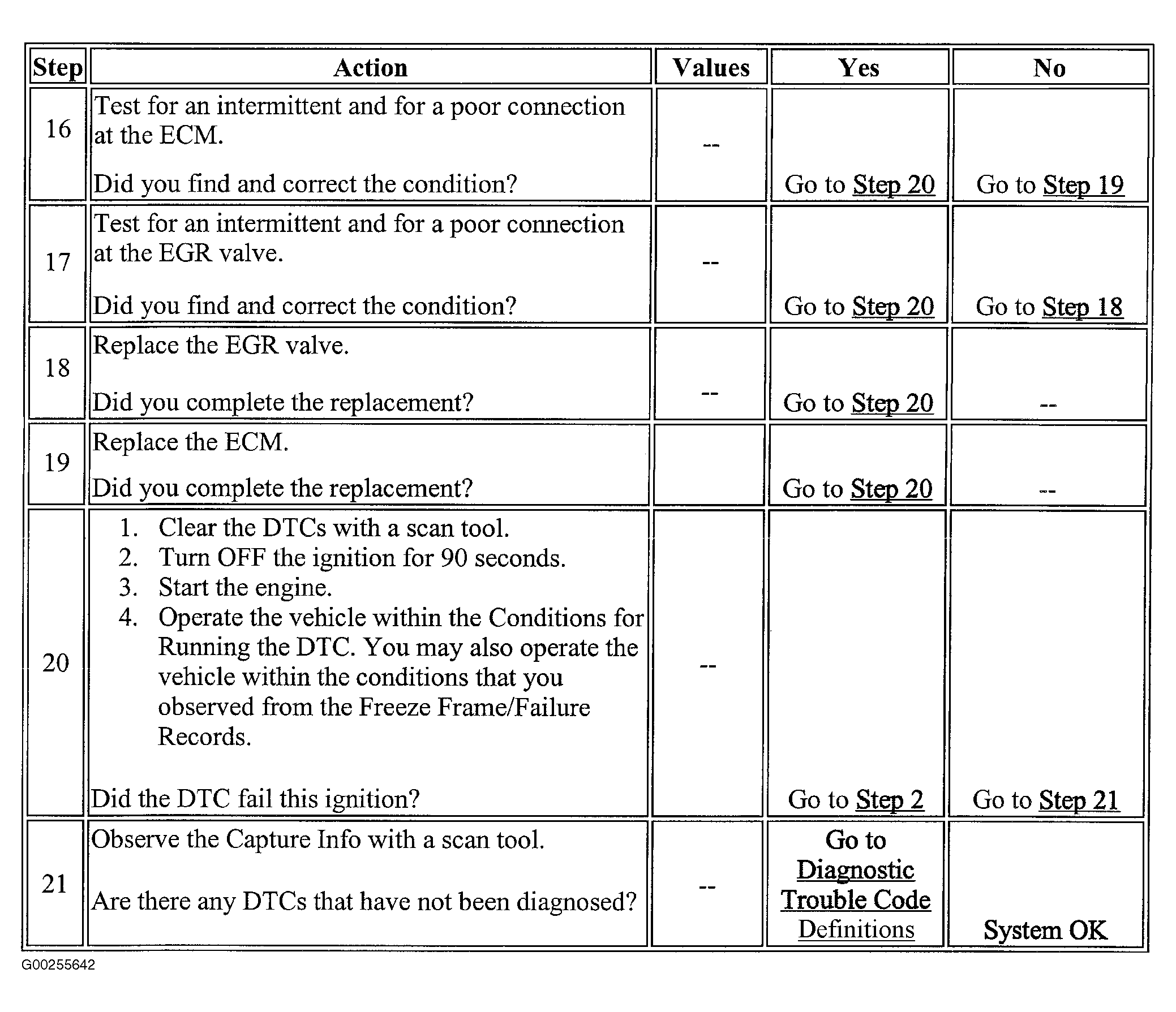

Fig 5: DTC P1406: EGR Pintle Position Error (Steps 16-21)

Courtesy of GENERAL MOTORS CORP.
