Diagnostic Procedure

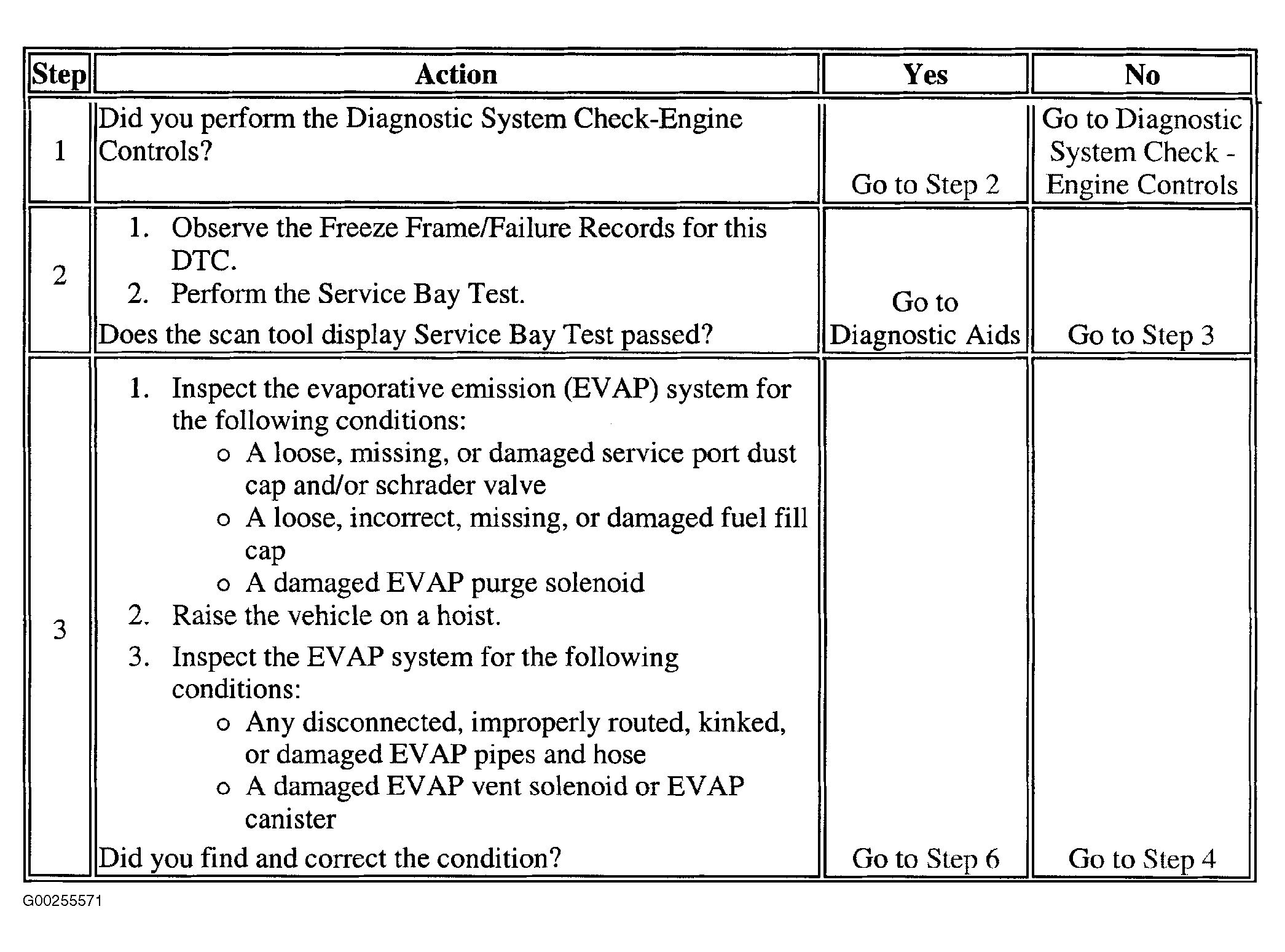

Fig 1: DTC P0442: EVAP System - Small Leak Detected (Steps 1-3)
G00255571Courtesy of GENERAL MOTORS CORP.

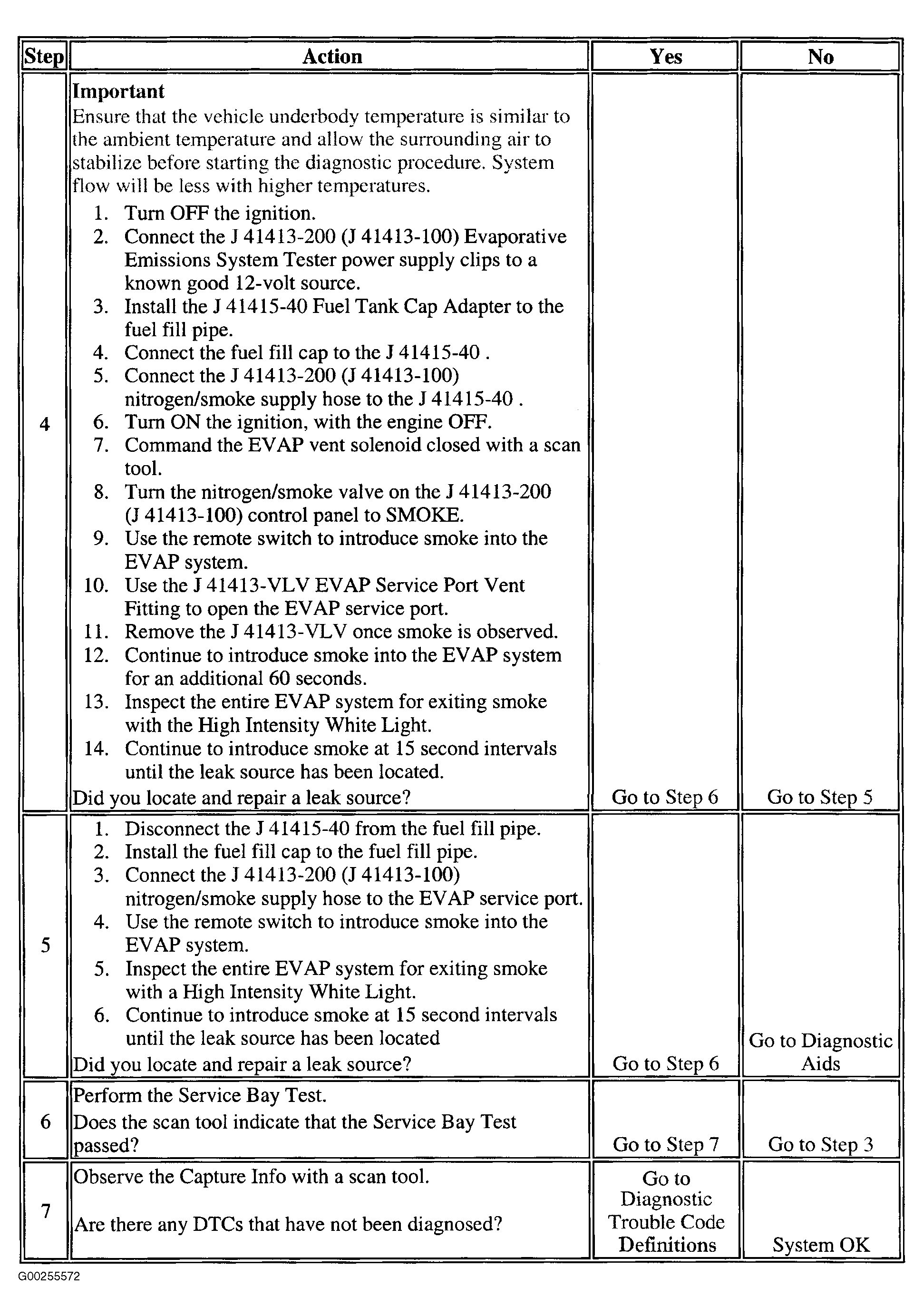

Fig 2: DTC P0442: EVAP System - Small Leak Detected (Steps 4-7)
G00255572Courtesy of GENERAL MOTORS CORP.
