Diagnostic Procedure

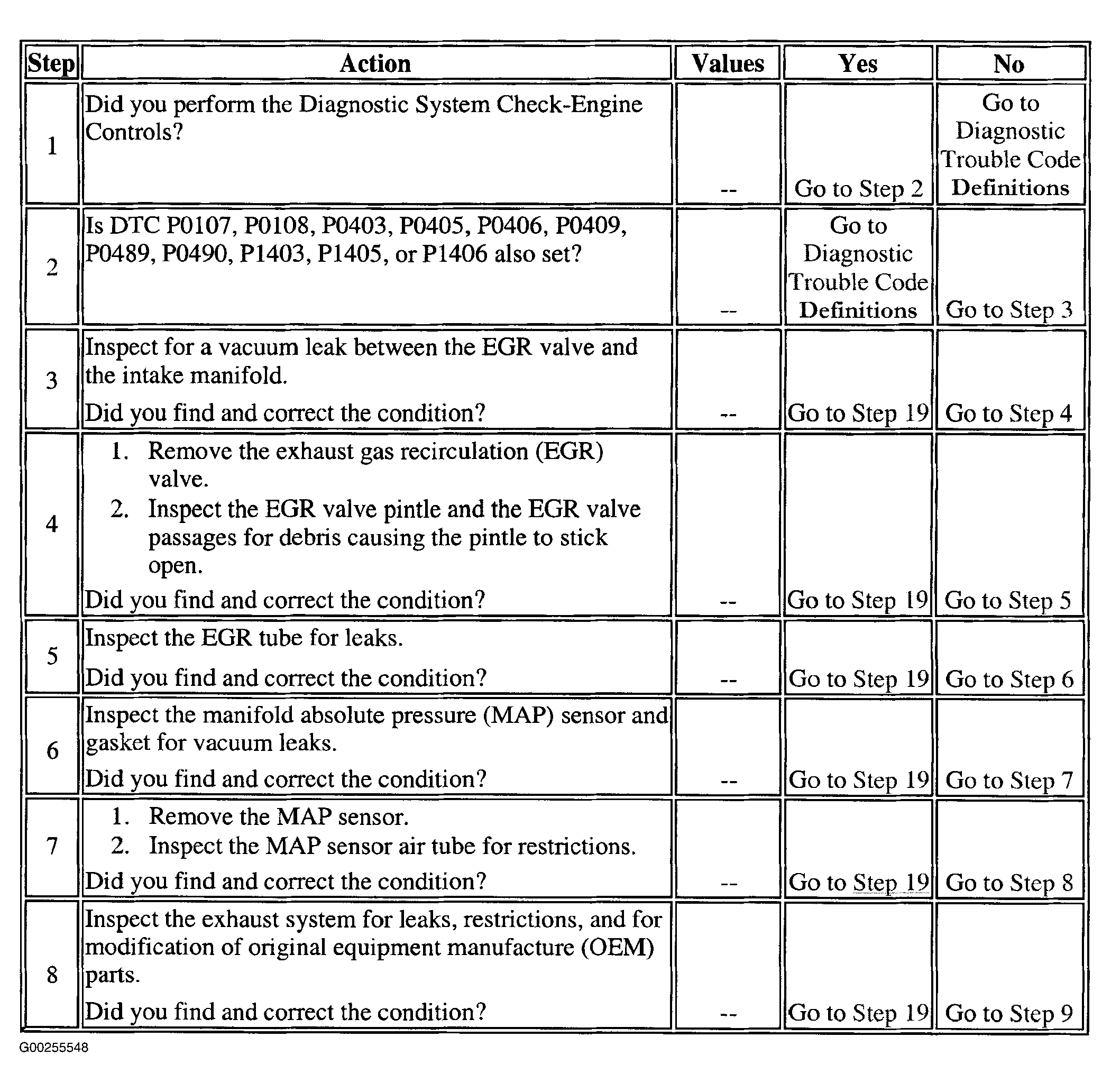

Fig 1: DTC P0402: EGR Flow Excessive (Steps 1-8)

Courtesy of GENERAL MOTORS CORP.

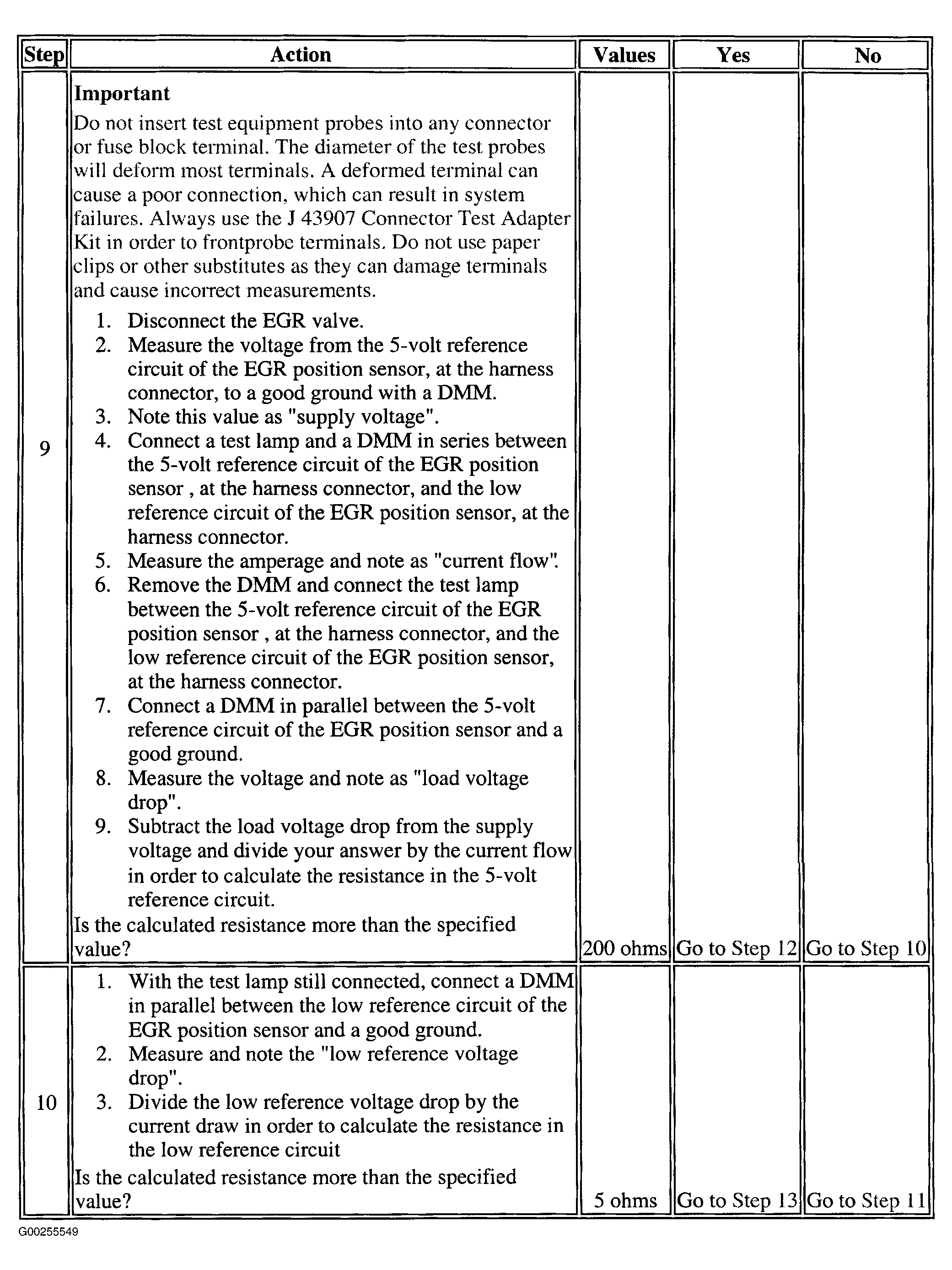

Fig 2: DTC P0402: EGR Flow Excessive (Steps 9 & 10)

Courtesy of GENERAL MOTORS CORP.

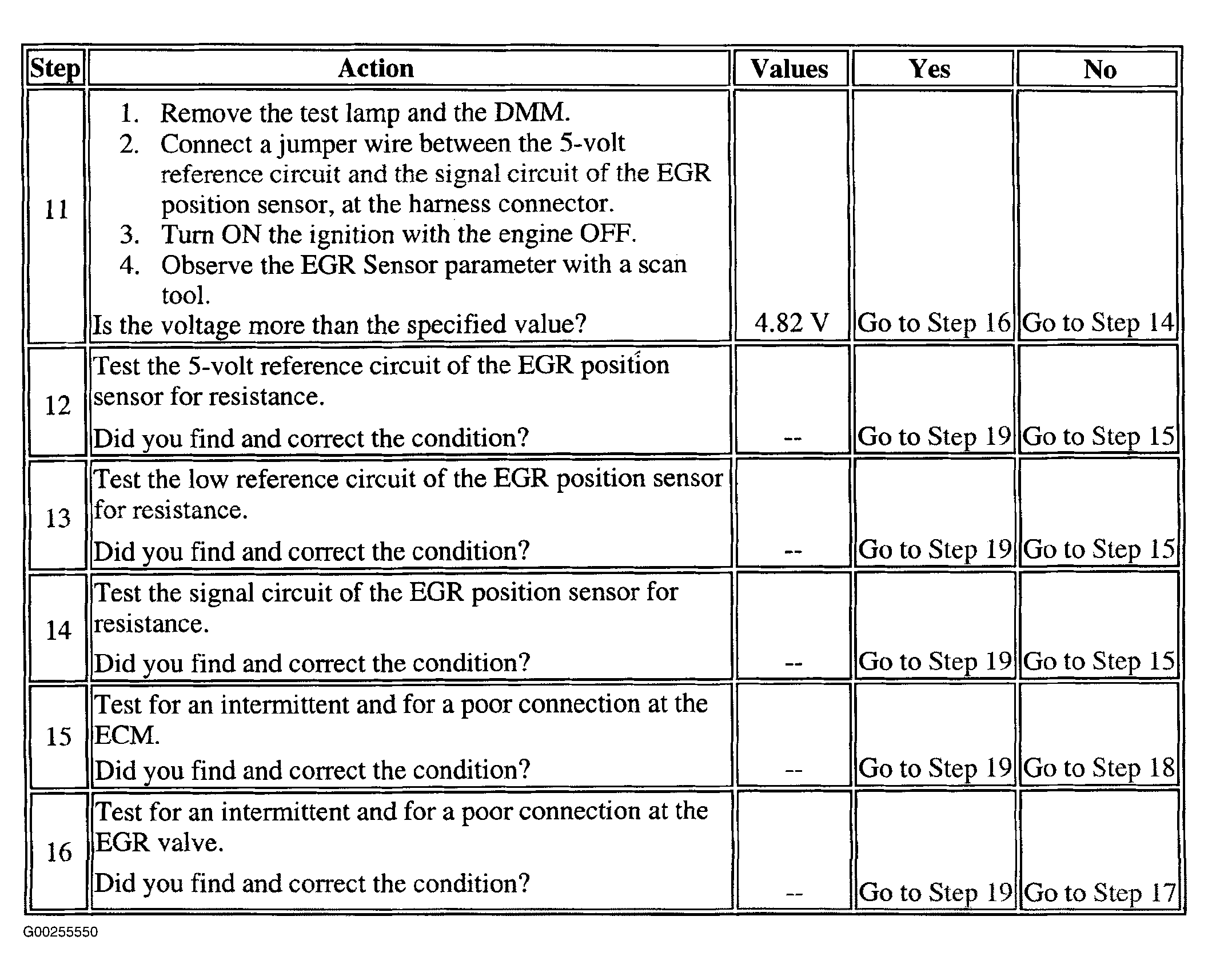

Fig 3: DTC P0402: EGR Flow Excessive (Steps 11-16)

Courtesy of GENERAL MOTORS CORP.

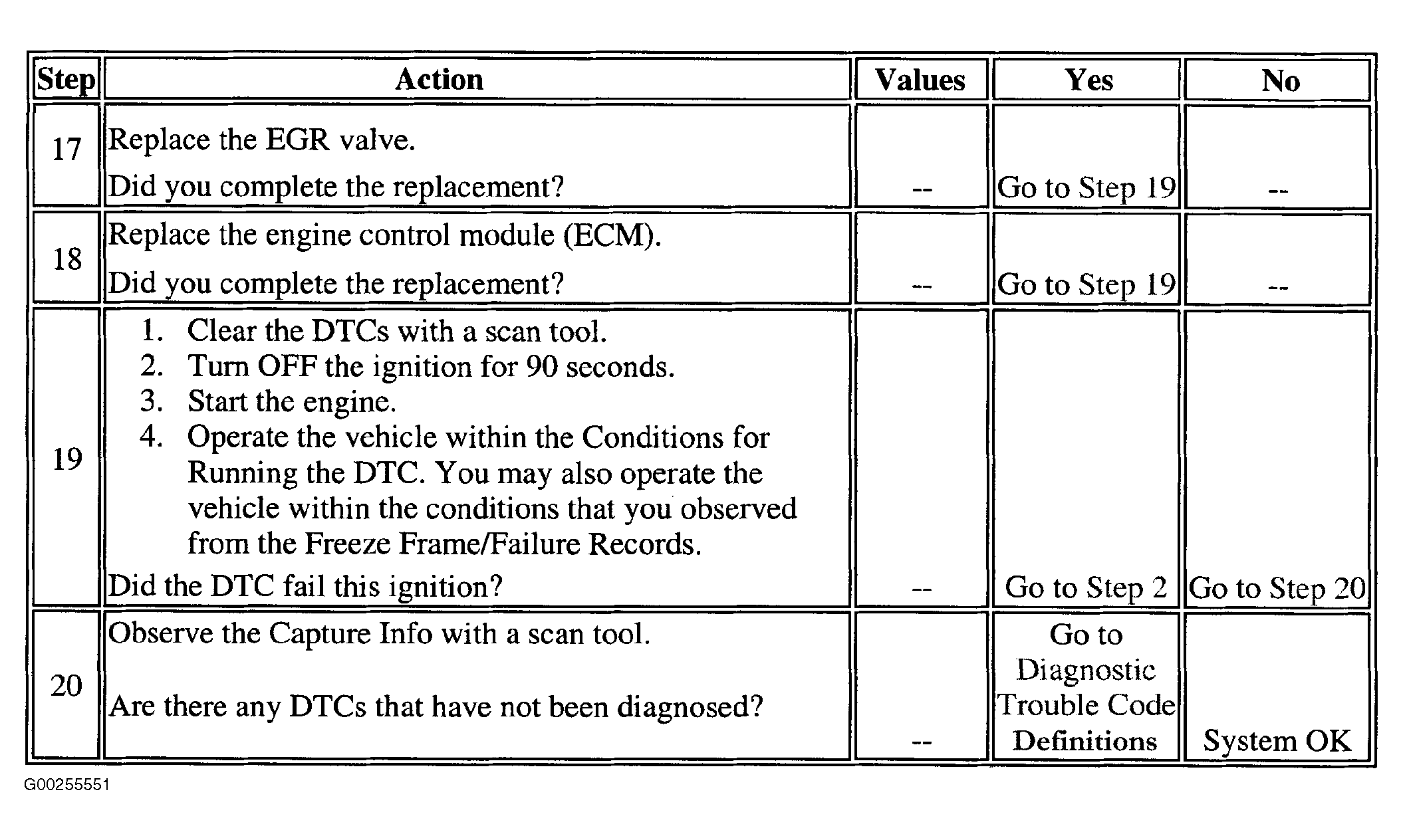

Fig 4: DTC P0402: EGR Flow Excessive (Steps 17-20)

Courtesy of GENERAL MOTORS CORP.
