Shift Control Lever: Removal

  1. Pull up on the control lever boot to disengage from the console.
  2. Using a small screwdriver, remove the lever assembly retaining clip. See Fig 1 .
  3. Remove the lever assembly. See Fig 2 .

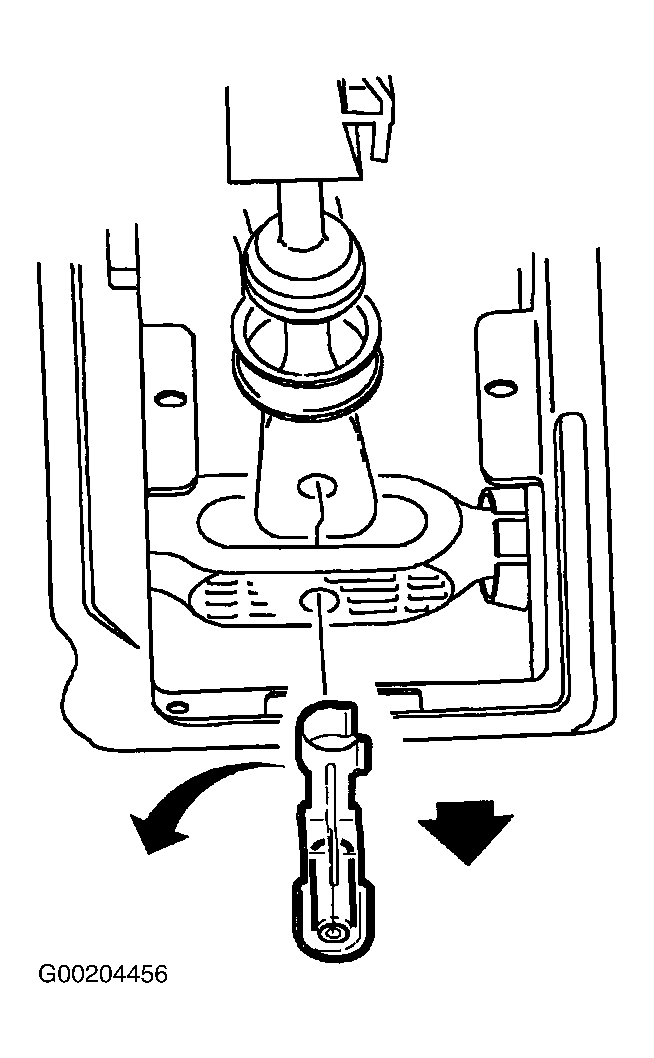

Fig 1: Removing Lever Assembly Retaining Clip
G00204456Courtesy of GENERAL MOTORS CORP.

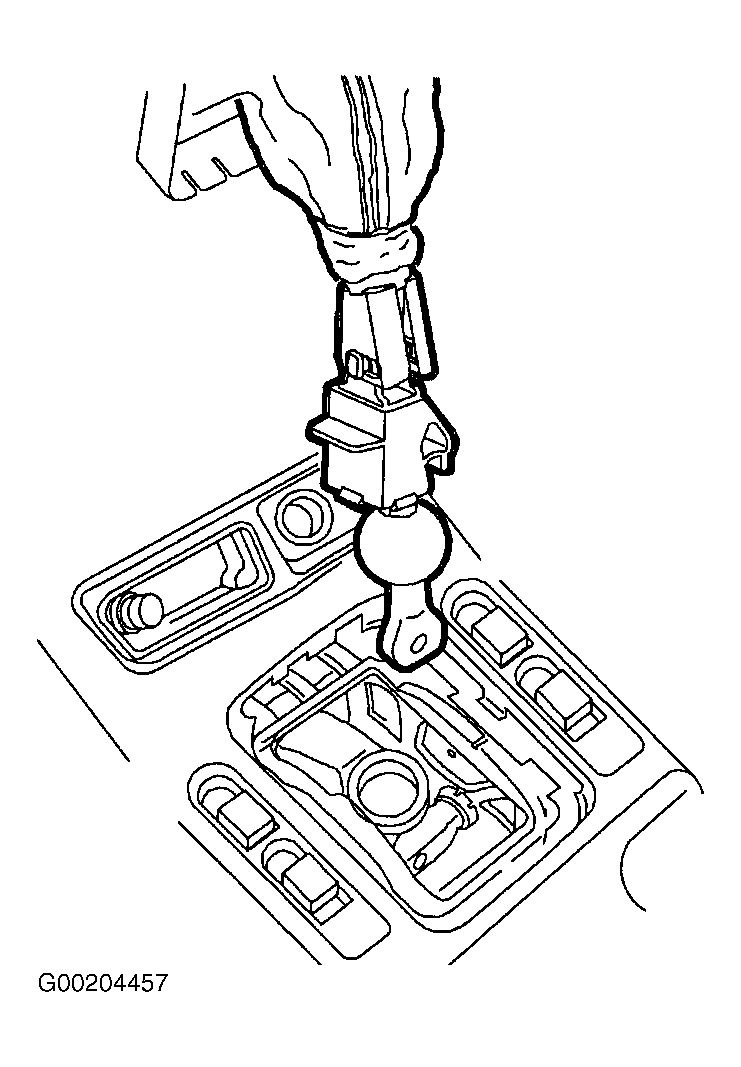

Fig 2: Removing Lever Assembly
G00204457Courtesy of GENERAL MOTORS CORP.
