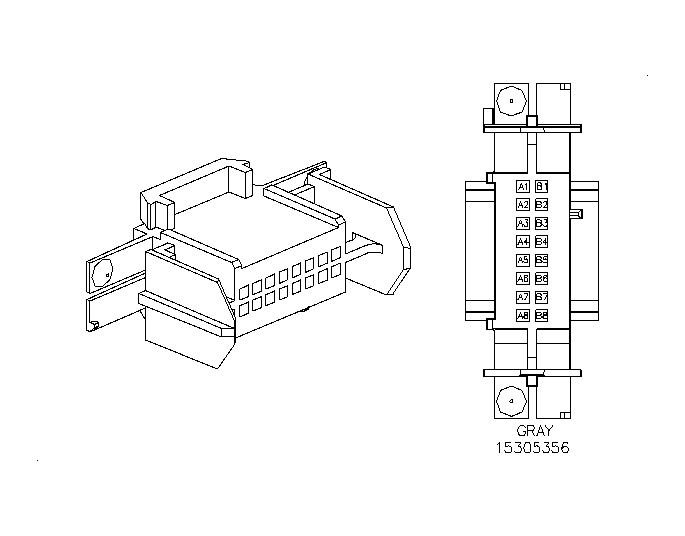

Instrument Panel Cluster (IPC) Connector End View
Instrument Panel Cluster (IPC)
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit Number | Function |
| A1 | PK | 39 | Ignition 1 Voltage |
| A2 | D-GN | 264 | Security Indicator Supply Voltage |
| A3 | -- | -- | Not Used |
| A4 | D-BU | 15 | Right Turn Signal Lamps Supply Voltage |
| A5 | L-BU | 14 | Left Turn Signal Lamps Supply Voltage |
| A6 | BK | 550 | Ground |
| A7 | -- | -- | Not Used |
| A8 | GY | 8 | Instrument Panel Lamp Supply Voltage |
| B1 | -- | -- | Not Used |
| B2 | OG | 2540 | Battery Positive Voltage |
| B3 | -- | -- | Not Used |
| B4 | BK | 350 | Ground |
| B5 | PU | 1807 | Class 2 Serial Data |
| B6 | PU | 1807 | Class 2 Serial Data |
| B7-B8 | -- | -- | Not Used |
