Removal Procedure

  1. Remove the front door trim panel. Refer to Trim Panel Replacement - Side Front Door .

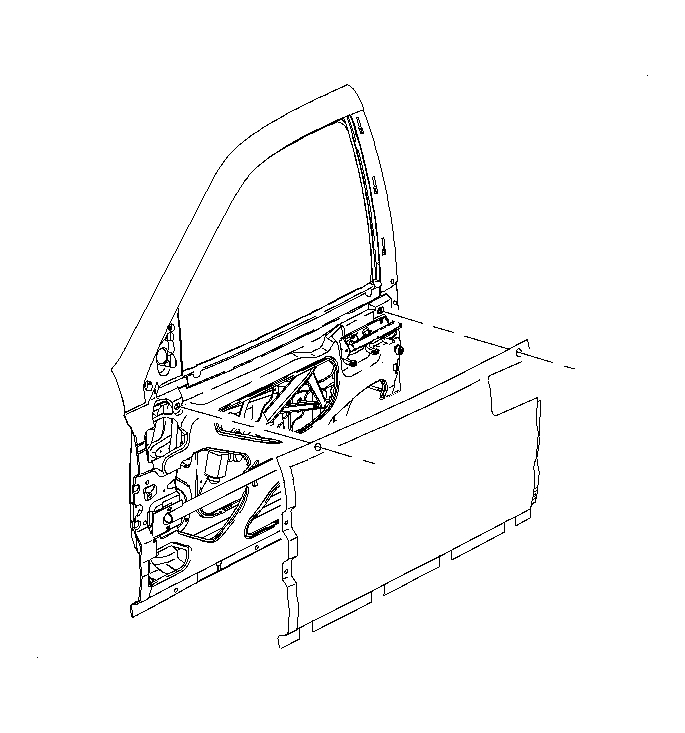

    2. Fig 1: Removing & Installing Front Door Sound Insulator
    GM893613Courtesy of GENERAL MOTORS CORP.
  2. Remove the sound insulator. Apply only enough pressure to release the insulator from the door panel.
