Battery Tray: Service and Repair

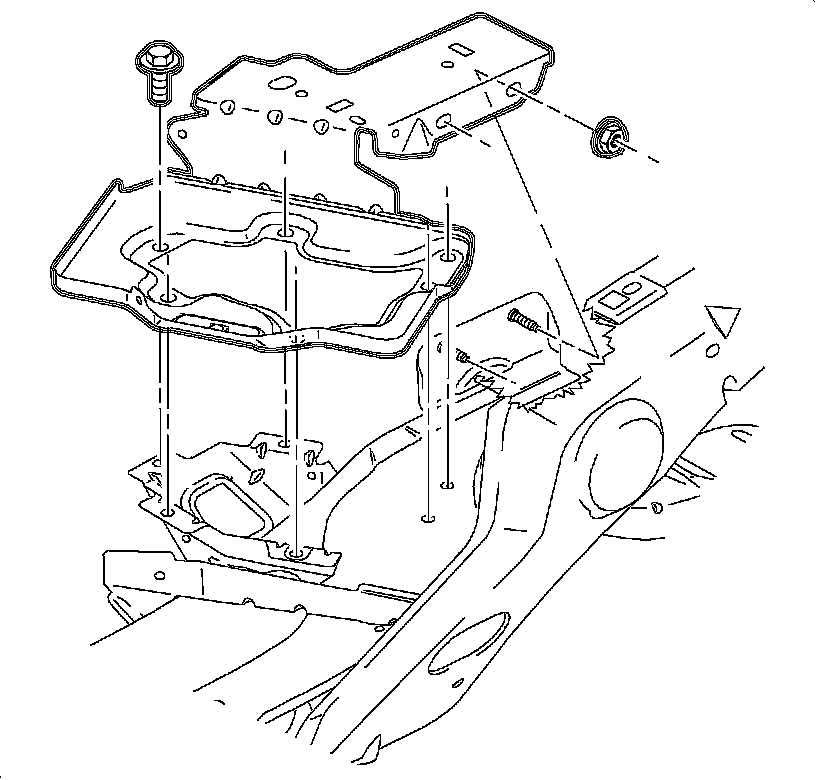

Battery Tray Replacement

Removal Procedure




1. Remove the battery. Refer to Battery Replacement in Engine Electrical.
2. Remove the battery tray bolts.
3. Remove the battery tray.

Installation Procedure




1. Install the battery tray.

Notice: Refer to Fastener Notice in Cautions and Notices.

2. Install the battery tray bolts.

Tighten the battery tray bolts to 5 Nm (44 lb in).

3. Install the battery. Refer to Battery Replacement in Engine Electrical.
