Air Injection: Service and Repair

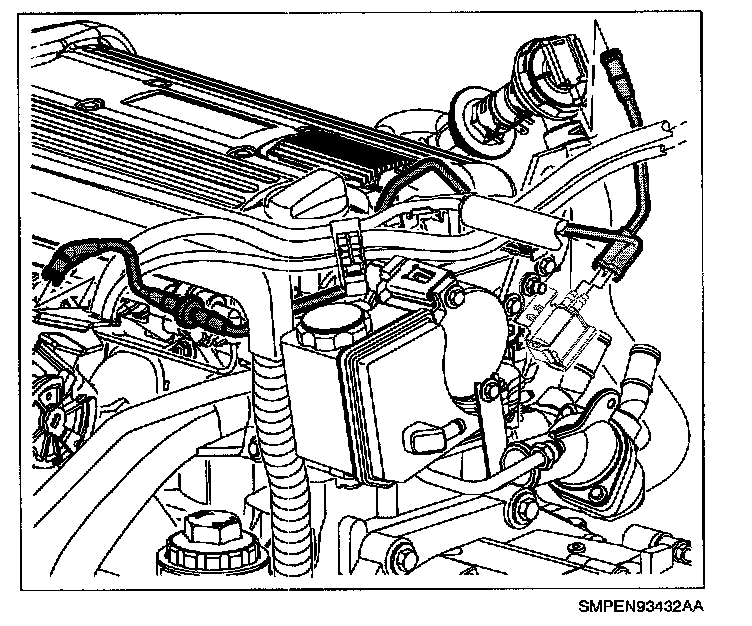

AIR VACUUM HARNESS

REMOVAL

1. Remove vacuum line from check valve.
2. Remove vacuum harness mounting clips from cam shaft cover studs.
3. Remove vacuum line from throttle body harness.

INSTALLATION

1. Install vacuum harness mounting clips onto cam shaft cover studs.
2. Install vacuum line into throttle body harness.
3. Install vacuum line onto check valve
