LEMON Manuals: Even more car manuals for everyone: 1960-2025

Home >> Saturn >> 2003 >> L200 L4-2.2L VIN F >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Transmission Position Sensor/Switch >> Diagrams >> Park Neutral Position Switch #2

July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

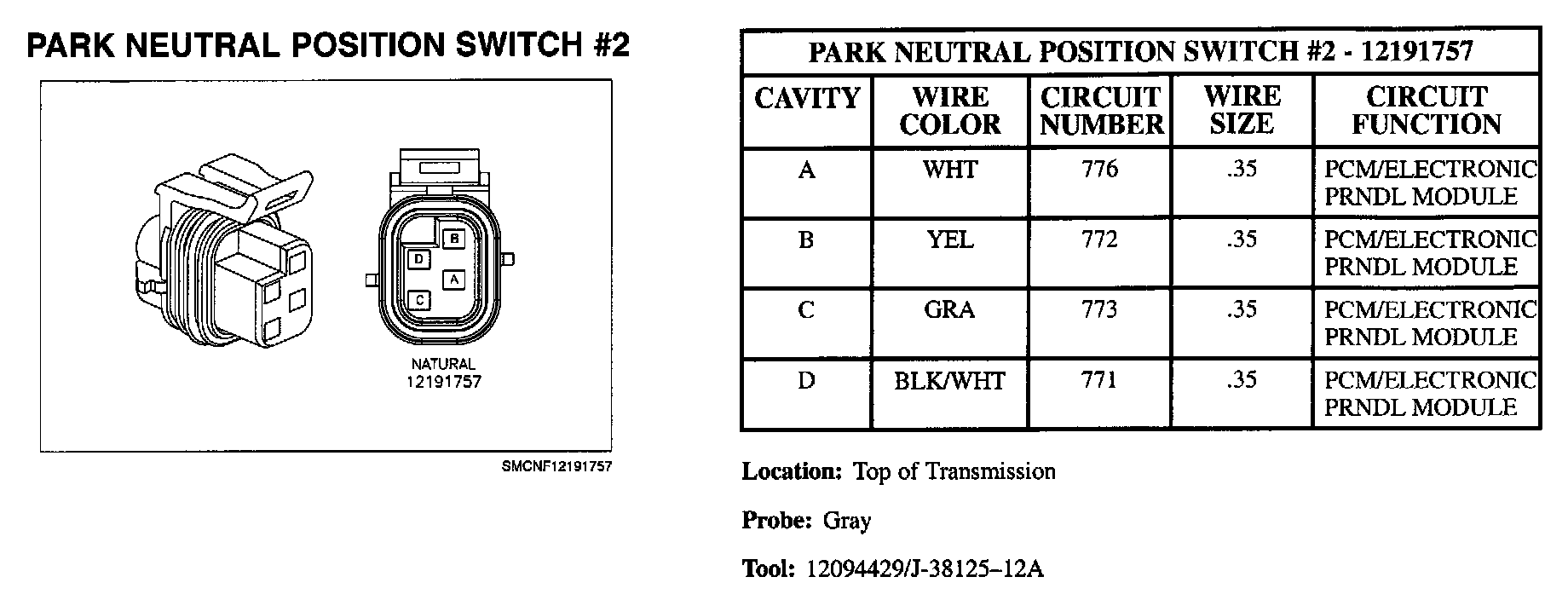

Park Neutral Position Switch #2

Park Neutral Position Switch #2:
