Bulbs

REMOVAL

1. Remove control head.

NOTE: Use care not to touch bulbs with bare fingers.

2. On auto climate vehicles only. remove screws from backing plate and remove bulbs.

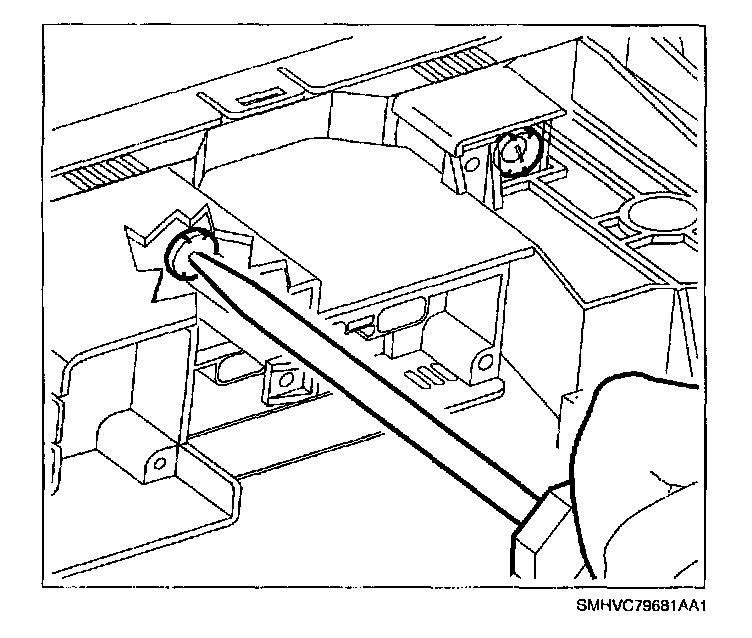

3. Use small flat blade screwdriver to rotate bulb base counter-clockwise.

INSTALLATION
1. Use small flat blade screwdriver to rotate bulb base clockwise.
2. On auto climate vehicles only assemble backing plate.
3. Install Control Head.
