Manual Transmission/Transaxle

EXPLODED VIEWS DIAGNOSTICS

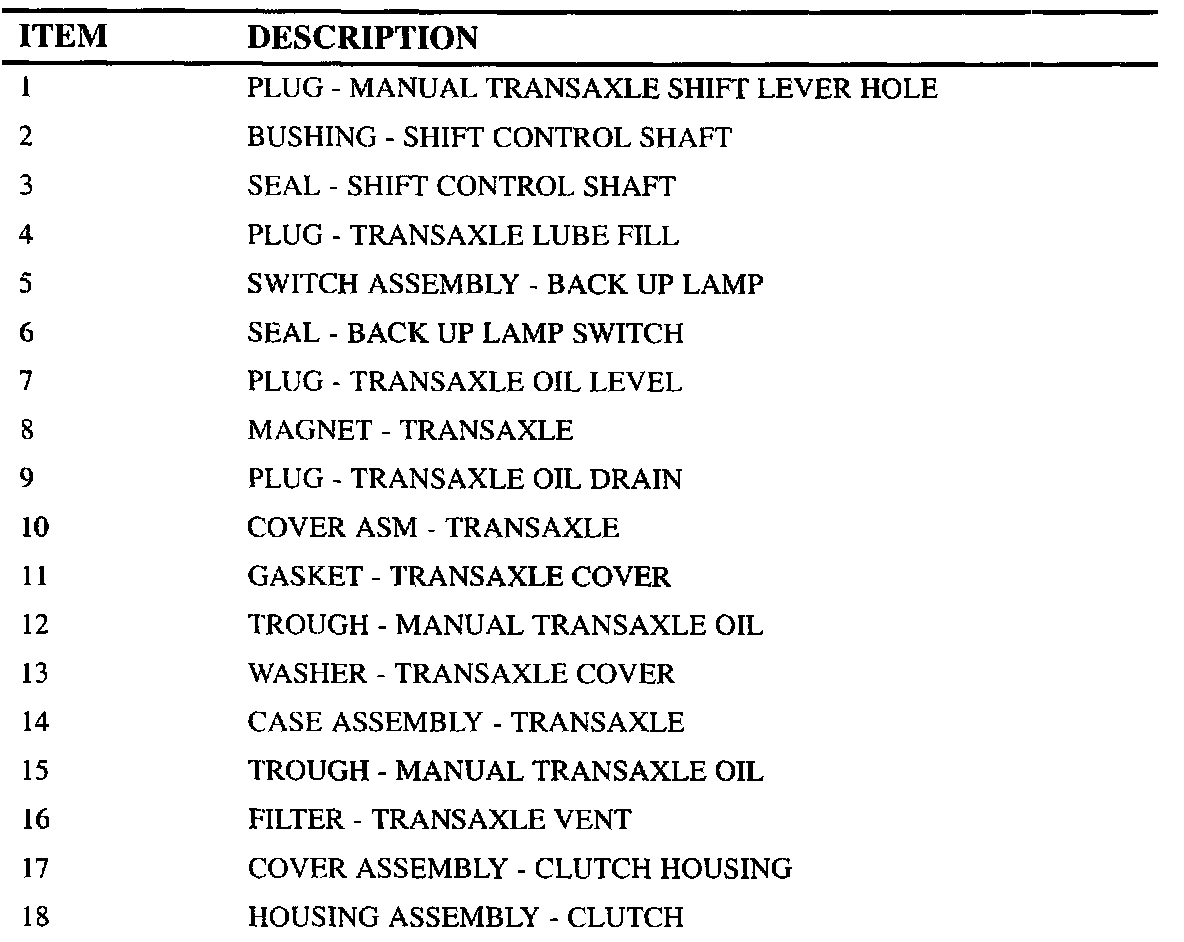

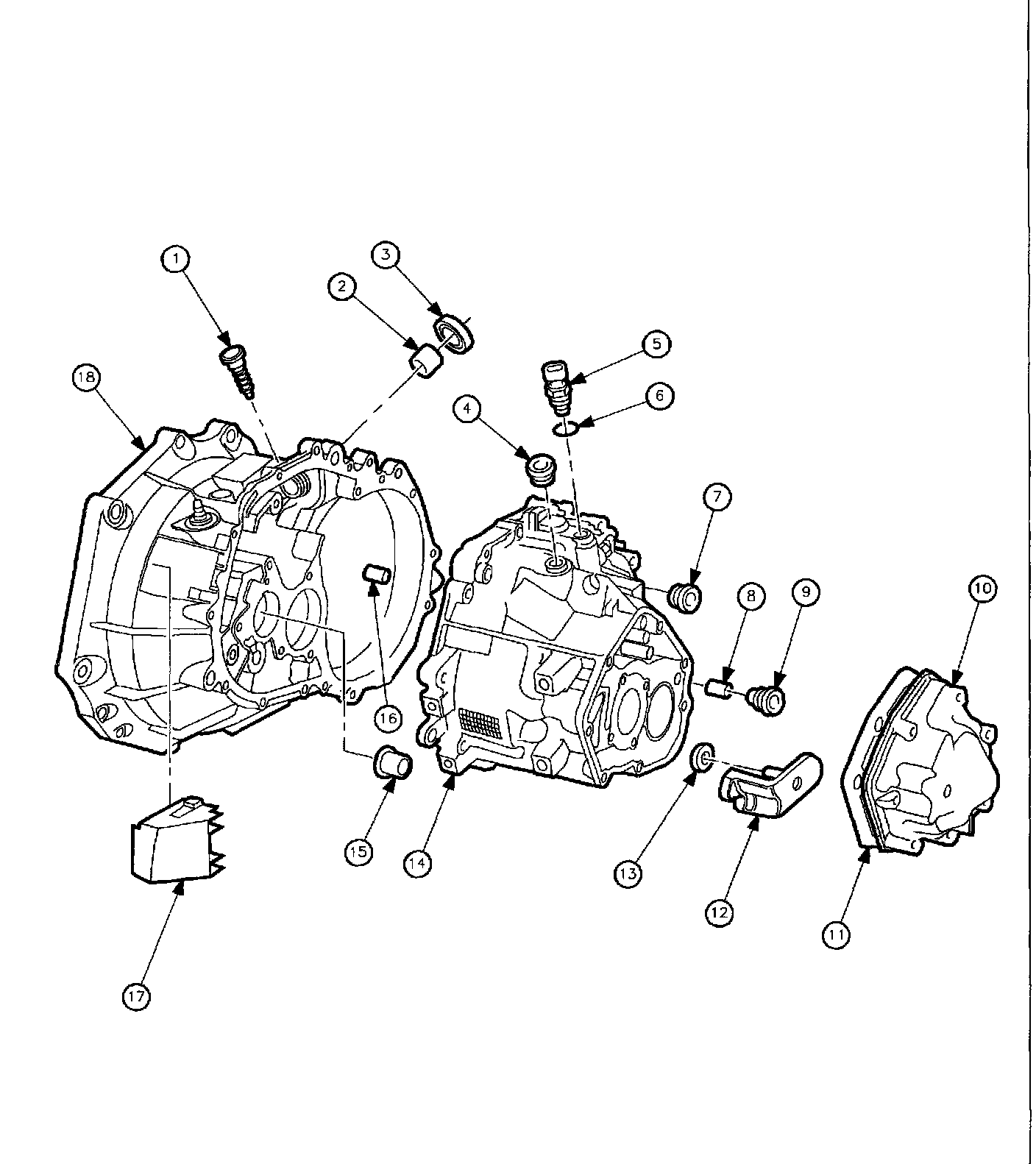

TRANSAXLE CASE AND CLUTCH HOUSING

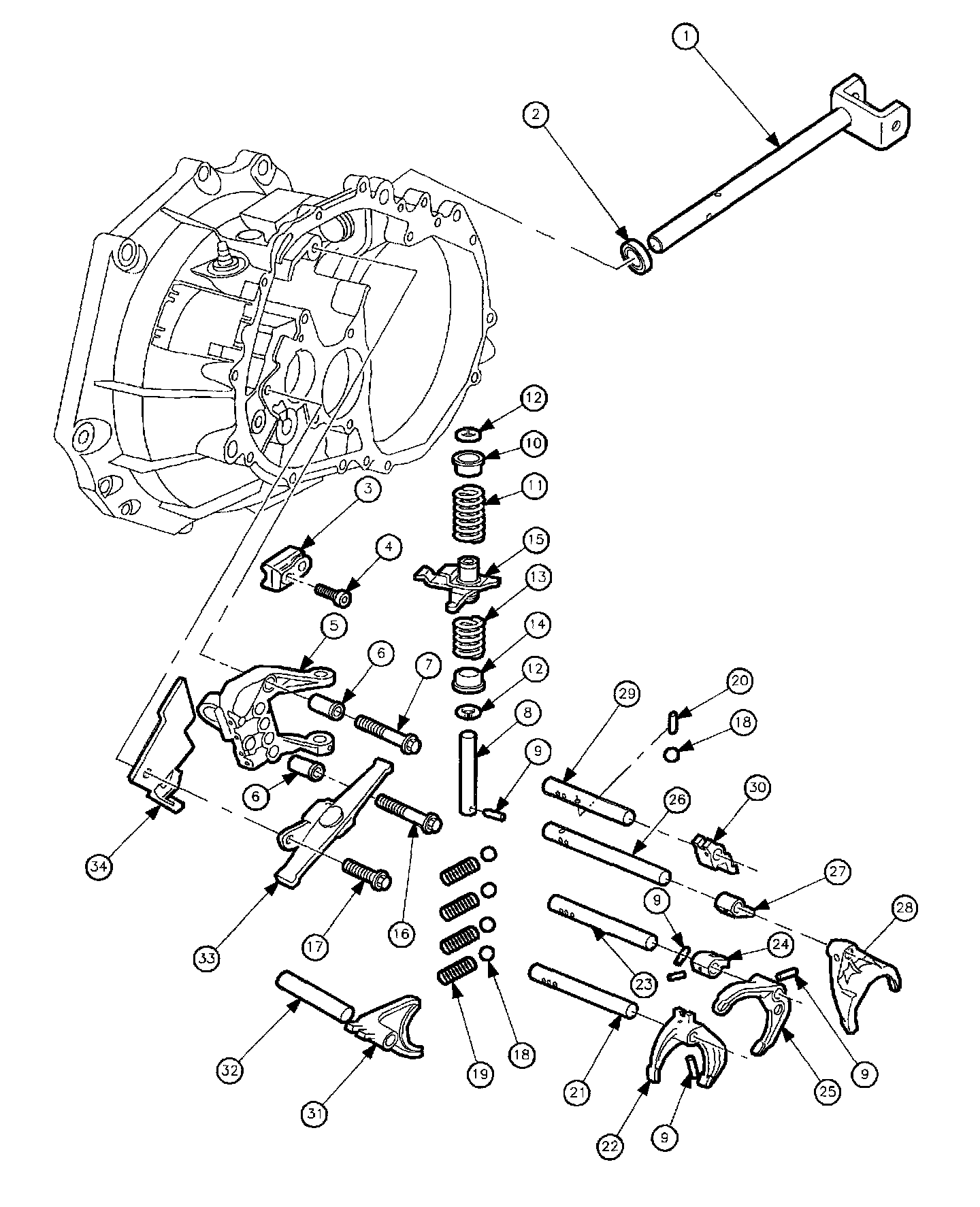

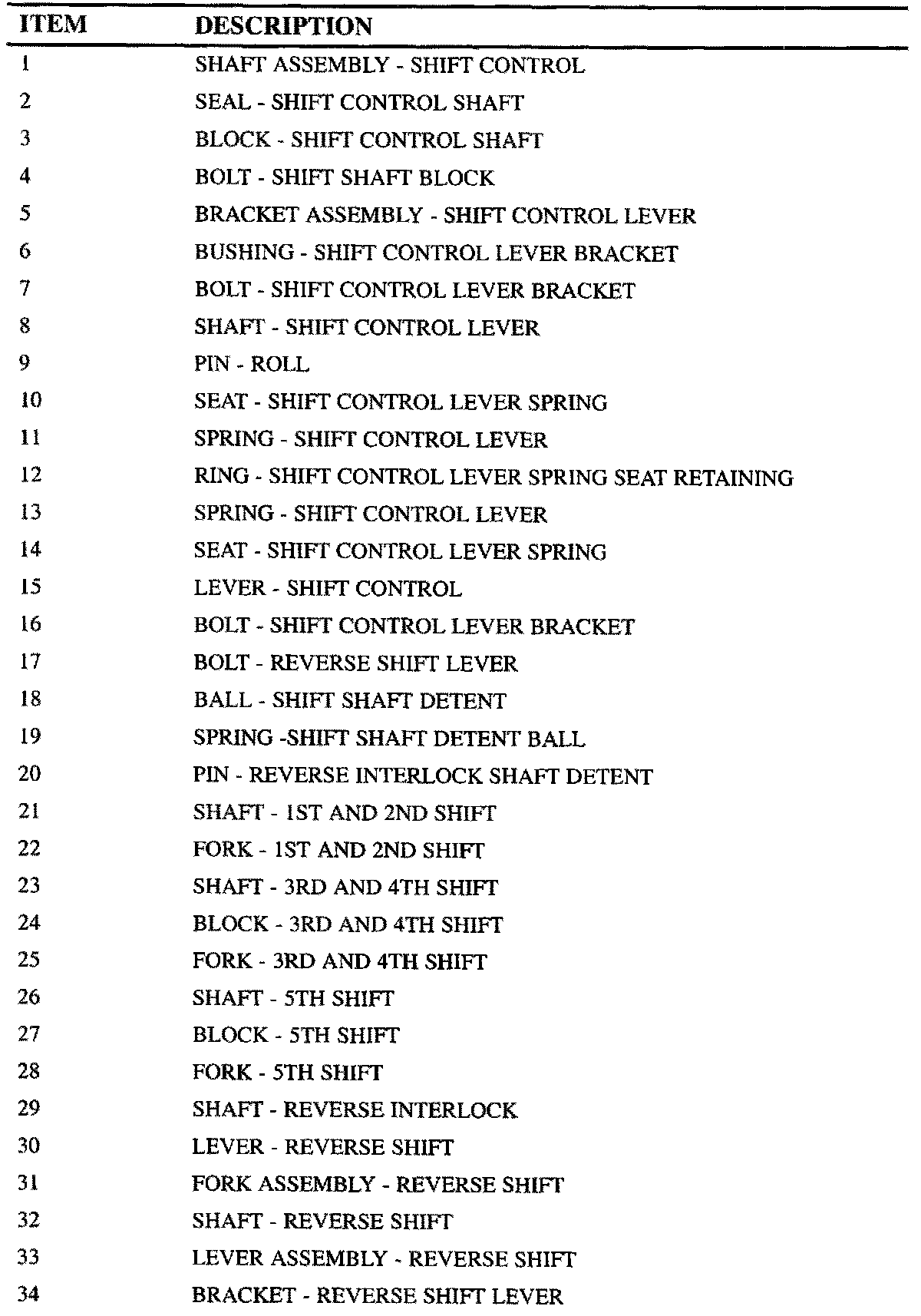

INTERNAL SHIFT MECHANISM

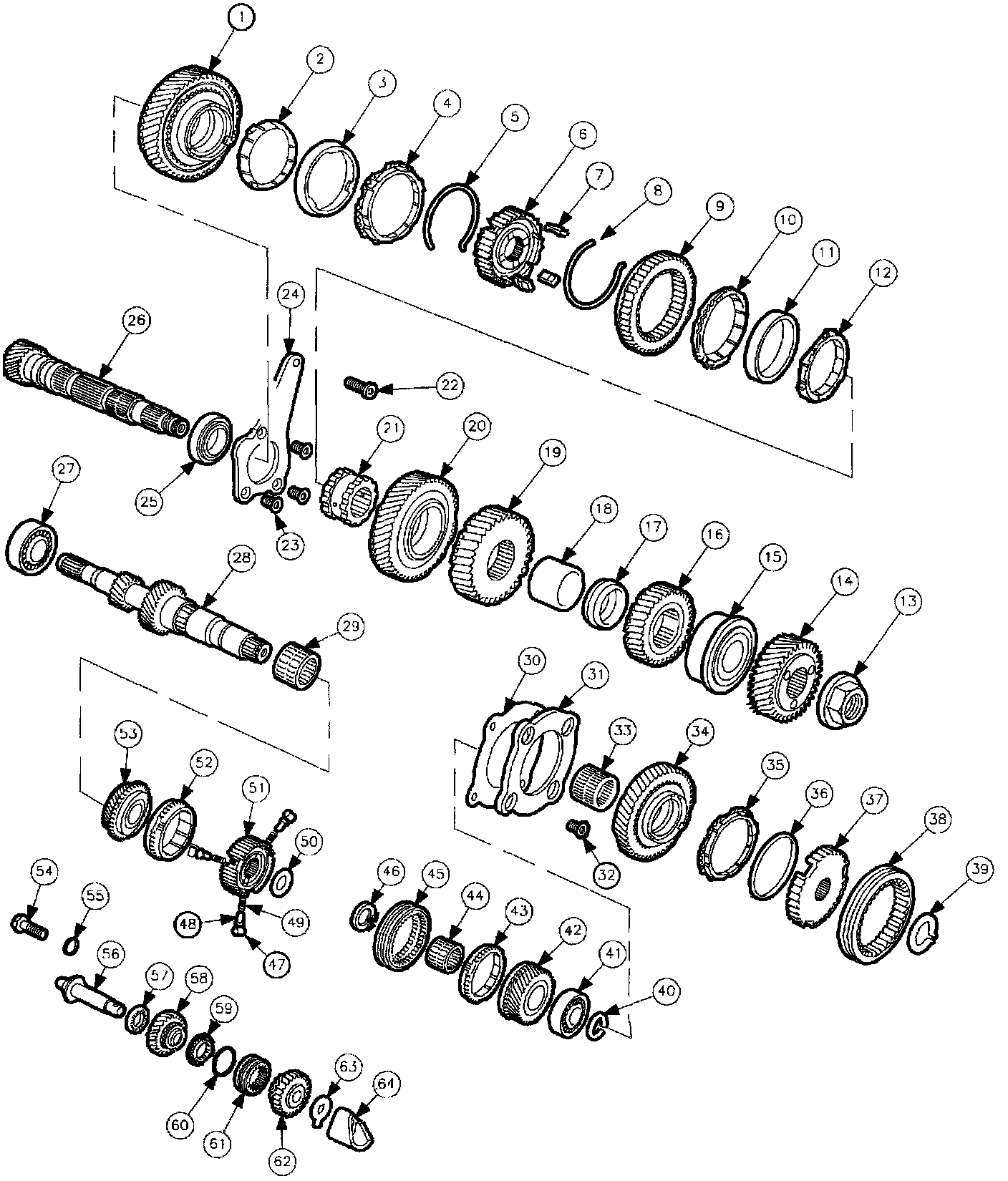

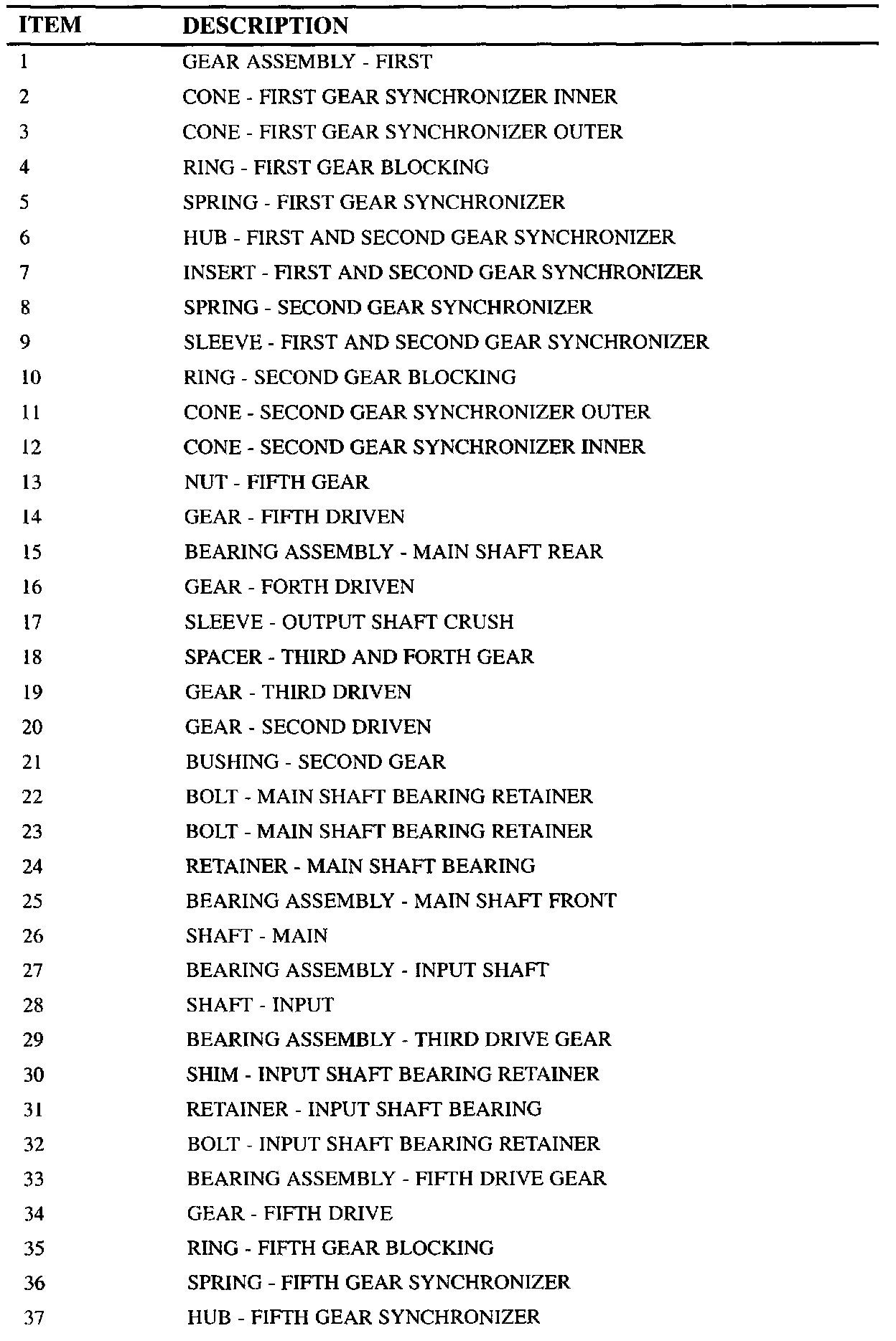

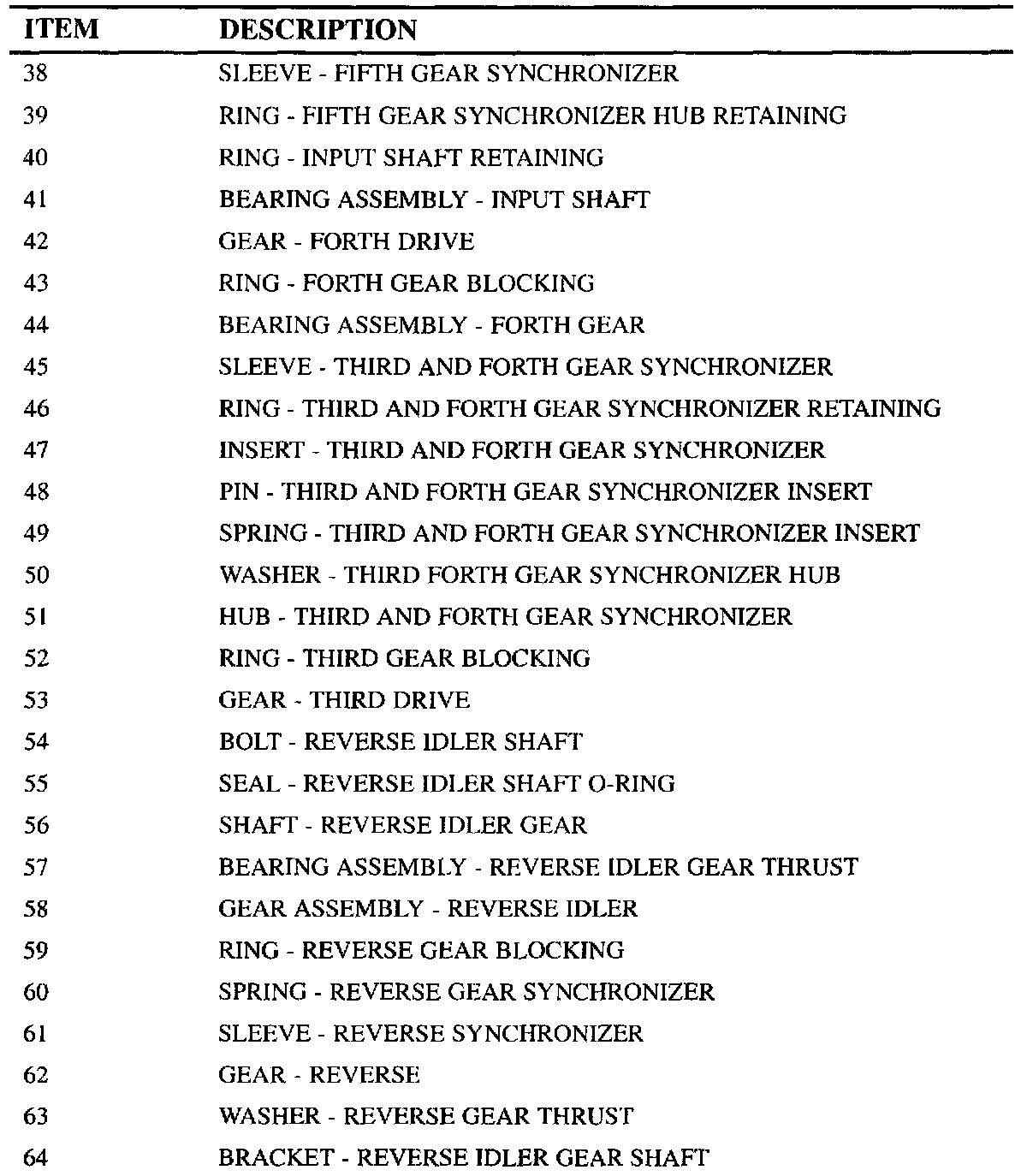

INPUT AND OUTPUT SHAFT COMPONENTS

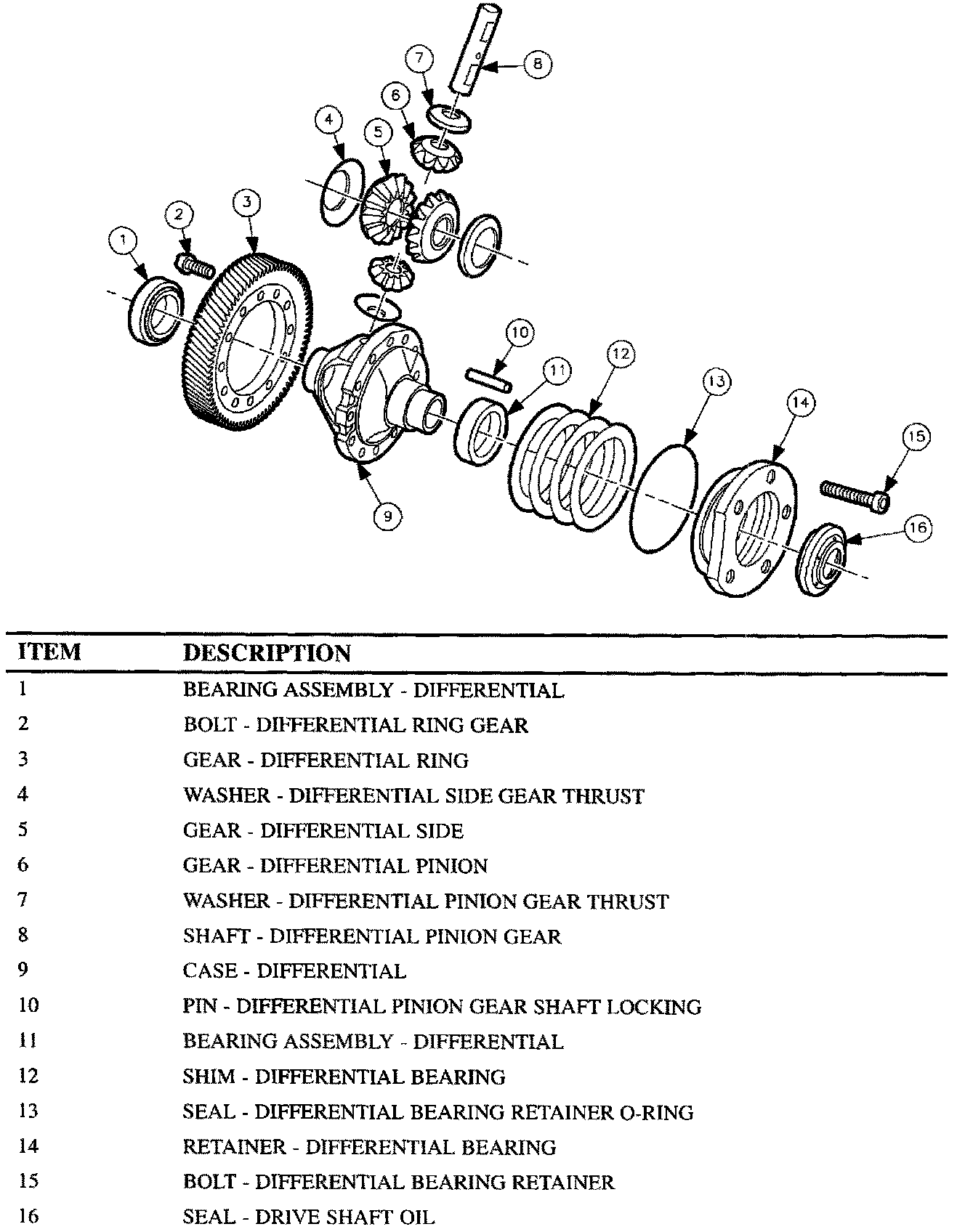

DIFFERENTIAL ASSEMBLY COMPONENTS
