Power Window Switch

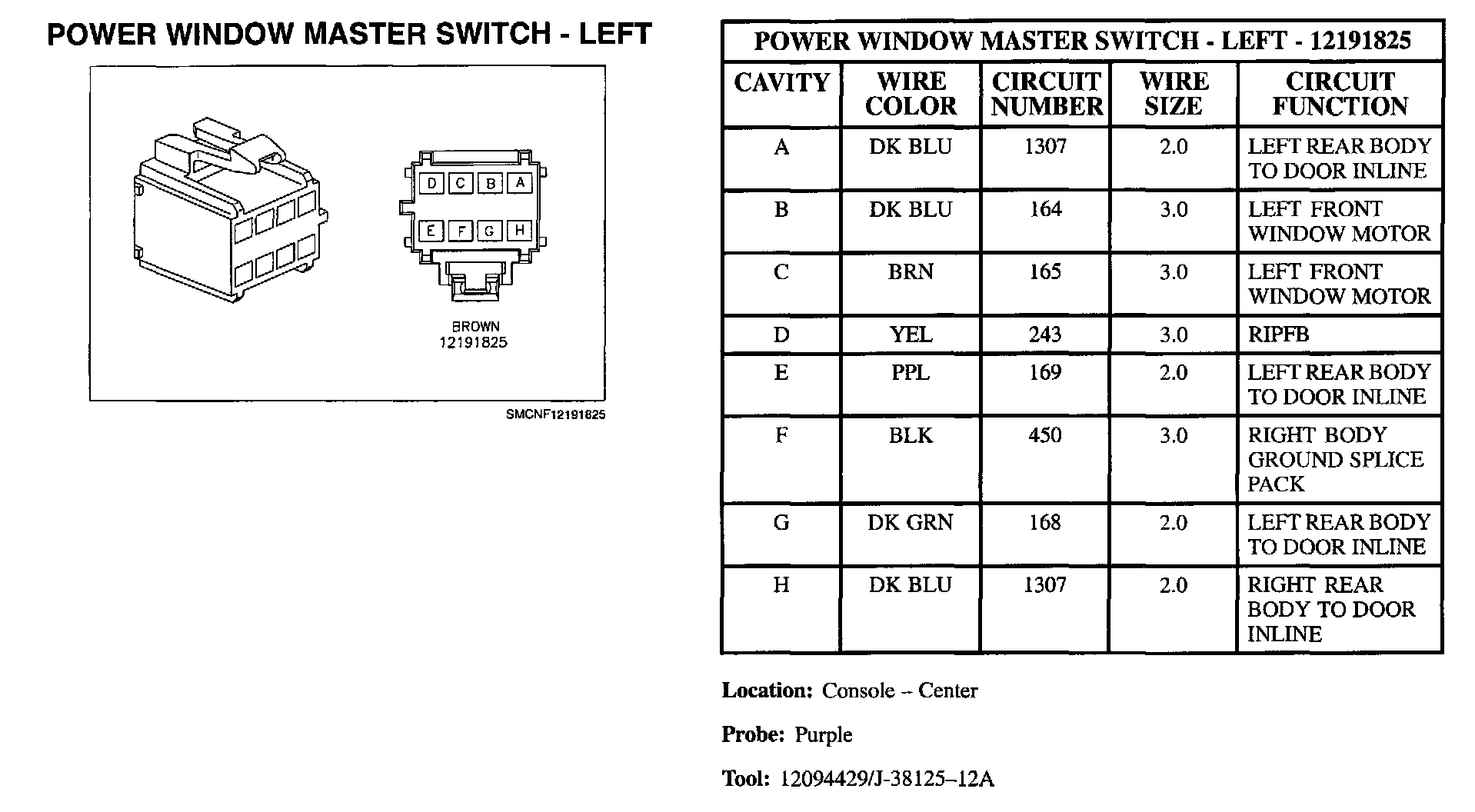

Power Window Master Switch - Left:

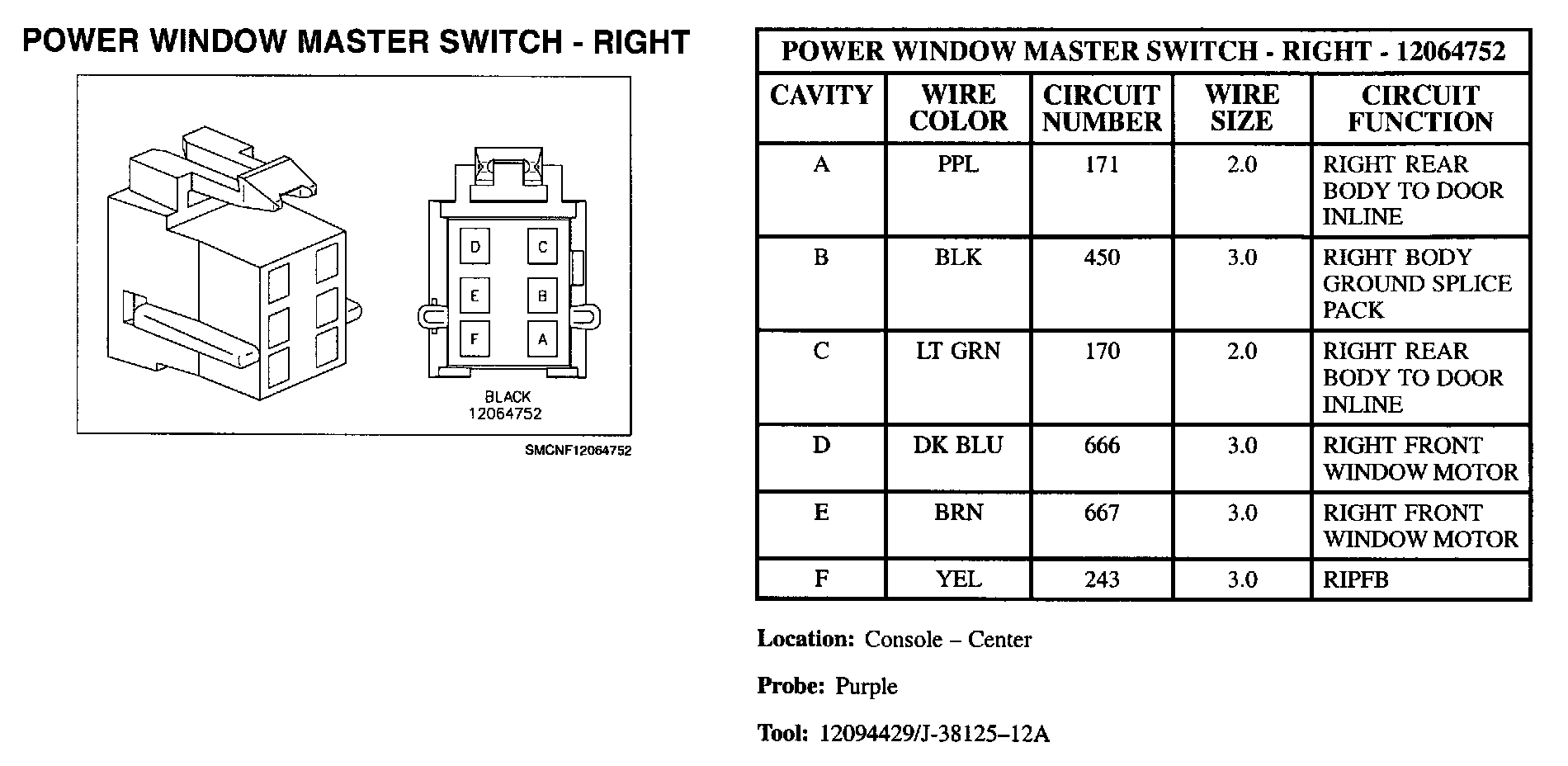

Power Window Master Switch - Right:

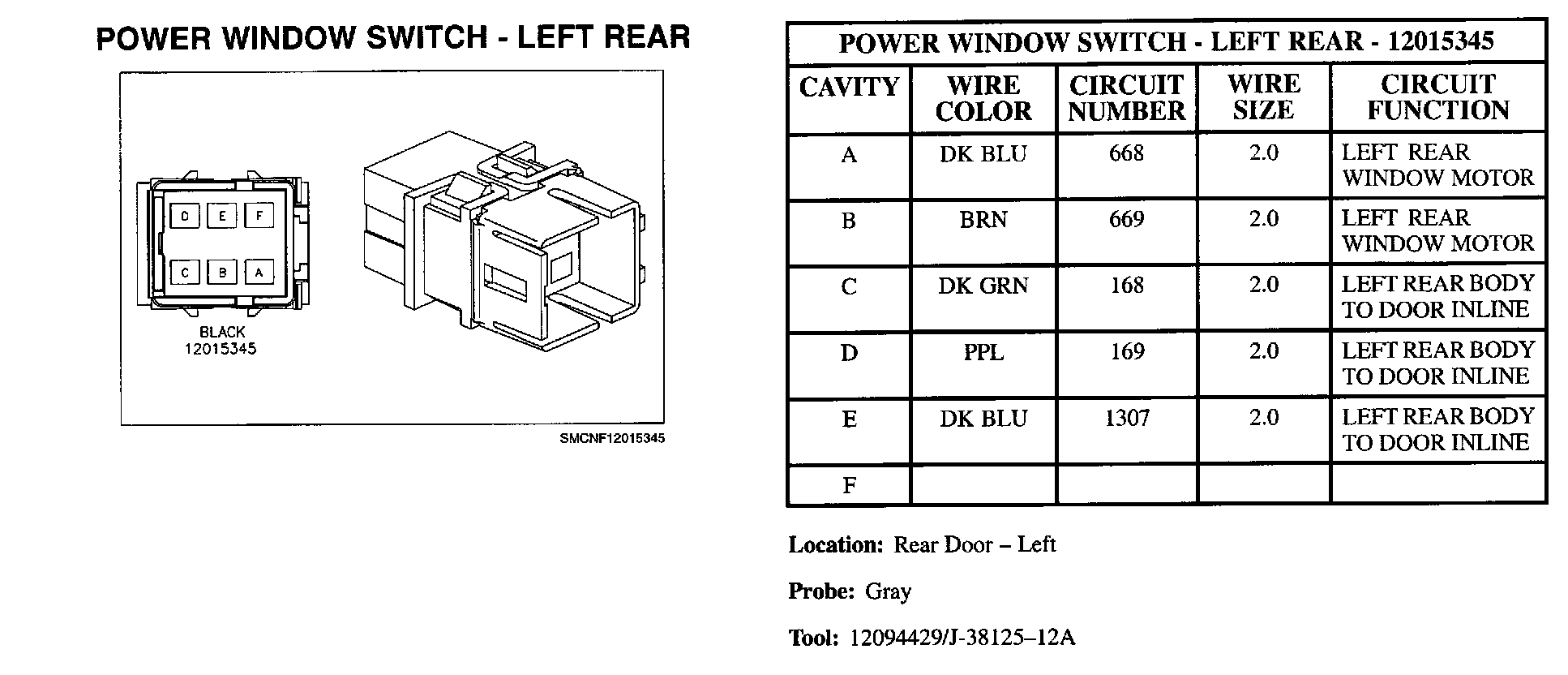

Power Window Switch - Left Rear:

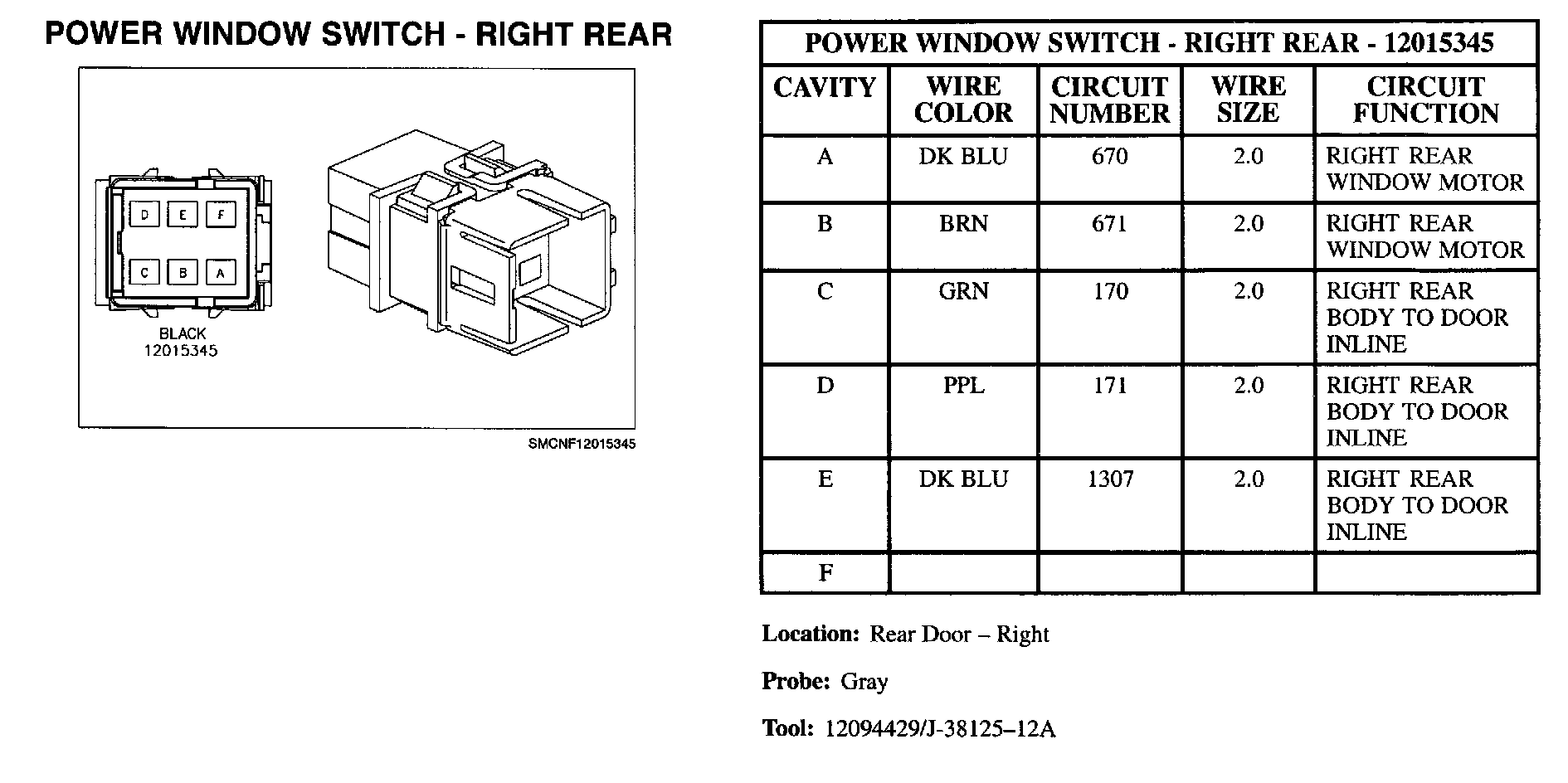

Power Window Switch - Right Rear:
