Body Control Systems

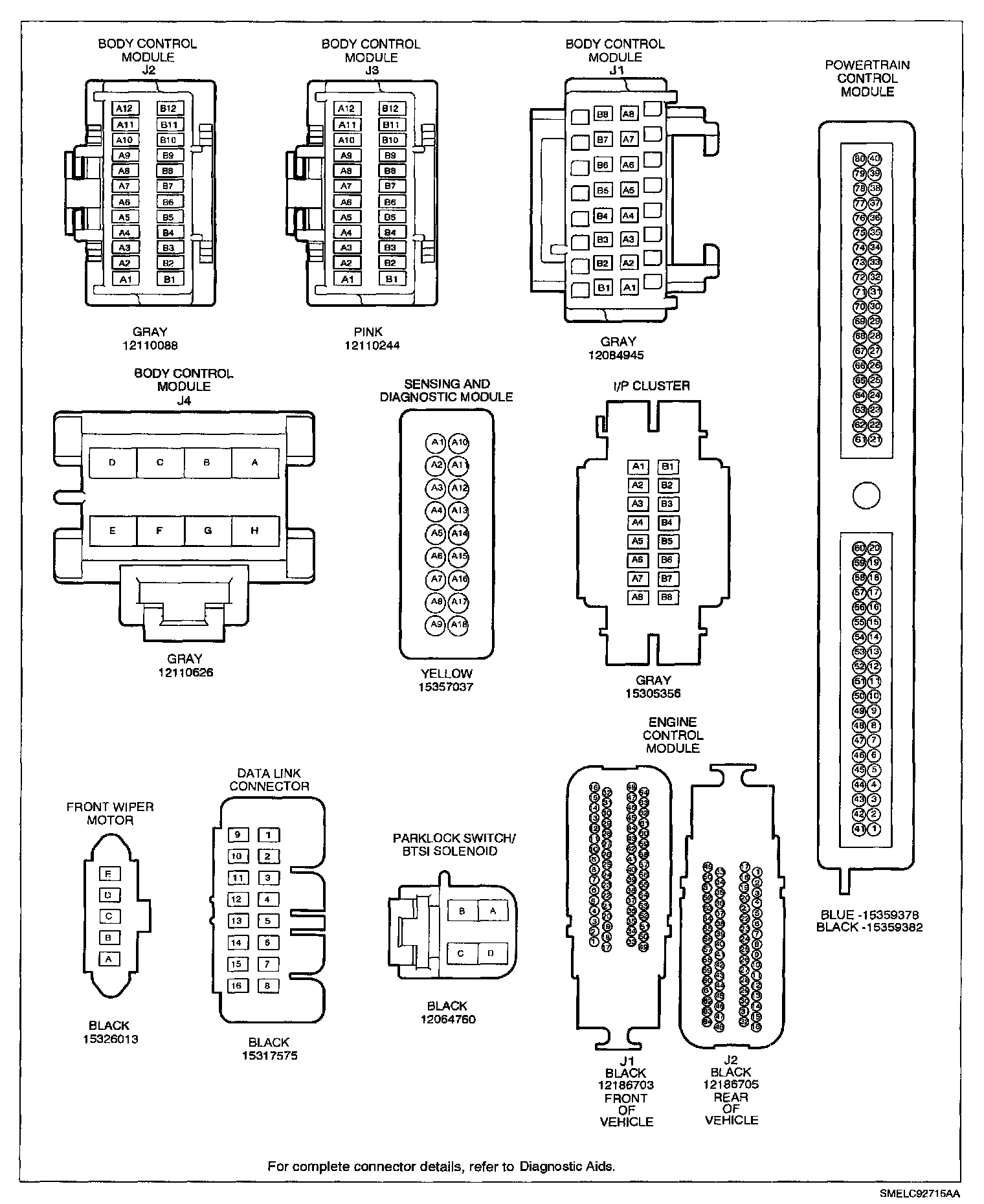

BCM Connector Face Views Part 1:

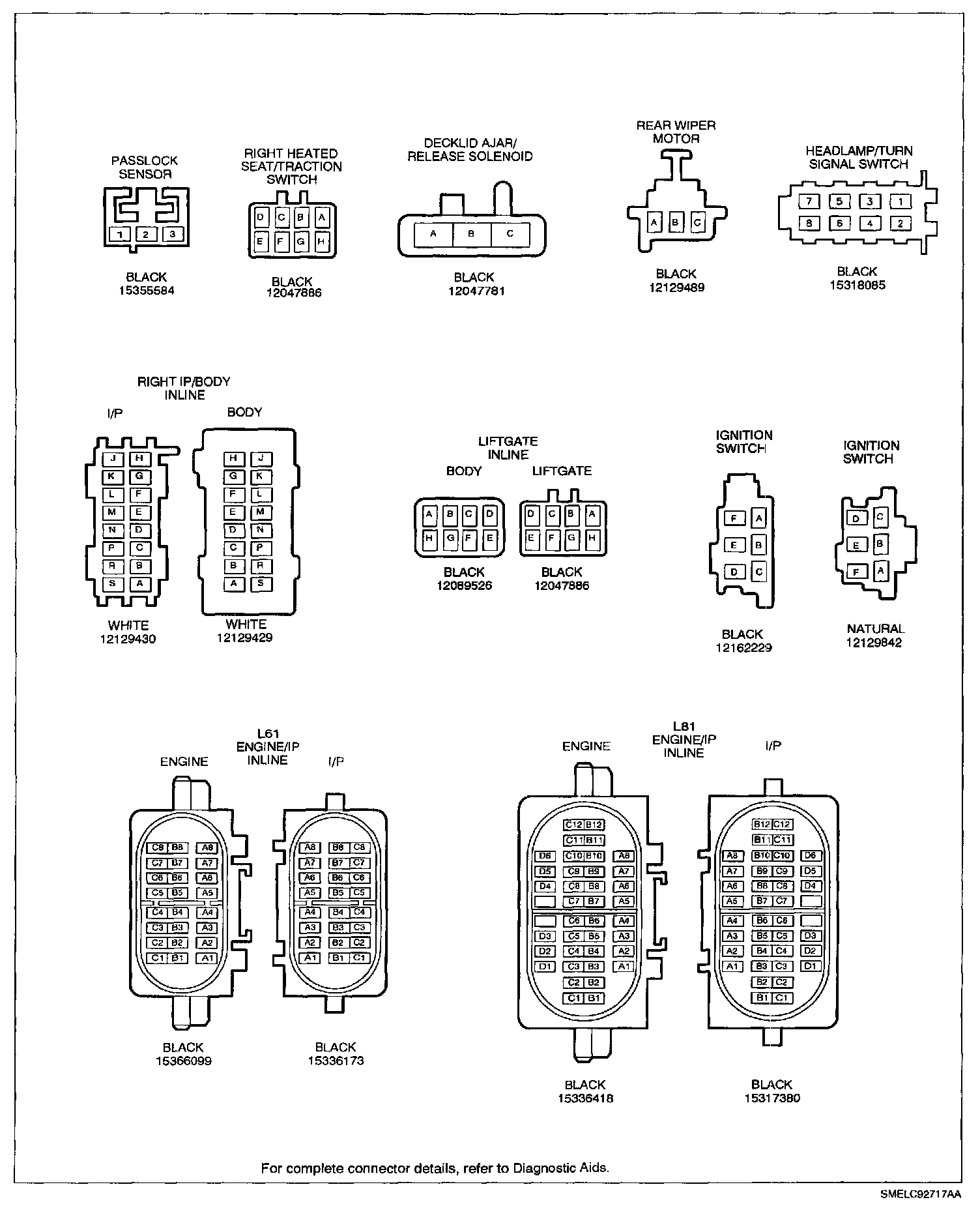

BCM Connector Face Views Part 2:

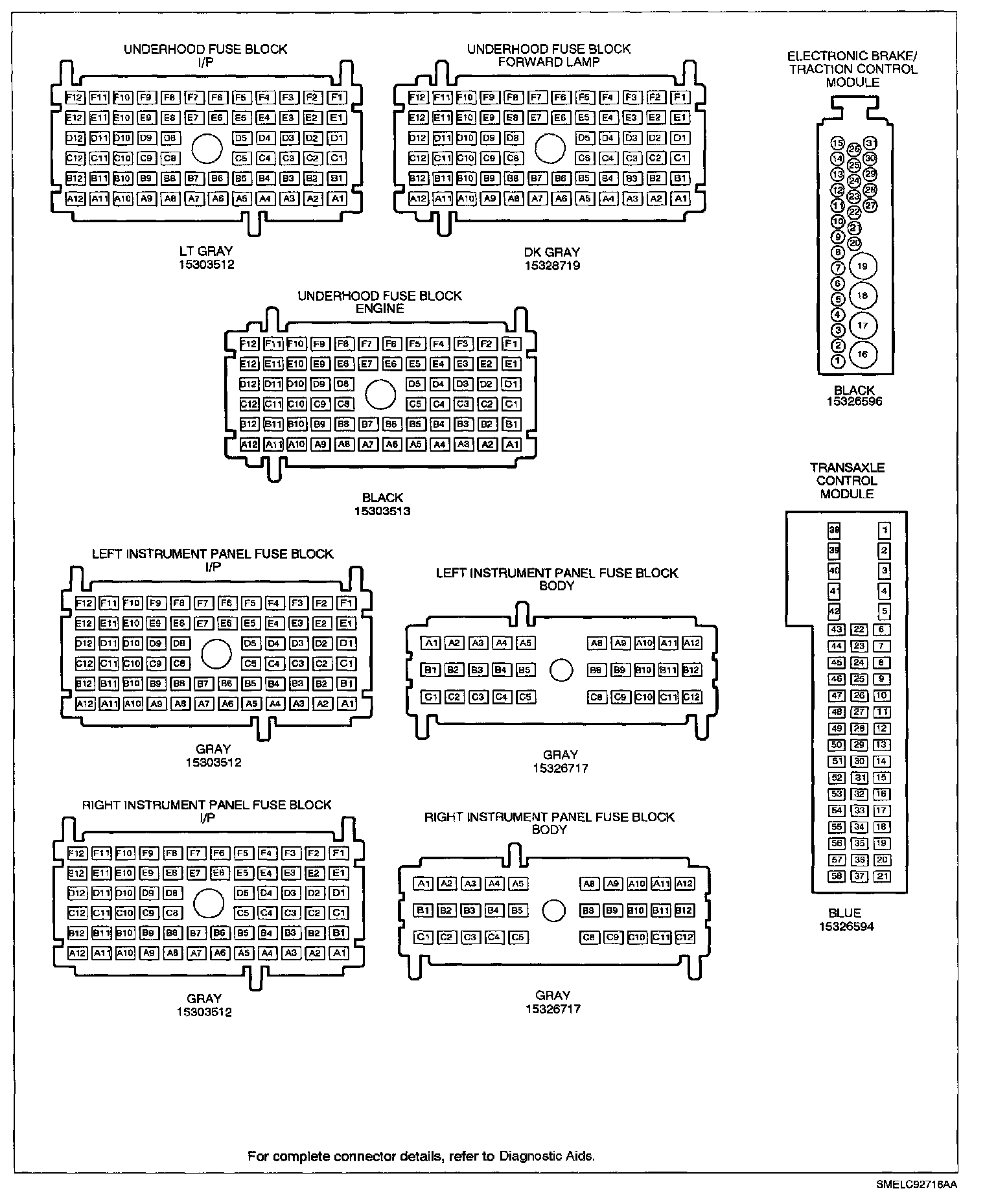

BCM Connector Face Views Part 3:
