Input Speed Sensor: Installation

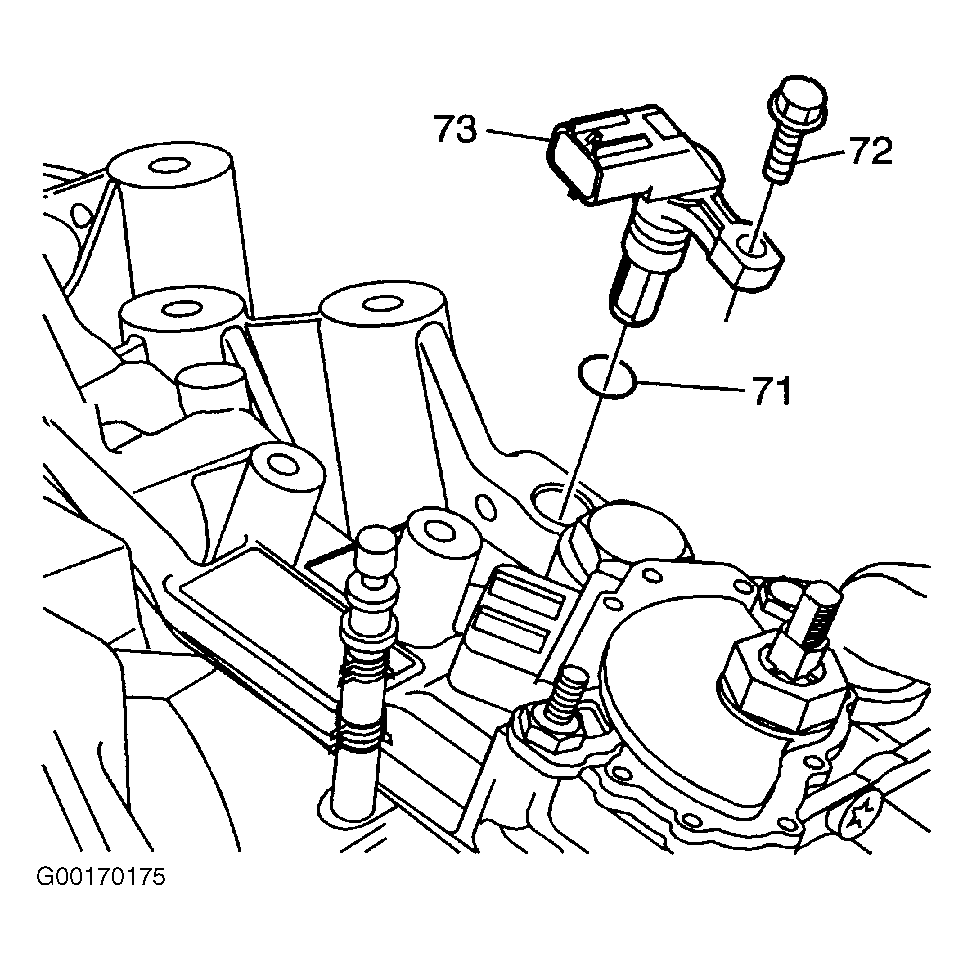

  1. Apply automatic transmission fluid to the new input speed sensor "O" ring seal (71). See Figure .
  2. Install the NEW input speed sensor "O" ring seal (71) onto the input speed sensor (73).
  3. Install the input speed sensor (73) into the transmission case assembly.
  4. Install the input speed sensor bolt (72). Tighten the input speed sensor bolt to specification. See TORQUE SPECIFICATIONS  .
