Control Cable: Installation

  1. Insert the cable through the driver's floor opening.

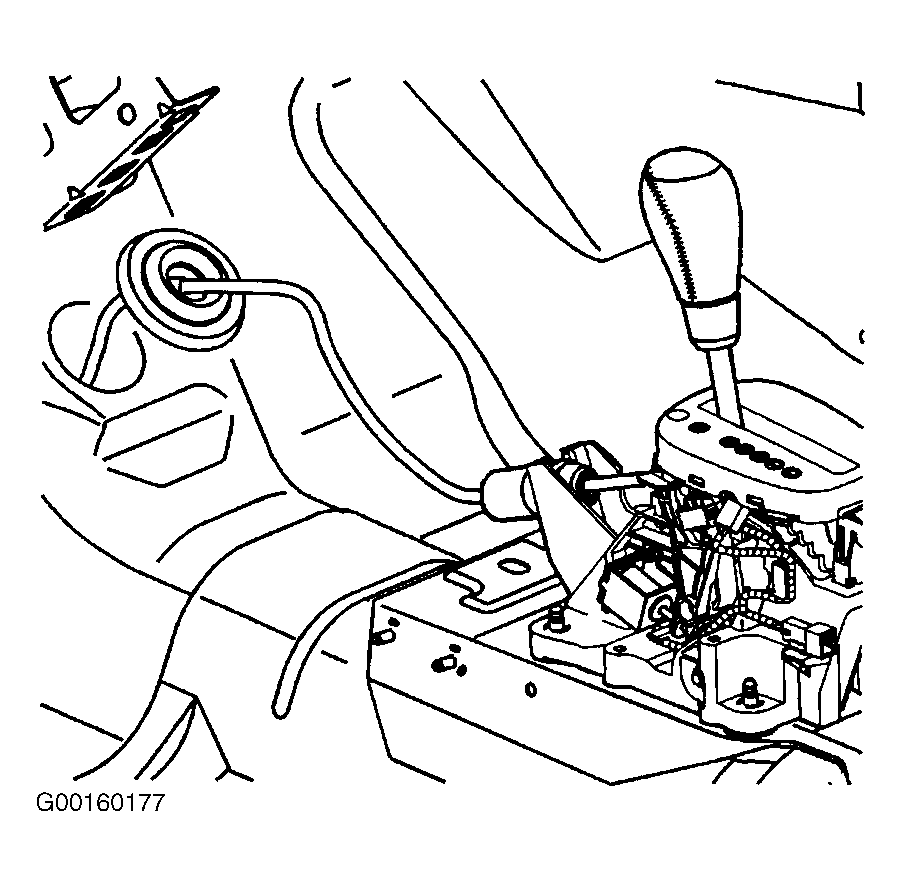

  2. Install the grommet flush with the floor opening. See Figure .
  3. Install the driver's side front carpet.

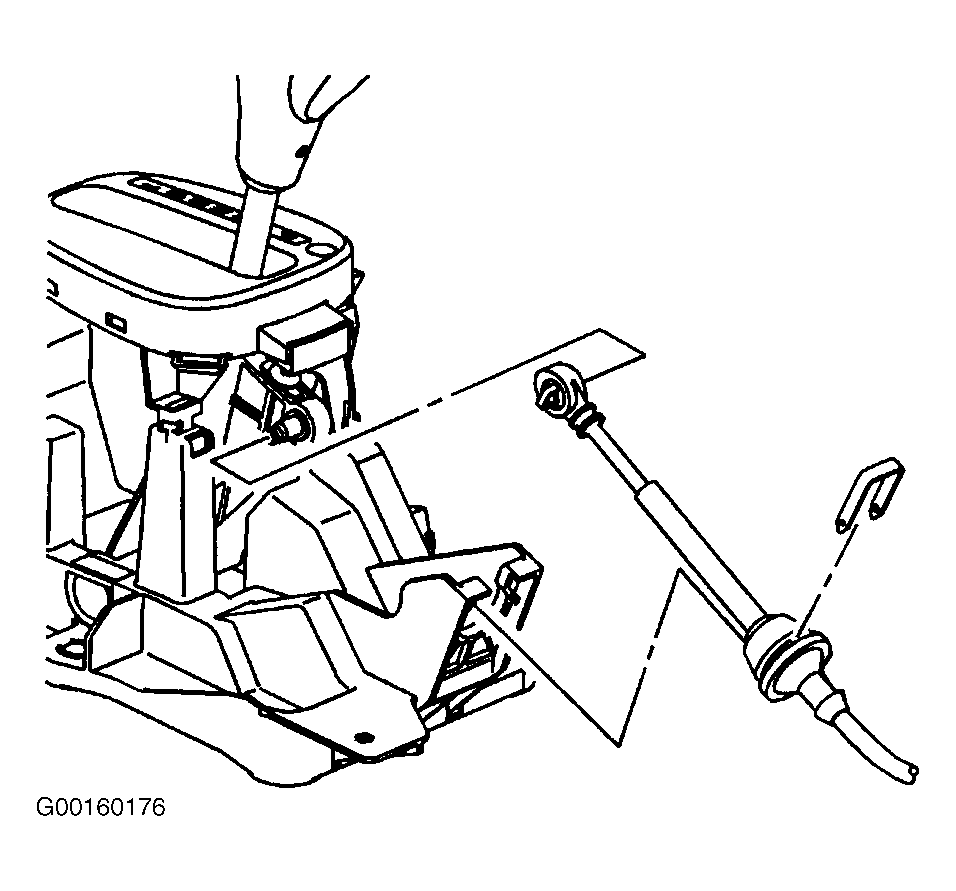

  4. Connect the shift cable to the shift control assembly. See Figure .
  5. Install the console. See CONSOLE  .

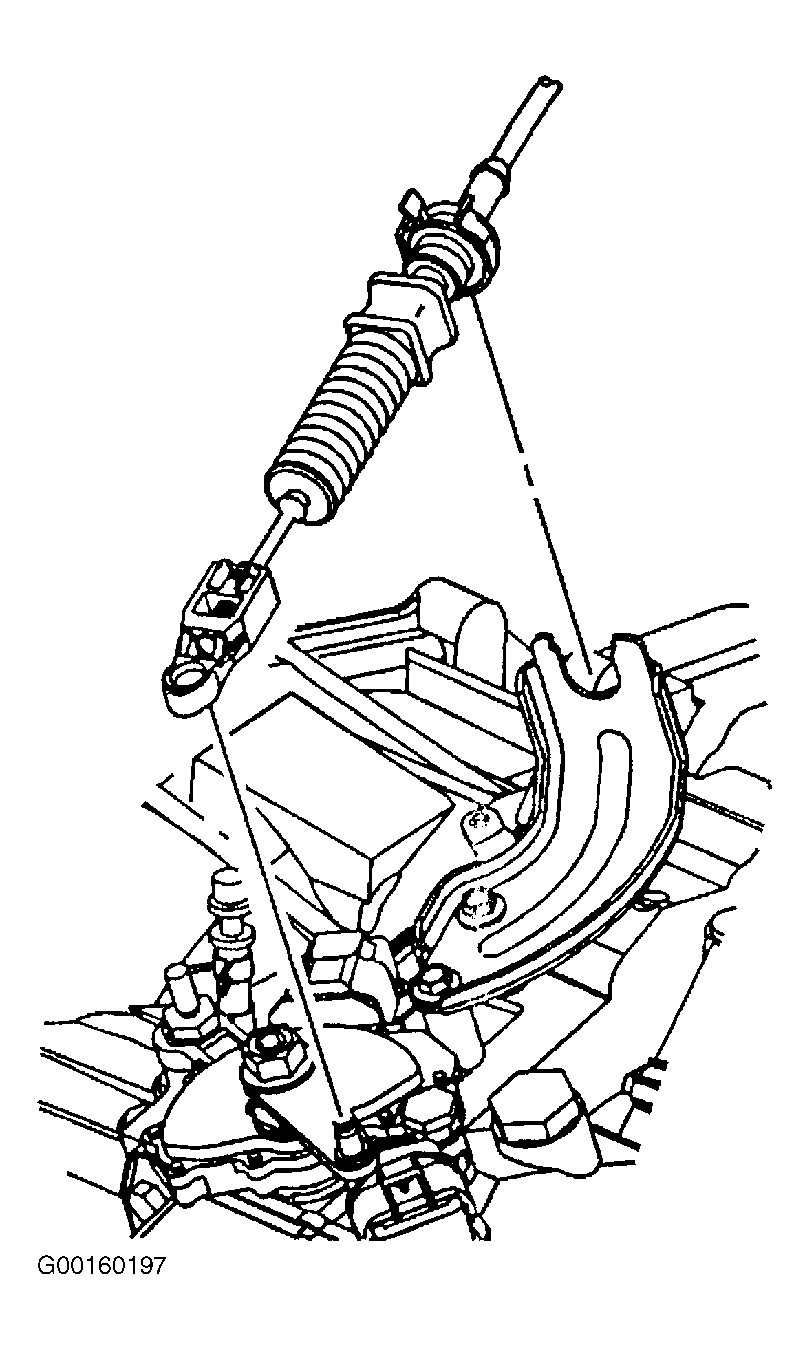

  6. Connect the shift cable to the park/neutral position switch. See Figure .
  7. Connect the shift cable to the transmission cable bracket.
  8. Raise the vehicle.
  9. Install the shift cable retaining nut near the exhaust heat shield. Tighten the nut to specification. See TORQUE SPECIFICATIONS  .
  10. Lower the vehicle.
