Servicing - A/T (AF23-5): Identification

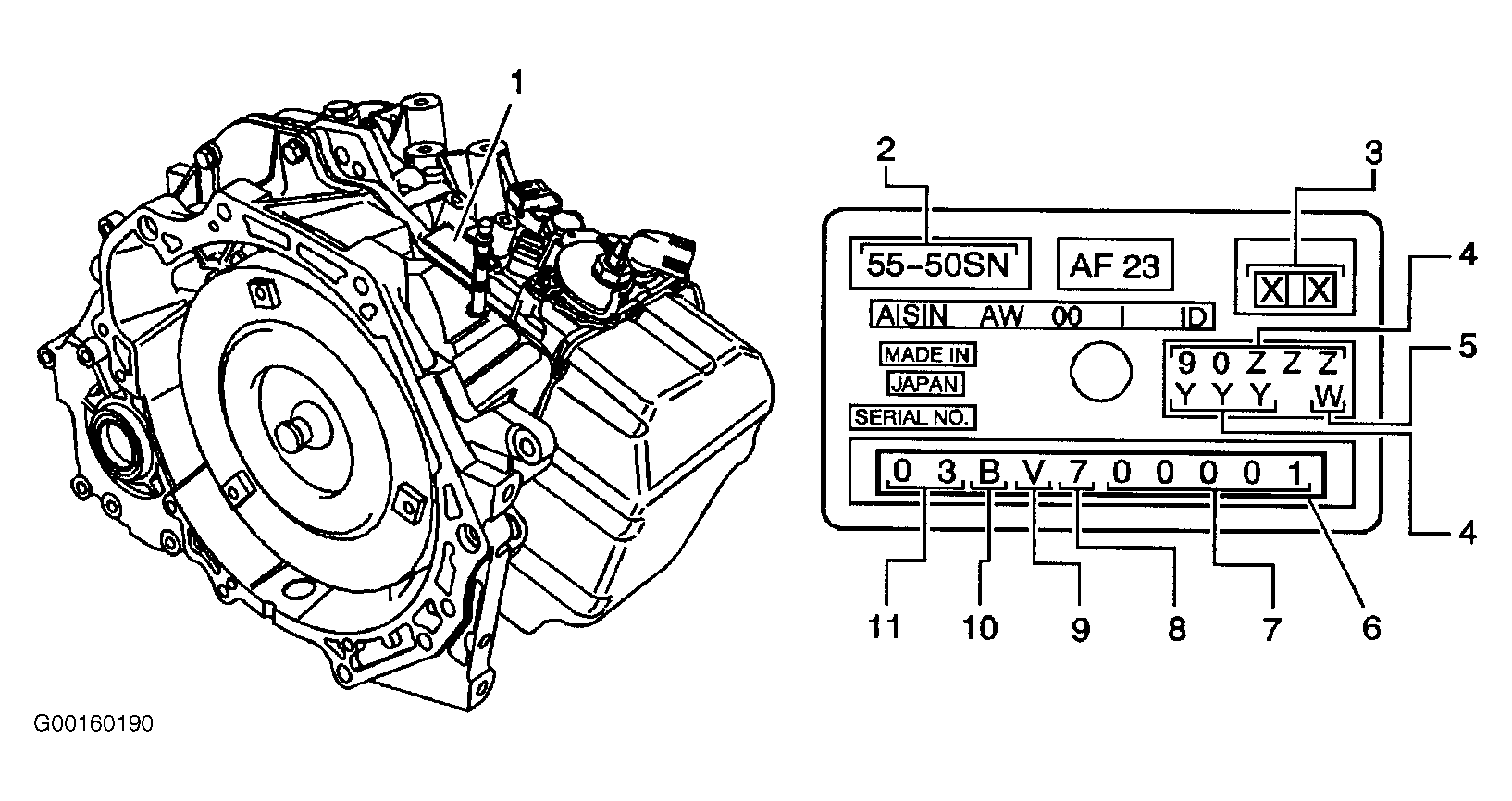

The AF23-5 (M43) identification tag (1) is located on the top of the transaxle. See Fig 1 . For a description of the information, refer to TRANSAXLE IDENTIFICATION table.
TRANSAXLE IDENTIFICATION
| No. (1) | Description | ||
|---|---|---|---|
| 1 | Transmission ID Location-Metal Tag | ||
| 2 | Model Number | ||
| 3 | GM I.D. Code | ||
| 4 | GM Part Number | ||
| 5 | Calibration Code | ||
| 6 | AW Production Unit Number | ||
| 7 | Serial Number During The Manufacture Month | ||
| 8 | Assembly Line Code | ||
| 9 | Model Of Transaxle, V = 55-50SN | ||
| 10 | Month Of Manufacture, A = Jan, B = Feb, Etc... | ||
| 11 | Year Of Manufacture, 03 = 2003 | ||
|
|||
