Transmission Range Switch Logic

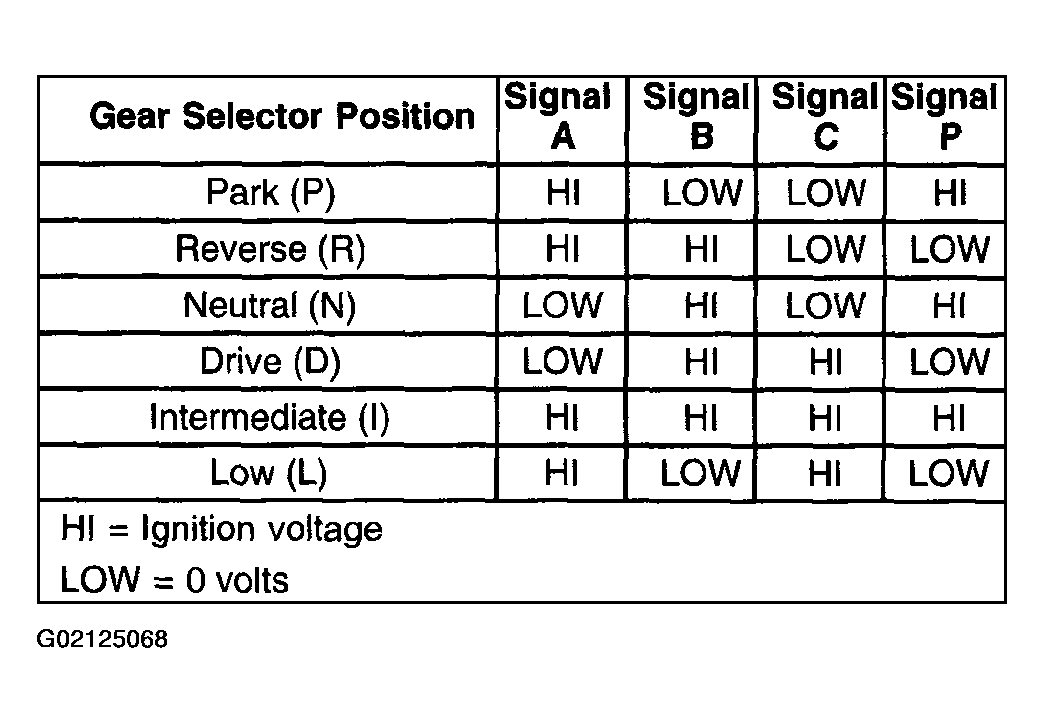

Fig 1: Transmission Range Switch Logic

G02125068

Courtesy of GENERAL MOTORS CORP.
