Range Reference

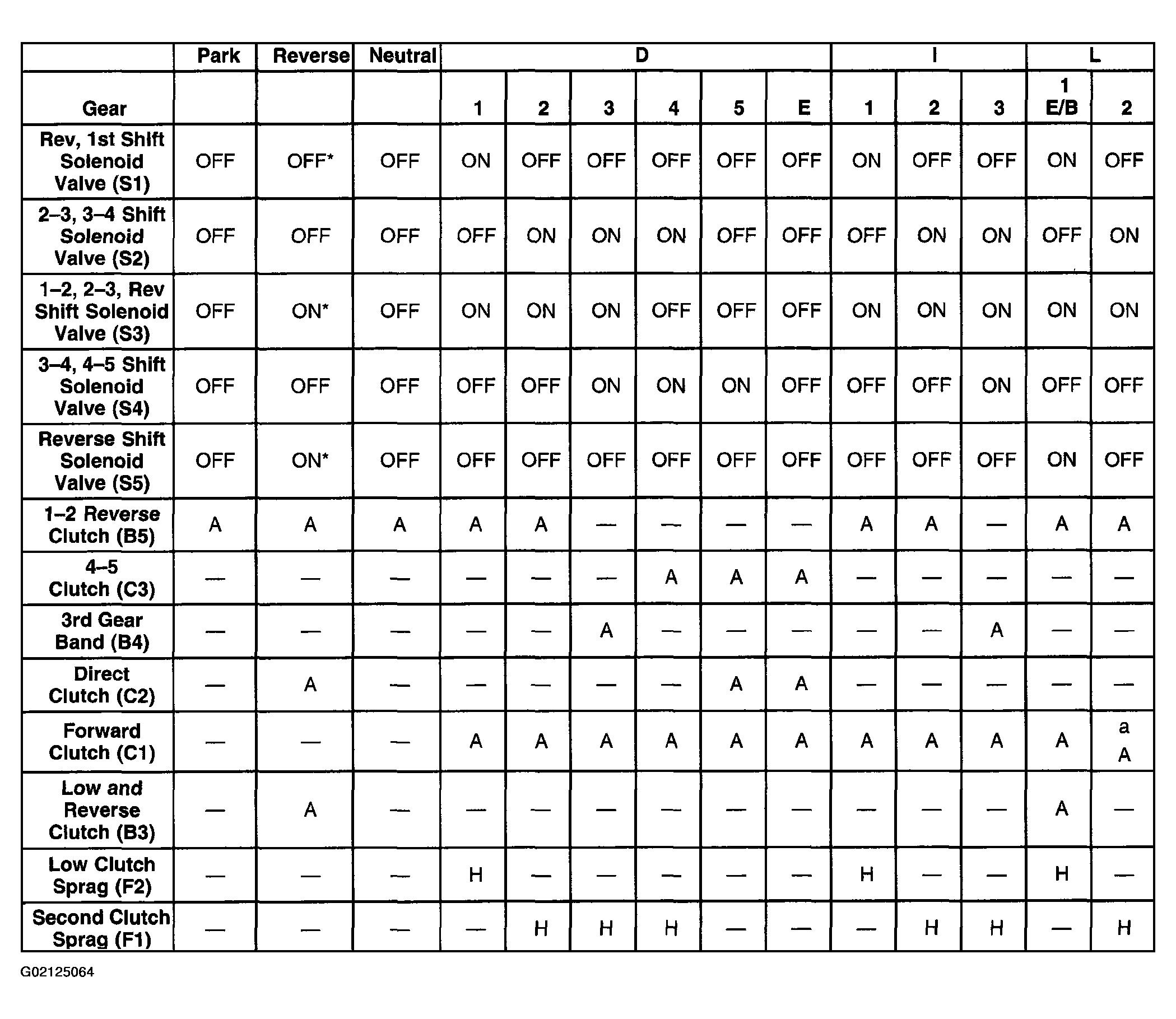

Fig 1: Range Reference (1 Of 2)
G02125064Courtesy of GENERAL MOTORS CORP.

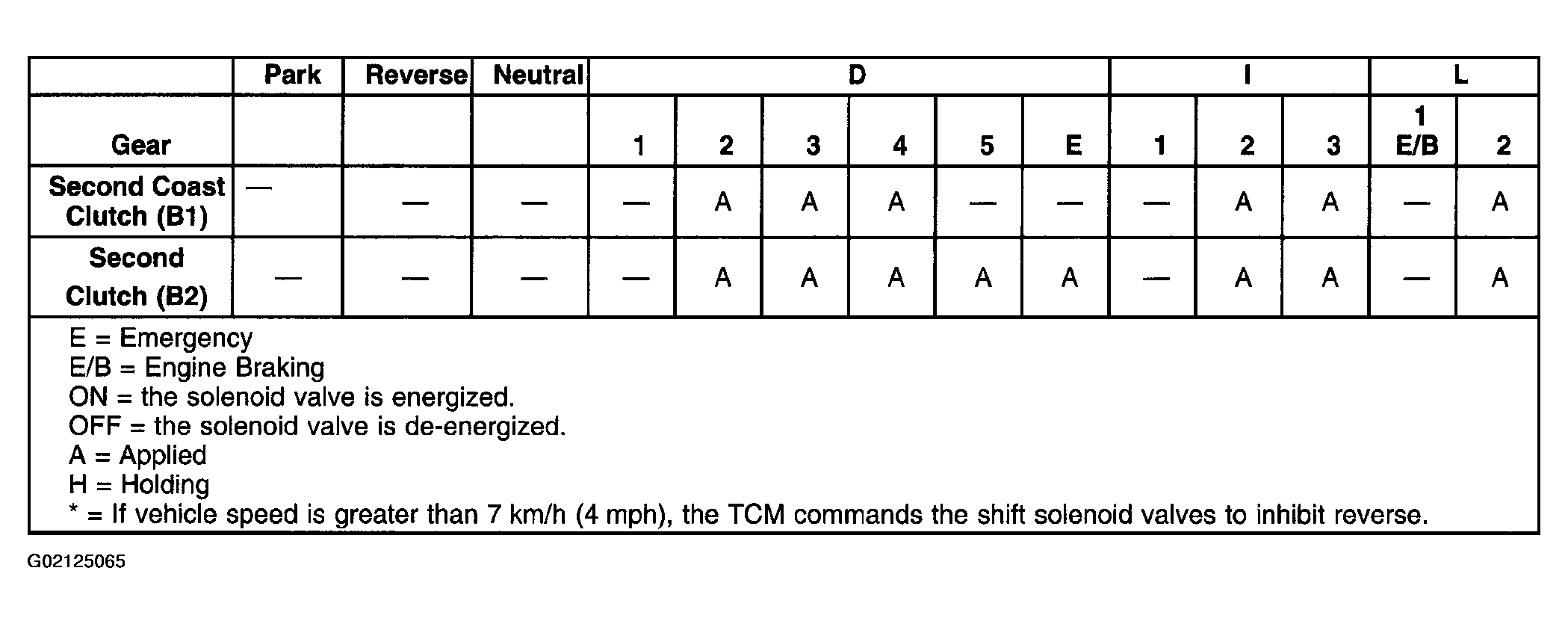

Fig 2: Range Reference (2 Of 2)
G02125065Courtesy of GENERAL MOTORS CORP.
