Component Resistance

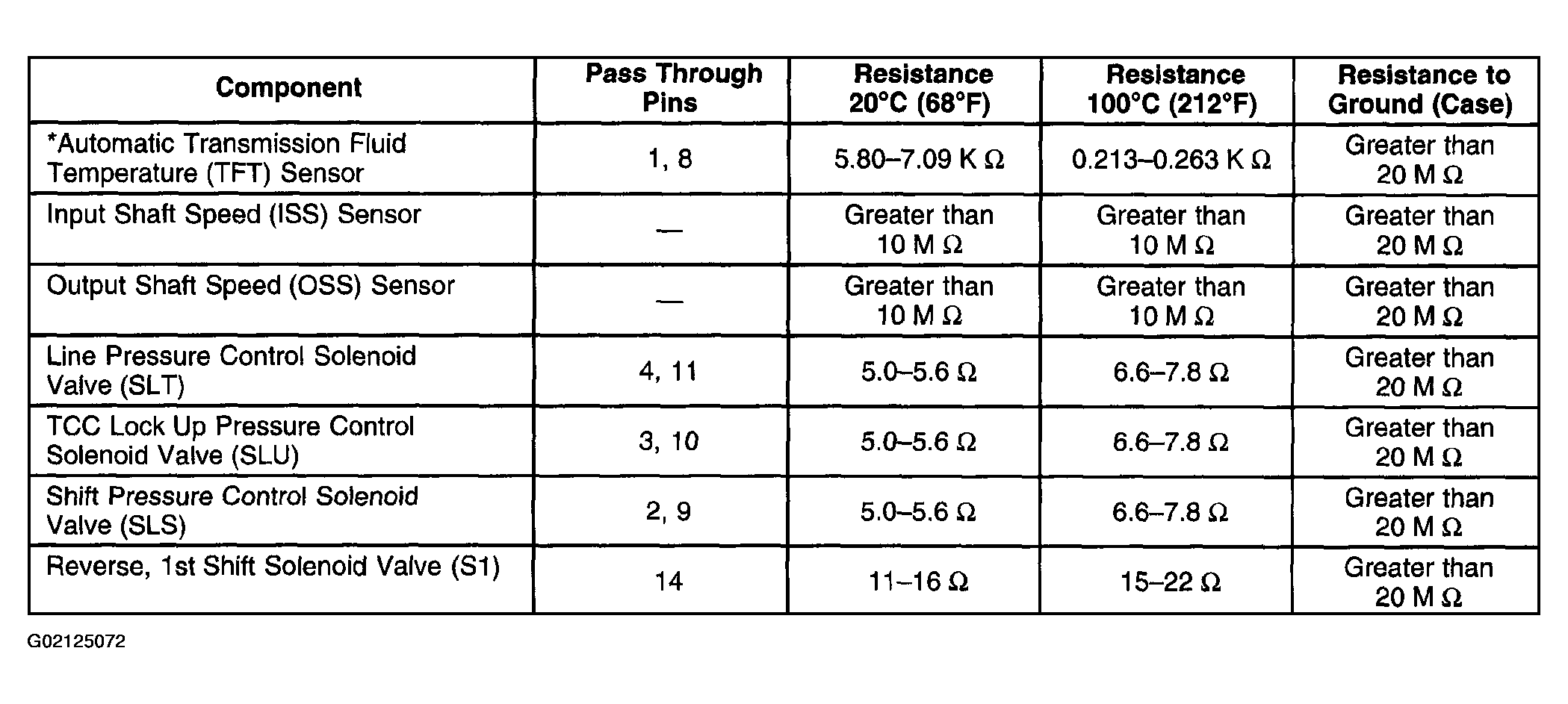

Fig 1: Component Resistance (1 Of 2)
G02125072Courtesy of GENERAL MOTORS CORP.

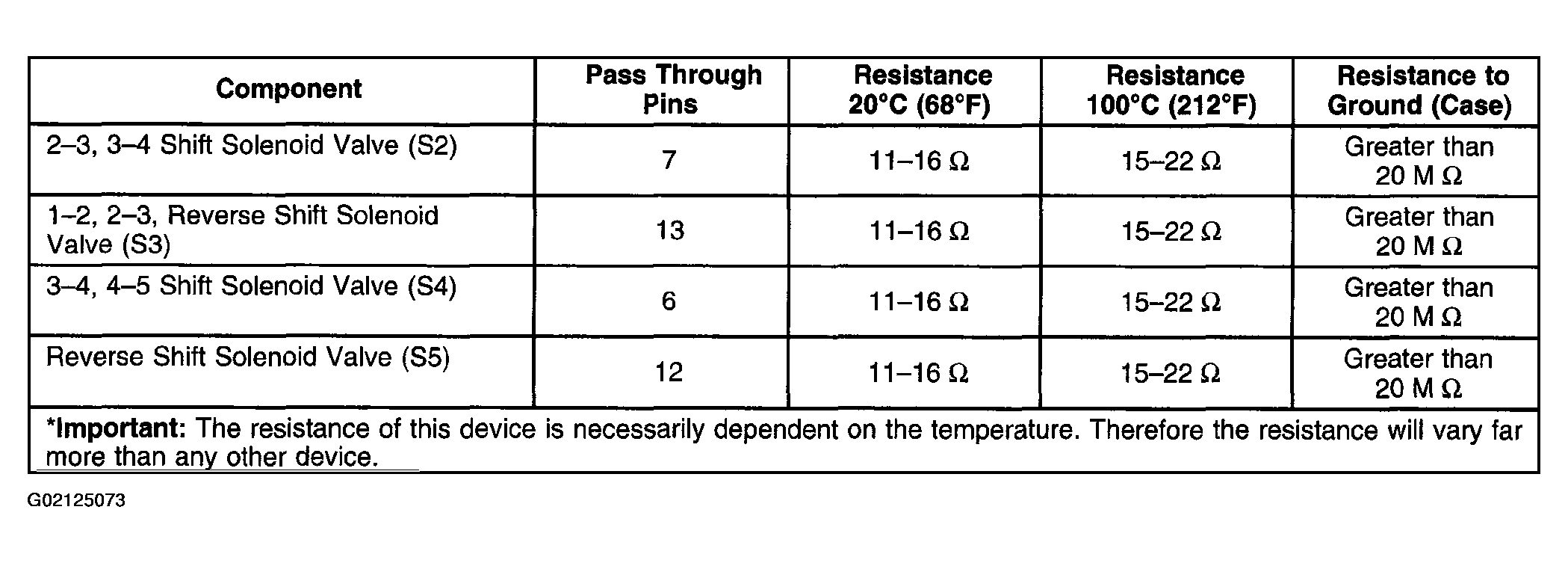

Fig 2: Component Resistance (2 Of 2)
G02125073Courtesy of GENERAL MOTORS CORP.
