Control Valve Body Cover Installation

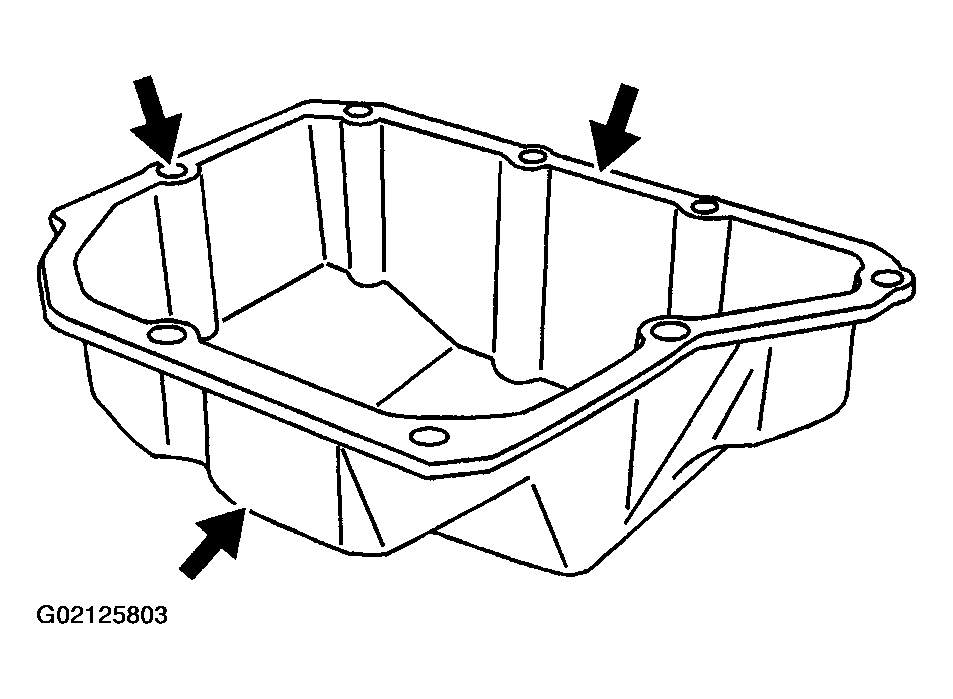

  1. Clean any gasket material from the control valve body cover and inspect the gasket mounting surface.
    Fig 1: Inspecting Gasket Mounting Surface
    G02125803Courtesy of GENERAL MOTORS CORP.

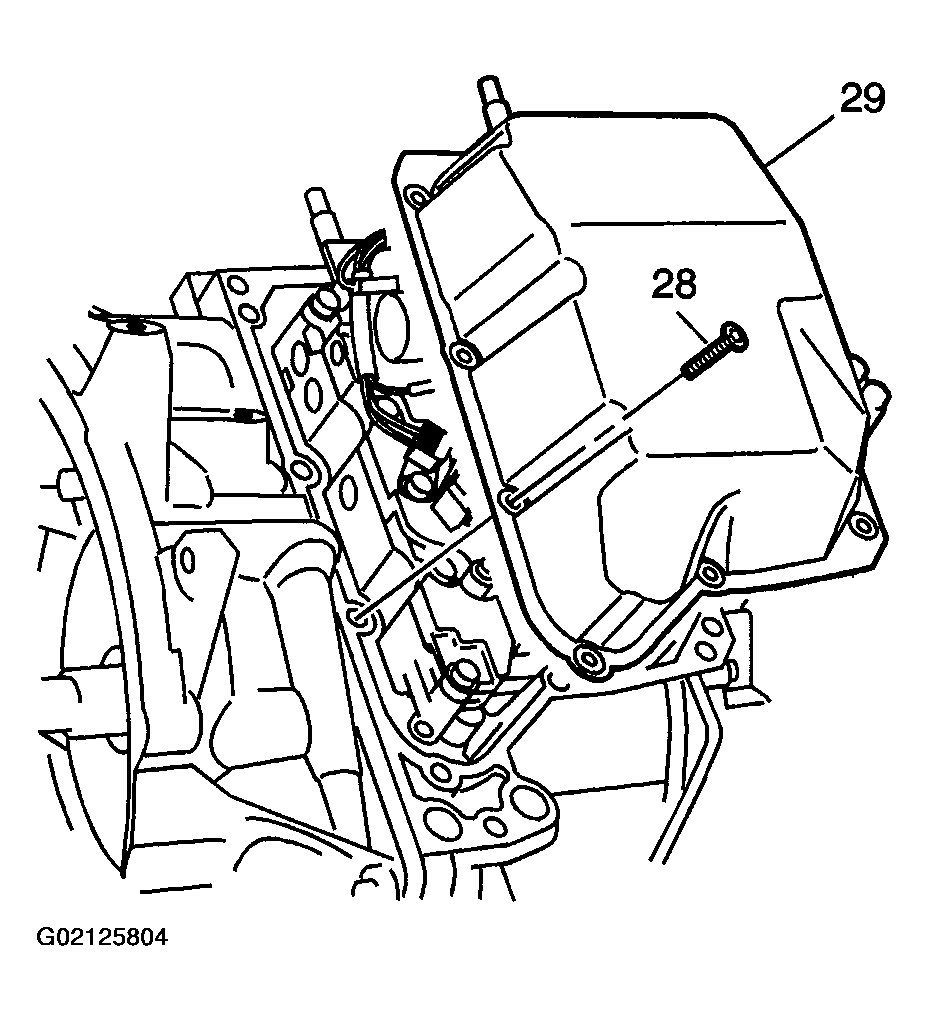

  2. Install the control valve body cover (29) onto the transmission case assembly.

    Important:  Use LOCTITE™ 242 thread sealer on ALL bolt threads.

  3. Install the 9 - M8 x 1.25 x 15.5 mm control valve body cover bolts/screws (28).
    Fig 2: Installing Control Valve Body Cover & Bolts
    G02125804Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

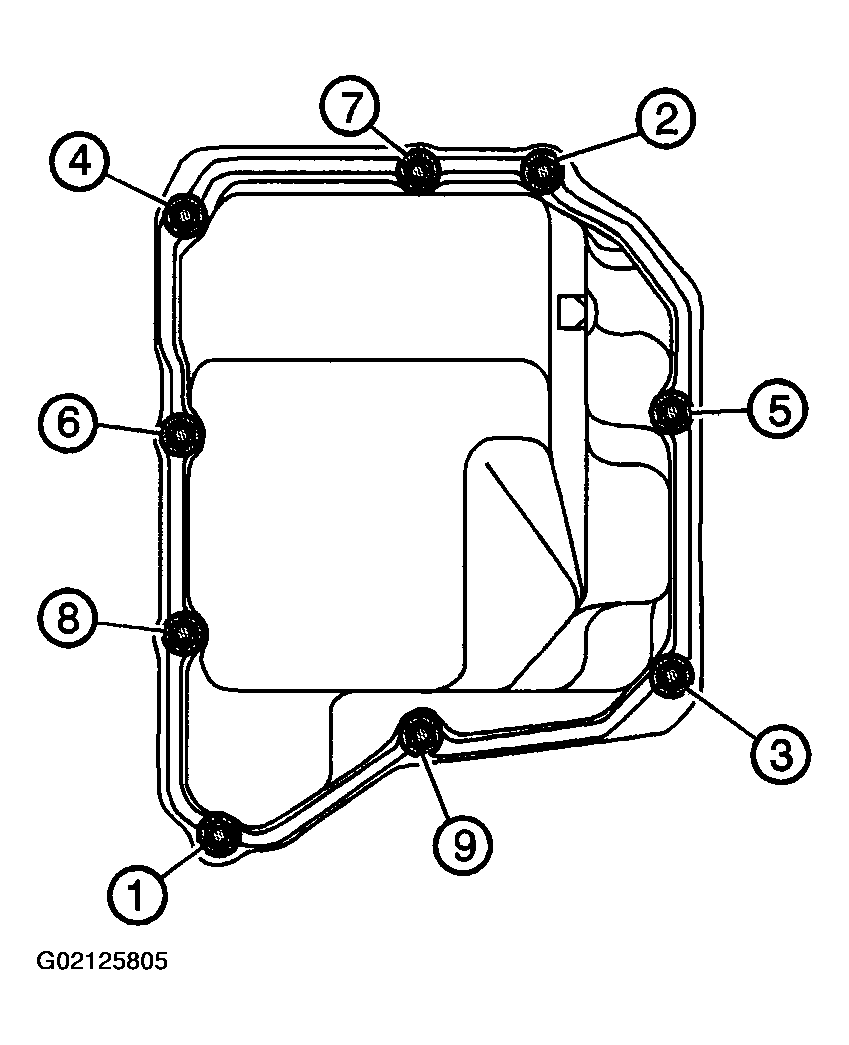

  4. Tighten the 9 control valve body cover bolts/screws in sequence.

    Tighten

    Tighten the control valve body cover bolts/screws to 9.8-15.7 N.m (86.76-138.0 lb in).

    Fig 3: Tightening Control Valve Body Cover Bolts In Sequence
    G02125805Courtesy of GENERAL MOTORS CORP.
